Lexus ES (XZ10) Service Manual / Vehicle Exterior / Door / Hatch / Luggage Compartment Door Opener Inner Switch / Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT DOOR SCUFF PLATE LH

Click here

2. REMOVE COWL SIDE TRIM BOARD LH

Click here

3. REMOVE FRONT DOOR OPENING TRIM COVER LH

Click here

4. REMOVE INSTRUMENT SIDE PANEL LH

Click here

5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click here

7. REMOVE LUGGAGE DOOR OPENING SWITCH (TRUNK AND FUEL SWITCH ASSEMBLY)

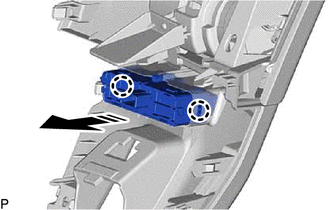

(a) Disengage the 2 claws to remove the luggage door opening switch (trunk and fuel switch assembly) as shown in the illustration.

Remove in this Direction
