Lexus ES: Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL REAR BUMPER REINFORCEMENT

Click here

2. INSTALL REAR BUMPER PROTECTOR INSERT LH

Click here

3. INSTALL REAR BUMPER PROTECTOR INSERT RH

HINT:

Use the same procedure as for the LH side.

4. INSTALL REAR BUMPER PROTECTOR LH

Click here

5. INSTALL REAR BUMPER PROTECTOR RH

HINT:

Use the same procedure as for the LH side.

6. INSTALL REAR BUMPER ENERGY ABSORBER

Click here

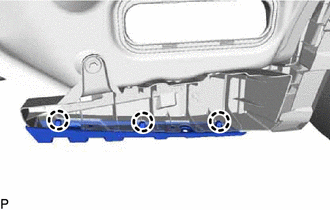

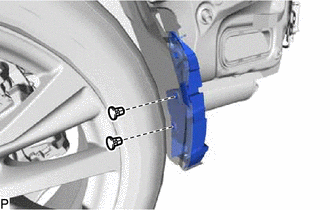

7. INSTALL REAR BUMPER SIDE SUPPORT LH

(a) Install the 2 clips.

(b) Install the rear bumper side support LH with 2 new grommets.

8. INSTALL REAR BUMPER SIDE SUPPORT RH

HINT:

Use the same procedure as for the LH side.

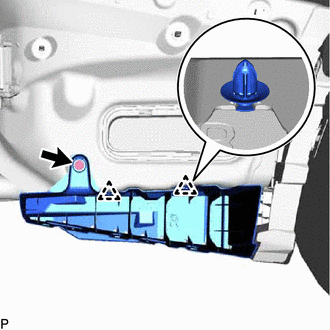

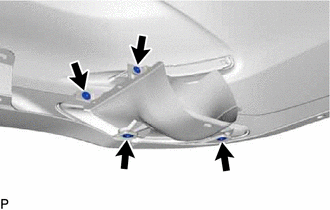

9. INSTALL LOWER REAR BUMPER SIDE RETAINER RH

(a) Engage the 2 clips.

(b) Install the lower rear bumper side retainer RH with the screw.

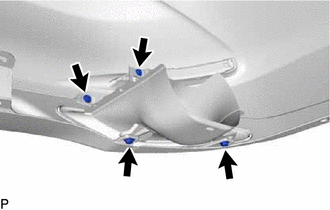

10. INSTALL LOWER REAR BUMPER SIDE RETAINER LH

(a) Engage the 2 clips.

(b) Install the lower rear bumper side retainer LH with the screw.

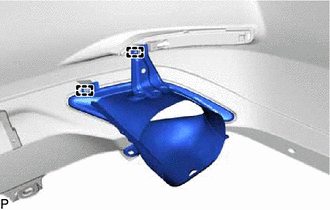

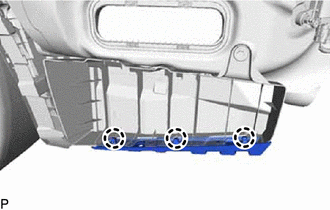

11. INSTALL NO. 2 REAR BUMPER SIDE RETAINER RH (for TMC Made)

(a) Engage the 3 claws to install the No. 2 rear bumper side retainer RH.

12. INSTALL NO. 2 REAR BUMPER SIDE RETAINER LH (for TMC Made)

(a) Engage the 3 claws to install the No. 2 rear bumper side retainer LH.

13. INSTALL REAR BUMPER UPPER RETAINER LH

Click here

14. INSTALL REAR BUMPER UPPER RETAINER RH

HINT:

Use the same procedure as for the LH side.

15. INSTALL LUGGAGE COMPARTMENT TRIM INNER COVER LH

Click here

16. INSTALL LUGGAGE COMPARTMENT TRIM INNER COVER RH

Click here

17. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH

Click here

18. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH

Click here

19. INSTALL REAR FLOOR FINISH PLATE

Click here

20. INSTALL SPARE WHEEL COVER TRAY

Click here

21. INSTALL LUGGAGE COMPARTMENT FLOOR MAT

Click here

22. INSTALL NO. 2 REAR BUMPER SIDE SUPPORT LH

Click here

23. INSTALL NO. 2 REAR BUMPER SIDE SUPPORT RH

HINT:

Use the same procedure as for the LH side.

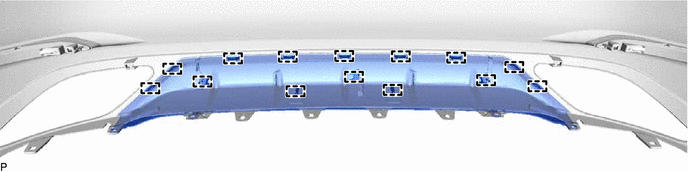

24. INSTALL CENTER REAR BUMPER EXTENSION SUB-ASSEMBLY (for Mesh Type Radiator Grille)

(a) Engage the 14 guides to install the center rear bumper extension sub-assembly.

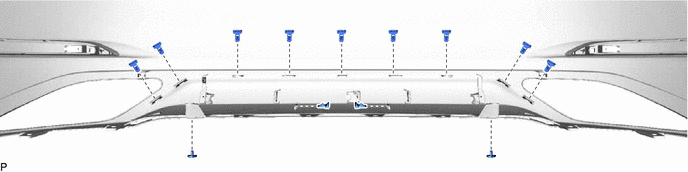

(b) Install the 2 clips and 9 outside moulding retainers.

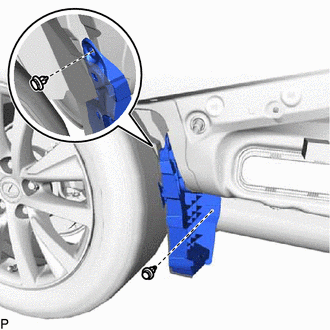

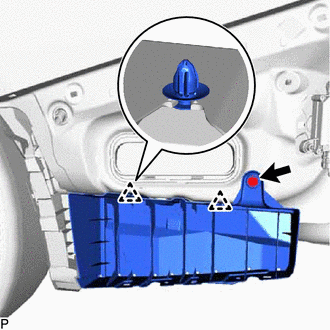

25. INSTALL REAR BUMPER EXTENSION SUB-ASSEMBLY LH

(a) Engage the 2 guides.

(b) Install 4 new grommets.

(c) Install the rear bumper extension sub-assembly with the 4 screws.

26. INSTALL REAR BUMPER EXTENSION SUB-ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

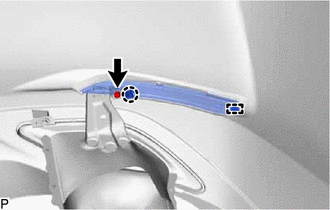

27. INSTALL REFLEX REFLECTOR ASSEMBLY LH

(a) Engage the guide and claw.

(b) Install the reflex reflector assembly LH with the screw.

28. INSTALL REFLEX REFLECTOR ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

29. INSTALL REAR BUMPER PAD RH

Click here

30. INSTALL REAR BUMPER PAD LH

Click here

31. INSTALL NO. 1 MOULDING TAPE

Click here

32. INSTALL ULTRASONIC SENSOR CLIP (w/ Wire Harness)

Click here

33. INSTALL NO. 2 LUGGAGE ROOM WIRE (w/ Wire Harness)

Click here

34. INSTALL REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Alert System)

Click here

HINT:

Use the same procedure for the RH side and LH side.

35. INSTALL REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Alert System)

Click here

HINT:

Use the same procedure for the RH side and LH side.

36. INSTALL REAR CORNER ULTRASONIC SENSOR (w/ Parking Support Alert System)

Click here

HINT:

Use the same procedure for the RH side and LH side.

37. INSTALL REAR CENTER ULTRASONIC SENSOR (w/ Parking Support Alert System)

Click here

HINT:

Use the same procedure for the RH side and LH side.

38. INSTALL KICK DOOR CONTROL SENSOR WITH BRACKET (w/ Hands Free Power Trunk Lid)

Click here
