Lexus ES: Parts Location

PARTS LOCATION

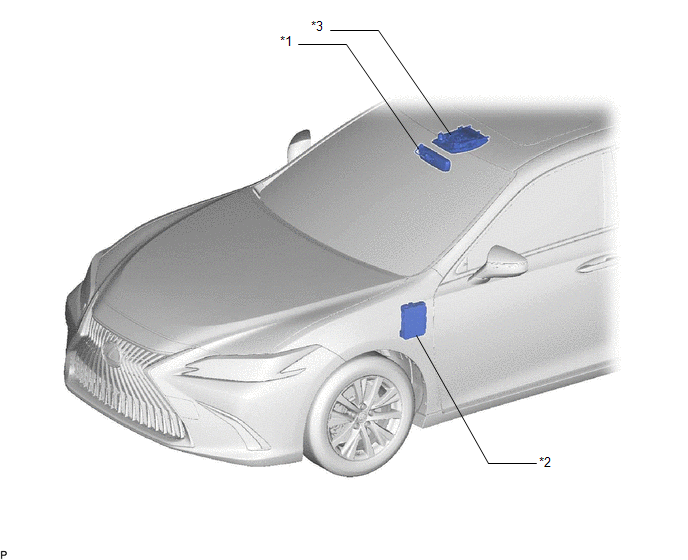

ILLUSTRATION

*1

INNER REAR VIEW MIRROR ASSEMBLY

- GARAGE DOOR OPENER

*2

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-B NO. 2 FUSE

- ECU-IG1 NO. 3 FUSE

*3

MAP LIGHT ASSEMBLY

-

-
