PARTS LOCATION

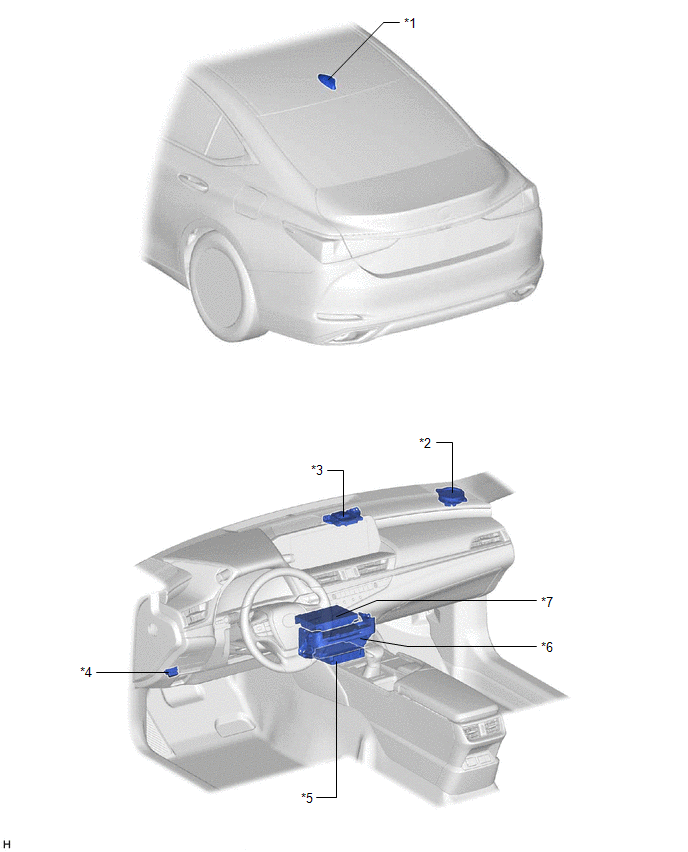

ILLUSTRATION

*1

ROOF ANTENNA ASSEMBLY

- GPS

- Telephone Main

*2

FRONT NO. 2 SPEAKER ASSEMBLY RH

*3

NAVIGATION ANTENNA ASSEMBLY

- Telephone Sub

*4

DLC3

*5

DCM (TELEMATICS TRANSCEIVER)

*6

RADIO RECEIVER ASSEMBLY

*7

NAVIGATION ECU (w/ Navigation System)

-

-
