PARTS LOCATION

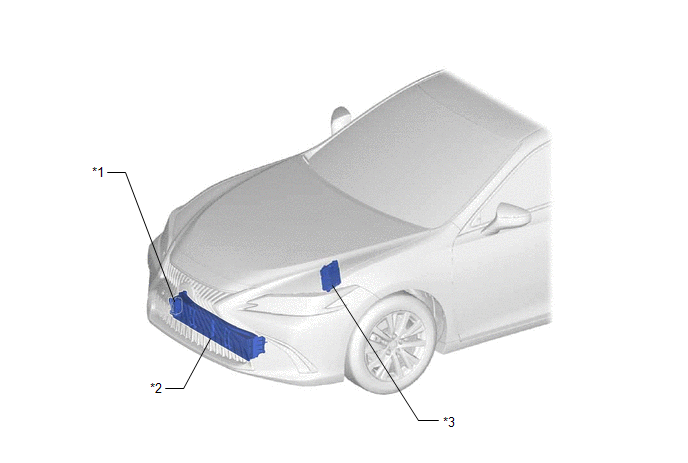

ILLUSTRATION
| *1 | SWING GRILLE ACTUATOR ASSEMBLY | *2 | RADIATOR SHUTTER SUB-ASSEMBLY |
| *3 | ECM | - | - |

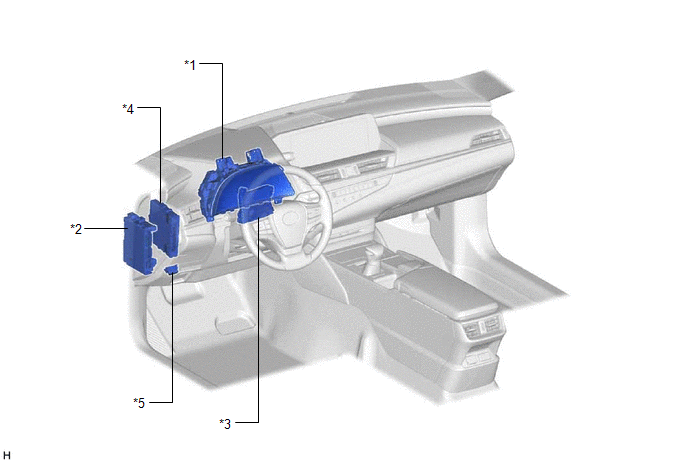

ILLUSTRATION
| *1 | COMBINATION METER ASSEMBLY | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE |
| *3 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *4 | HYBRID VEHICLE CONTROL ECU |
| *5 | DLC3 | - | - |
