PARTS LOCATION

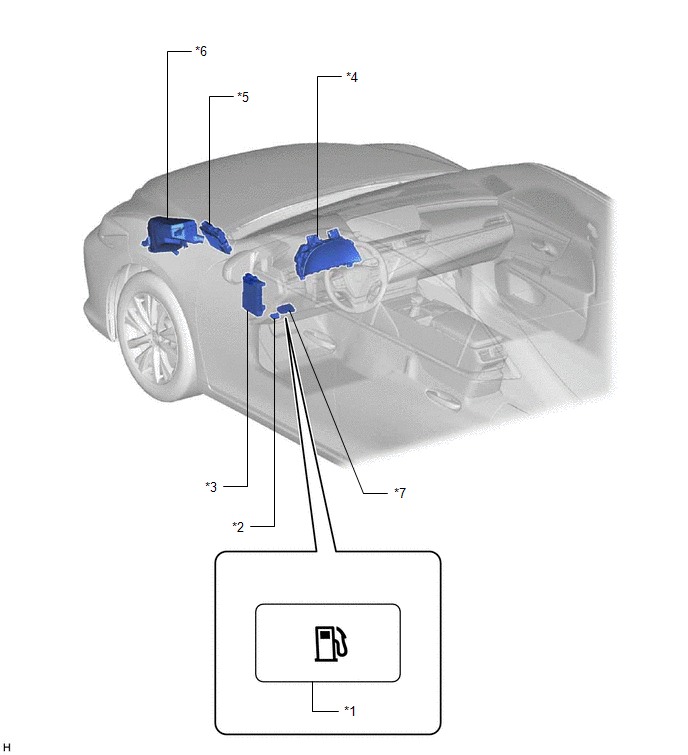

ILLUSTRATION
| *1 | FUEL LID OPENER SWITCH | *2 | DLC3 |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - FUEL OPN RELAY | *4 | COMBINATION METER ASSEMBLY |
| *5 | ECM | *6 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI NO. 1 FUSE - FUEL OPN FUSE - EFI-MAIN NO. 1 FUSE - EFI-MAIN NO. 1 RELAY |
| *7 | TRUNK AND FUEL SWITCH ASSEMBLY | - | - |

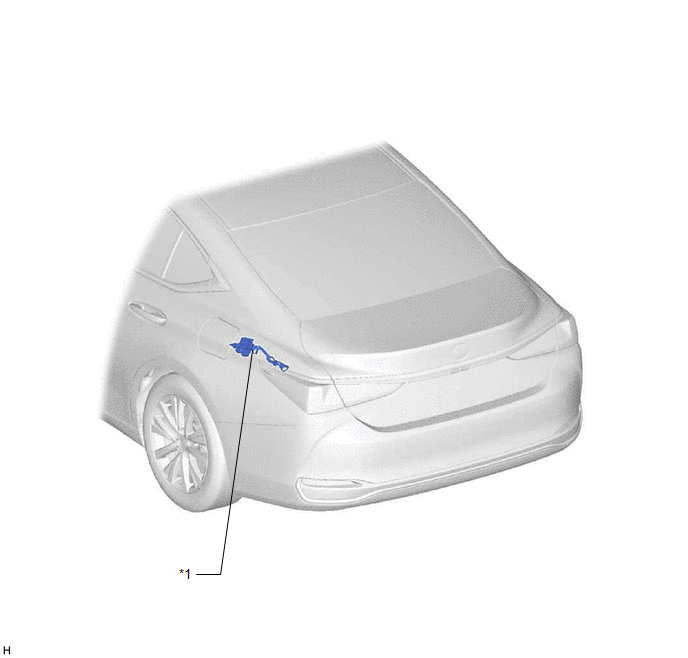

ILLUSTRATION
| *1 | FUEL LID LOCK WITH MOTOR ASSEMBLY | - | - |
