Lexus ES: Parts Location
Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fks (cooling) / Cooling Fan System / Parts Location
PARTS LOCATION

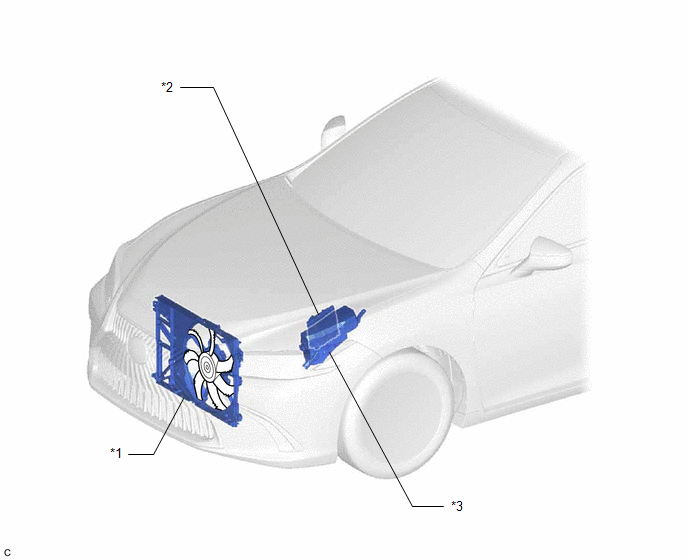

ILLUSTRATION
| *1 | FAN WITH MOTOR ASSEMBLY - COOLING FAN MOTOR - COOLING FAN ECU | *2 | ECM |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI-MAIN NO. 1 RELAY | - | - |
