Lexus ES: Panel Switches do not Function

Lexus ES (XZ10) Service Manual / Audio & Visual & Telematics / Navigation / Multi Info Display / Navigation System (for Hv Model) / Panel Switches do not Function

CAUTION / NOTICE / HINT

NOTICE:

  • Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Navigation System.

    Click here

  • When replacing the radio receiver assembly, always replace it with a new one. If a radio receiver assembly which was installed to another vehicle is used, the following may occur:
    • A communication malfunction DTC may be stored.
    • The radio receiver assembly may not operate normally.

PROCEDURE

1.

CHECK PANEL SWITCH

(a) Check for foreign matter around the switches that might prevent operation.

OK:

No foreign matter is found.

NG

REMOVE ANY FOREIGN MATTER FOUND
OK

2.

CHECK PANEL & STEERING SWITCH (OPERATION CHECK)

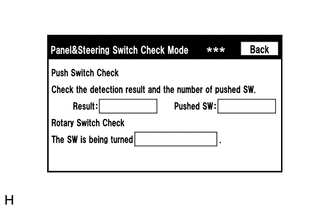

(a) Enter the "Panel & Steering Switch Check Mode" screen. Refer to Check Panel & Steering Switch in Operation Check.

Click here

(b) Operate the abnormal switch and check if the switch status is correctly displayed.

OK:

The switch status is correctly displayed as operated.

OK

REPLACE RADIO RECEIVER ASSEMBLY

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
