Lexus ES: No. 1 Clearance Warning Buzzer Circuit
DESCRIPTION
This circuit consists of the No. 1 clearance warning buzzer and clearance warning ECU assembly. An ECU-excited type buzzer is used. The ECU operates the buzzers using a sound pattern that changes depending on the distance to the obstacle.

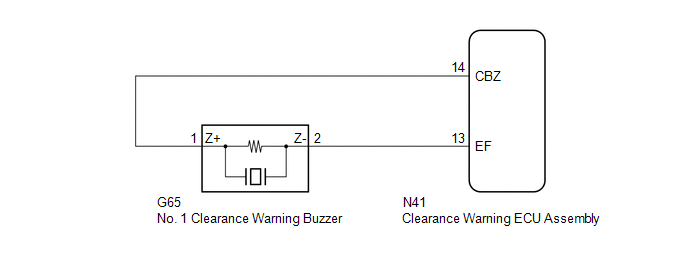

WIRING DIAGRAM
PROCEDURE
| 1. | PERFORM ACTIVE TEST USING TECHSTREAM |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / Advanced Parking Guidance/ICS/Intuitive P/A / Active Test.
(e) Check that the buzzer operates by performing the Active Test.
Body Electrical > Advanced Parking Guidance/ICS/Intuitive P/A > Active Test| Tester Display | Measurement Item | Control Range | Diagnostic Note |
|---|---|---|---|
| Buzzer | No. 1 clearance warning buzzer | Operate or Stop | Confirm that the vehicle is stopped and the engine switch is on (IG) |
| Tester Display |
|---|
| Buzzer |
OK:
The No. 1 clearance warning buzzer sounds.
| OK |  | REPLACE CLEARANCE WARNING ECU ASSEMBLY |
|
| 2. | CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU ASSEMBLY - NO. 1 CLEARANCE WARNING BUZZER) |
(a) Disconnect the N41 clearance warning ECU assembly connector.
(b) Disconnect the G65 No. 1 clearance warning buzzer connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| N41-14 (CBZ) - G65-1 (Z+) | Always | Below 1 Ω |
| N41-13 (EF) - G65-2 (Z-) | Always | Below 1 Ω |
| N41-14 (CBZ) or G65-1 (Z+) - Body ground | Always | 10 kΩ or higher |
| N41-13 (EF) or G65-2 (Z-) - Body ground | Always | 10 kΩ or higher |
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 3. | REPLACE NO. 1 CLEARANCE WARNING BUZZER |
(a) Replace the No. 1 clearance warning buzzer with a new or known good one.
Click here .gif)
|
| 4. | PERFORM ACTIVE TEST USING TECHSTREAM |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / Advanced Parking Guidance/ICS/Intuitive P/A / Active Test.
(e) Check that the buzzer operates by performing the Active Test.
Body Electrical > Advanced Parking Guidance/ICS/Intuitive P/A > Active Test| Tester Display | Measurement Item | Control Range | Diagnostic Note |
|---|---|---|---|
| Buzzer | No. 1 clearance warning buzzer | Operate or Stop | Confirm that the vehicle is stopped and the engine switch is on (IG) |
| Tester Display |
|---|
| Buzzer |
OK:
The No. 1 clearance warning buzzer sounds.
| OK | | END |
| NG | | REPLACE CLEARANCE WARNING ECU ASSEMBLY |
