Components
COMPONENTS

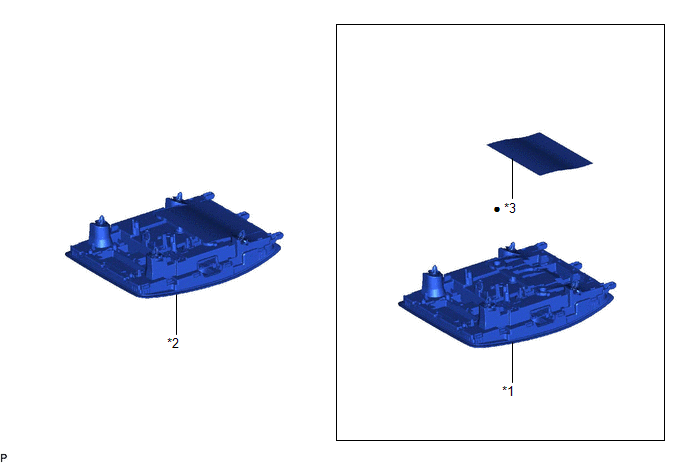

ILLUSTRATION
| *1 | MANUAL (SOS) SWITCH (MAP LIGHT SUB-ASSEMBLY) | *2 | MAP LIGHT ASSEMBLY |
| *3 | ROOF CONSOLE BOX INNER COVER | - | - |
| ● | Non-reusable part | - | - |
Installation
INSTALLATION
PROCEDURE
1. INSTALL MANUAL (SOS) SWITCH (MAP LIGHT SUB-ASSEMBLY)
2. INSTALL ROOF CONSOLE BOX INNER COVER
Click here .gif)
3. INSTALL MAP LIGHT ASSEMBLY
Click here
Removal
REMOVAL
PROCEDURE
1. REMOVE MAP LIGHT ASSEMBLY
Click here .gif)
2. REMOVE ROOF CONSOLE BOX INNER COVER
Click here
3. REMOVE MANUAL (SOS) SWITCH (MAP LIGHT SUB-ASSEMBLY)
