Lexus ES: Maintenance data (fuel, oil level, etc.)

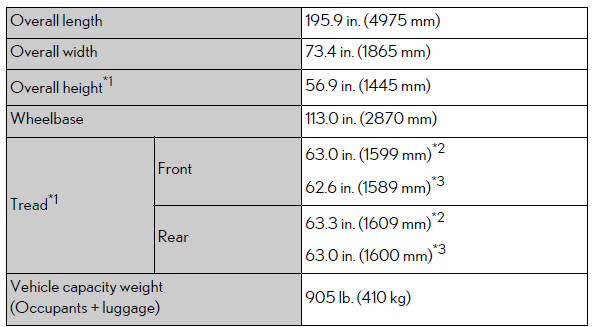

Dimensions and weight
*1: Unladen vehicle
*2: Vehicles with 215/55R17 tires
*3: Vehicles with 235/45R18 tires
Vehicle identification
■ Vehicle identification number The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle.

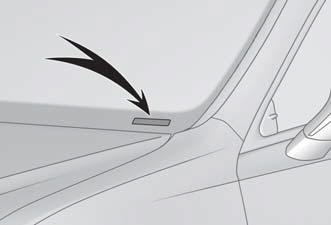

This number is stamped on the top left of the instrument panel.

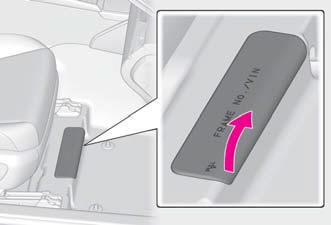

This number is also stamped under the right-hand front seat.

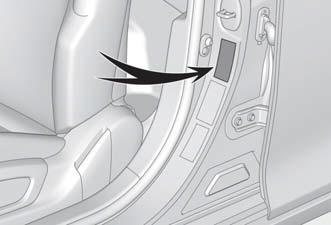

This number is also on the Certification Label.

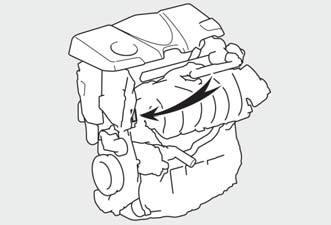

■ Engine number The engine number is located as shown.

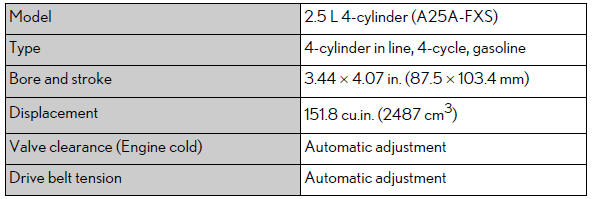

Engine

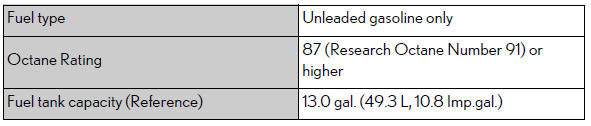

Fuel

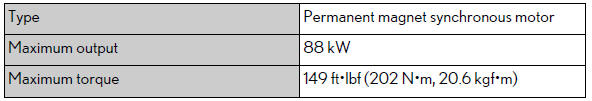

Electric motor (traction motor)

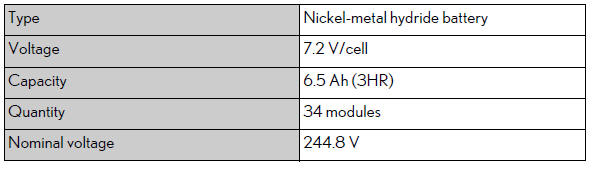

Hybrid battery (traction battery)
Lubrication system
■ Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and check the oil level on the dipstick.
■ Engine oil selection "Toyota Genuine Motor Oil" is used in your Lexus vehicle. Use Lexus approved "Toyota Genuine Motor Oil" or equivalent to satisfy the following grade and viscosity.
Oil grade: API SN/RC multigrade engine oil
Recommended viscosity: SAE 0W-16
SAE 0W-16 is the best choice for good fuel economy and good starting in cold weather.
If SAE 0W-16 is not available, SAE 0W-20 oil may be used. However, it must be replaced with SAE 0W-16 at the next oil change.

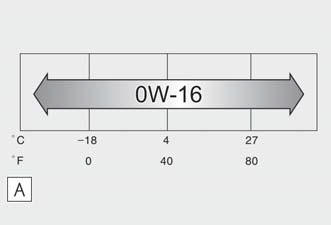

- Outside temperature
Oil viscosity (0W-16 is explained here as an example):
- The 0W in 0W-16 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of the engine in cold weather.
- The 16 in 0W-16 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher value) may be better suited if the vehicle is operated at high speeds, or under extreme load conditions.
How to read oil container label: API registered marks is added to some oil containers to help you select the oil you should use.

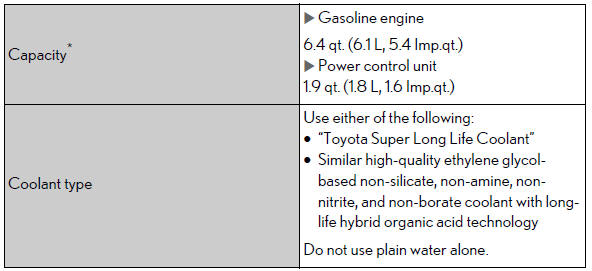

Cooling system
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.
Ignition system
■ Spark plug
NOTICE
■Iridium-tipped spark plugs Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

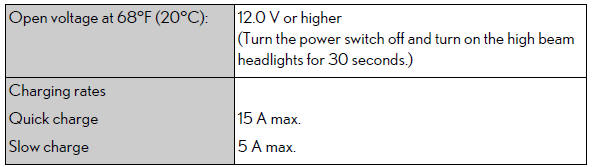

Electrical system (12-volt battery)
Hybrid transmission
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.
NOTICE
■Iridium-tipped spark plugs Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

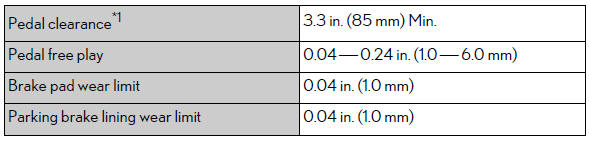

Brakes
*1: Minimum pedal clearance when depressed with a force of 67.4 lbf (300 N,
30.6 kgf)
while the hybrid system is operating.
When performing the brake pedal inspection, also be sure to check that the brake
system
warning light is not illuminated when the hybrid system is operating.

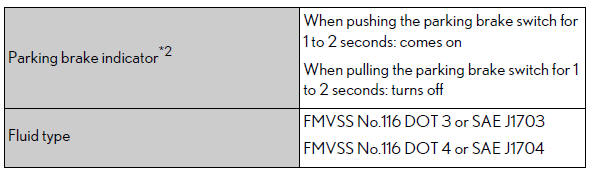

*2:Make sure to confirm that the brake system warning light (yellow) does not
illuminate.
Steering

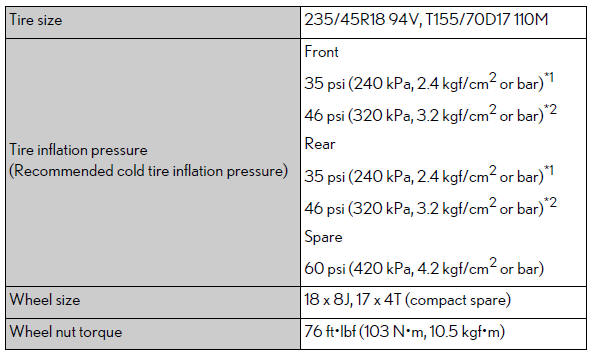

Tires and wheels

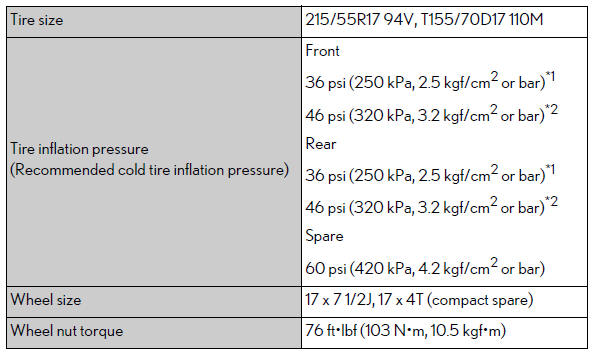

Type A
*1: 99 mph (160 km/h) or less
*2:More than 99 mph (160 km/h)
Type B
*1: 99 mph (160 km/h) or less
*2:More than 99 mph (160 km/h)

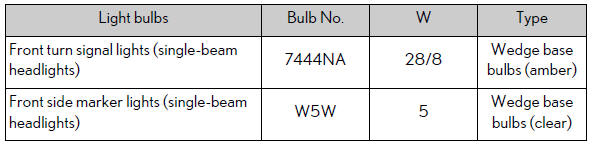

Light bulbs
READ NEXT:
Fuel information
You must only use unleaded gasoline.
Select unleaded gasoline with an
octane rating of 87 (Research
Octane Number 91) or higher
required for optimum engine performance
and fuel economy. If the
o
Tire information
Typical tire symbols
Full-size tire
Tire size
DOT and Tire Identification Number (TIN)
Location of treadwear indicators
Tire ply composition and materials
Plies are layers of rubber-
Customization
Customizable features
Your vehicle includes a variety of
electronic features that can be personalized
to your preferences. The
settings of these features can be
changed by using the meter control
