Lexus ES: Installation
INSTALLATION
PROCEDURE
1. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH
NOTICE:
If the rear height control sensor sub-assembly LH has been struck or dropped, replace it with a new one.

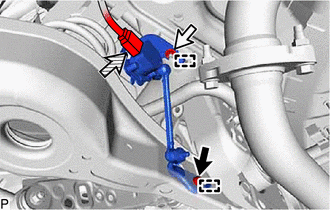

(a) for 2WD:
(1) Engage the 2 guides.
.png) | Bolt |
.png) | Connector |
(2) Install the rear height control sensor sub-assembly LH with the 2 bolts.
Torque:
12 N·m {122 kgf·cm, 9 ft·lbf}
(3) Connect the connector.

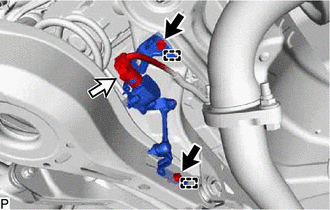

(b) for AWD:
(1) Engage the 2 guides.
| | Bolt |
| | Nut |
.png) | Connector |
(2) Install the rear height control sensor sub-assembly LH with the bolt and nut.
Torque:
for Bolt :
12 N·m {122 kgf·cm, 106 in·lbf}
for Nut :
12 N·m {122 kgf·cm, 106 in·lbf}
(3) Connect the connector.
2. INSTALL REAR WHEEL (for LH Side)
Click here .gif)
3. PERFORM INITIALIZATION
for HV Model:
Click here
for Gasoline Model:
Click here
4. INSPECT HEADLIGHT AIMING
Click here
