Lexus ES: Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 2 RADIO BRACKET

HINT:

Perform this procedure only when replacement of the No. 2 radio bracket is necessary.

(a) Install the No. 2 radio bracket with the 3 screws.

2. INSTALL NO. 1 RADIO BRACKET

HINT:

Perform this procedure only when replacement of the No. 1 radio bracket is necessary.

(a) Install the No. 1 radio bracket with the 3 screws.

3. INSTALL RADIO RECEIVER ASSEMBLY

4. INSTALL NAVIGATION ECU WITH BRACKET (w/ Navigation System)

Click here

5. INSTALL NO. 1 NAVIGATION WIRE (w/ Navigation System)

Click here

6. INSTALL REFRESHING SEAT SWITCH

Click here

7. INSTALL RADIO RECEIVER ASSEMBLY WITH SWITCH

(a) Connect each connector.

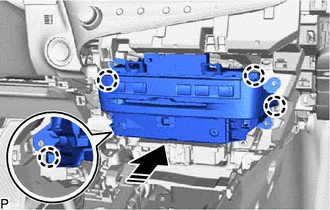

(b) Engage the 4 claws to temporarily install the radio receiver assembly with switch as shown in the illustration.

Install in this Direction

(c) Install the radio receiver assembly with switch with the 4 bolts.

8. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

Click here

9. INSTALL LOWER INSTRUMENT PANEL LH

Click here

10. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

11. INSTALL INSTRUMENT SIDE PANEL RH

Click here

12. INSTALL FRONT DOOR OPENING TRIM COVER RH

HINT:

Use the same procedure as for the LH side.

Click here

13. INSTALL COWL SIDE TRIM BOARD RH

HINT:

Use the same procedure as for the LH side.

Click here

14. INSTALL FRONT DOOR SCUFF PLATE RH

HINT:

Use the same procedure as for the LH side.

Click here

15. INSTALL LOWER INSTRUMENT PANEL

Click here

16. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

17. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

18. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

for UA80E:

Click here

for P710:

Click here

UB80F:

Click here

19. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

20. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

Click here

21. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

Click here
