Lexus ES: Installation
INSTALLATION
PROCEDURE
1. INSTALL FUEL LID LOCK WITH MOTOR ASSEMBLY
(a) Apply MP grease to the sliding parts of the fuel lid lock with motor assembly.
(b) Connect the connector.
(c) Engage the 2 claws.
(d) Engage the clamp to install the fuel lid lock with motor assembly.

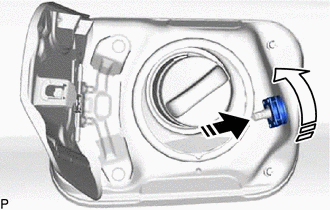

2. INSTALL FUEL FILLER OPENING LID LOCK RETAINER (for Gasoline Model)
(a) Install the fuel filler opening lid lock retainer as shown in the illustration.
.png) | Install in this Direction (1) |
.png) | Turn in this Direction (2) |

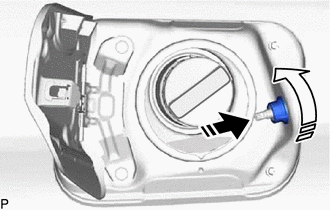

3. INSTALL FUEL FILLER OPENING LID LOCK RETAINER (for HV Model)
(a) Install the fuel filler opening lid lock retainer as shown in the illustration.
| | Install in this Direction (1) |
| | Turn in this Direction (2) |

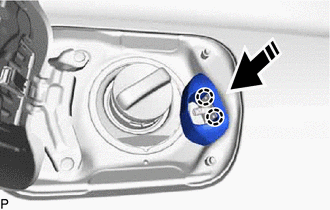

4. INSTALL FUEL FILLER OPENING LID LOCK COVER (for HV Model)
(a) Engage the 2 claws to install the fuel filler opening lid lock cover as shown in the illustration.
| | Install in this Direction |
5. INSTALL LUGGAGE COMPARTMENT TRIM INNER COVER LH
Click here .gif)
6. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
Click here
7. INSTALL REAR FLOOR FINISH PLATE
Click here
8. INSTALL SPARE WHEEL COVER TRAY
Click here
9. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
Click here
