Lexus ES (XZ10) Service Manual / Brake / Brake System (other) / Vacuum Warning Switch (for Gasoline Model) / Installation

INSTALLATION

PROCEDURE

1. INSTALL CHECK VALVE GROMMET

(a) Install a new check valve grommet to the brake booster assembly.

2. INSTALL VACUUM WARNING SWITCH ASSEMBLY

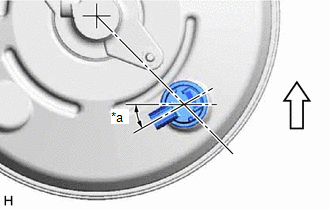

(a) Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.

*a

30° +/- 20°

Up

(b) Connect the connector to the vacuum warning switch assembly.

3. INSTALL BATTERY

for A25A-FKS: Click here

for 2GR-FKS: Click here
