Lexus ES: Inspection

Lexus ES (XZ10) Service Manual / Engine & Hybrid System / Hybrid / Battery Control / Service Plug Grip / Inspection

INSPECTION

PROCEDURE

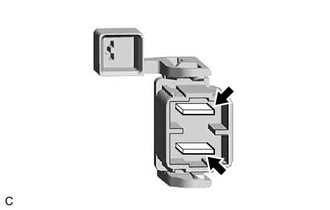

1. INSPECT SERVICE PLUG GRIP

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Service Plug Grip

Always

Below 1 Ω

If the result is not as specified, replace the service plug grip.
