Lexus ES (XZ10) Service Manual / Brake / Brake System (other) / Brake Fluid (for Hv Model) / Components
COMPONENTS
ILLUSTRATION
.png)

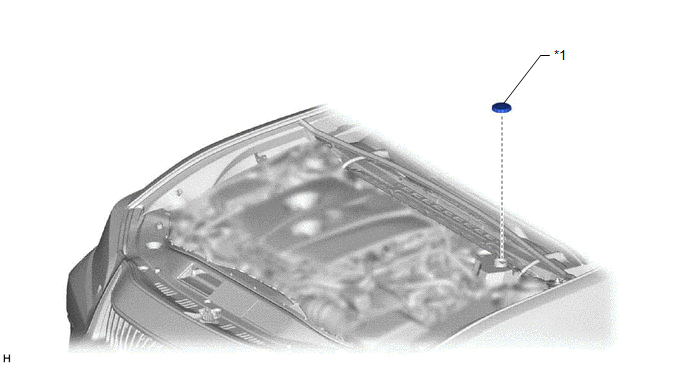

| *1 | BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY | - | - |
ILLUSTRATION
.png)

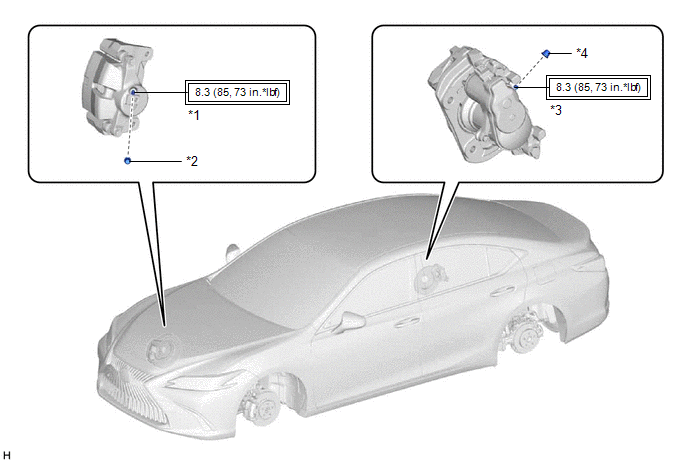

| *1 | FRONT DISC BRAKE BLEEDER PLUG | *2 | FRONT DISC BRAKE BLEEDER PLUG CAP |
| *3 | REAR DISC BRAKE BLEEDER PLUG | *4 | REAR DISC BRAKE BLEEDER PLUG CAP |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
