INSPECTION

PROCEDURE

1. INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

5 (M-) - 6 (M+)

20°C (68°F)

0.3 to 100 Ω

If the result is not as specified, replace the throttle body with motor assembly.

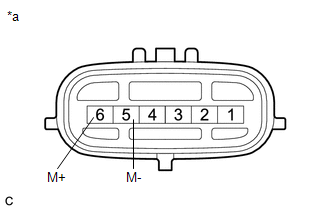

*a

Component without harness connected

(Throttle Body with Motor Assembly)
