DISPOSAL

PROCEDURE

1. DISPOSE OF SUSPENSION TOWER DAMPER

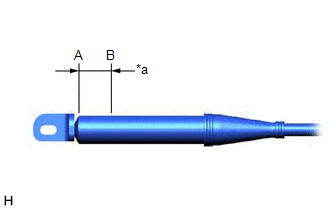

(a) Using a hacksaw, make a hole in the cylinder between (A) and (B) shown in the illustration to discharge the gas inside.

*a

10 mm

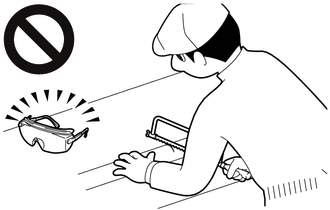

CAUTION:

  • Always use a cloth to prevent shards of metal from flying about due to the release of pressurized gas.
  • Always wear safety glasses.

HINT:

The gas is colorless, odorless and non-poisonous.
