Lexus ES: Disassembly

DISASSEMBLY

PROCEDURE

1. REMOVE FRONT DRIVE SHAFT OIL SEAL RH

(a) Hold the differential case assembly in a vise between aluminum plates.

NOTICE:

Do not overtighten the vise.

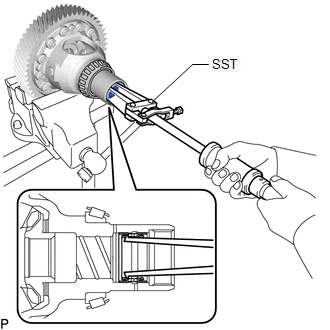

(b) Using SST, remove the front drive shaft oil seal RH from the differential case assembly.

SST: 09308-00010

NOTICE:

Be careful not to damage the oil seal installation surface of the differential case assembly.

2. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE)

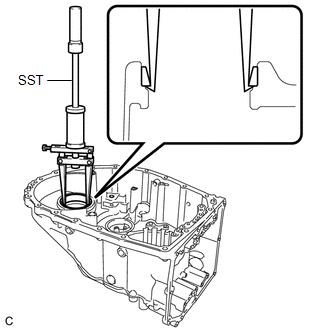

(a) Using SST, remove the front differential case rear tapered roller bearing (outer race) from the automatic transaxle case sub-assembly.

SST: 09308-36010

NOTICE:

Be careful not to damage the automatic transaxle case sub-assembly.

HINT:

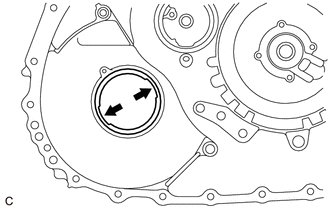

Align the claw of SST with the indentation of the automatic transaxle case sub-assembly when removing the parts.

3. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE)

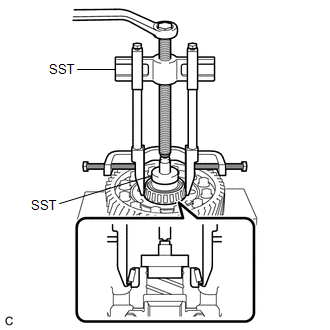

(a) Using SST, remove the front differential case rear tapered roller bearing (inner race) from the differential case assembly.

SST: 09950-40011

09951-04010

09952-04010

09953-04030

09954-04020

09955-04011

09957-04010

09958-04011

SST: 09950-60011

09951-00340

09951-00440

09952-06010

NOTICE:

Because SST is attached to the roller portion, there is a possibility that the roller portion could break and SST could come off before the front differential case rear tapered roller bearing (inner race) comes off.

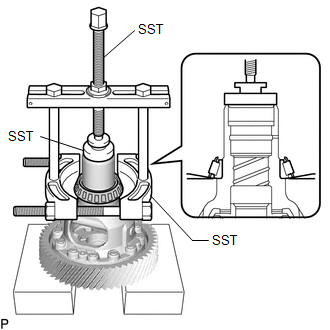

(b) If the roller portion breaks and SST comes off, reattach SST to the inner race in the position shown in the illustration, and continue removing the parts.

SST: 09950-40011

09951-04010

09952-04010

09953-04030

09954-04020

09955-04011

09957-04010

09958-04011

SST: 09950-60011

09951-00340

09951-00440

09952-06010

4. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE)

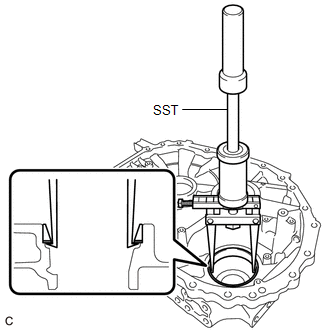

(a) Using SST, remove the front differential case front tapered roller bearing (outer race) and differential drive pinion shim from the transaxle housing.

SST: 09308-36010

NOTICE:

Be careful not to damage the transaxle housing.

HINT:

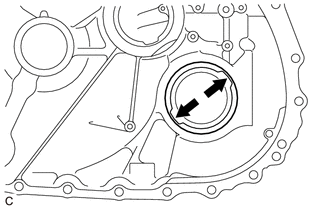

Align the claw of SST with the indentation of the transaxle housing when removing the parts.

5. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE)

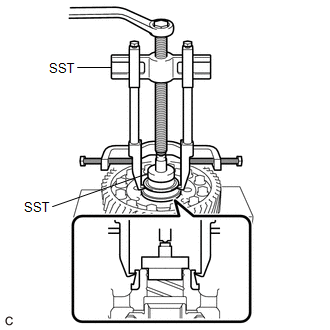

(a) Using SST, remove the front differential case front tapered roller bearing (inner race) from the differential case assembly.

SST: 09950-00020

SST: 09950-00030

SST: 09950-60011

09951-00530
