Lexus ES: Diagnosis System

DIAGNOSIS SYSTEM

CHECK FOR INSTALLED SYSTEMS (ECUS AND SENSORS) THAT USE CAN COMMUNICATION

(a) The systems (ECUs and sensors) that use CAN communication vary depending on the vehicle and optional equipment. Check which systems (ECUs and sensors) are installed to the vehicle.

(1) Techstream display and installed systems

HINT:

The names of ECUs and sensors shown on the Techstream display may differ from those shown in DTC Table by ECU.

Connected to

Code

ECU/Sensor Name

Techstream Display

Applicability

-

CGW

Central gateway ECU (network gateway ECU)

-

Installed on all vehicles

-

DLC3

DLC3

-

Installed on all vehicles

Bus 1

GRS

Swing grille actuator assembly

Grill Shutter

Installed on all vehicles

F-CAM

Forward recognition camera

Front Camera Module

Installed on all vehicles

CS

Clearance warning ECU assembly

Clearance Warning (Intuitive Parking Assist)

Vehicles with Parking Support Alert System

PAC

Parking assist ECU

Panoramic View Monitor / Circumference Monitoring Camera Control Module

Vehicles with Panoramic View Monitor System

F-MR

Millimeter wave radar sensor assembly

Front Radar

Installed on all vehicles

BSM

Blind spot monitor sensor RH

Blind Spot Monitor Master

Vehicles with Blind Spot Monitor System

R-CA

Rear television camera assembly

Parking Assist Monitor System / Rear Camera

Installed on all vehicles

Bus 2

HV

Hybrid vehicle control ECU

Hybrid Vehicle Control

Installed on all vehicles

VAS

Vehicle approaching speaker controller

Vehicle Proximity Notification System

Installed on all vehicles

BRK

Brake booster with master cylinder assembly

Skid Control (ABS/VSC/TRAC)

Installed on all vehicles

F-MGC

Inverter with converter assembly

Motor Generator

Installed on all vehicles

ENG

ECM

ECM (Engine)

Installed on all vehicles

Bus 3

DCM

DCM (telematics transceiver)

DCM

Vehicles with Telematics Transceiver

AV

Radio receiver assembly

Display and Navigation (AVN)

Installed on all vehicles

YGW

Option connector (bus buffer ECU)

Accessory Gateway

Vehicles with CAN Compatible Optional Devices

ANC

Stereo component equalizer assembly

Active Noise Control

Installed on all vehicles

Bus 4

TPMS

Tire pressure warning ECU and receiver

Tire Pressure

Installed on all vehicles

OCS

Occupant detection ECU

Occupant Detection

Installed on all vehicles

STR

Steering sensor

Spiral cable (Steering Angle Sensor)

Installed on all vehicles

EPS

Rack and pinion power steering gear assembly

Power Steering (EPS)

Installed on all vehicles

HV

Hybrid vehicle control ECU

Hybrid Vehicle Control

Installed on all vehicles

PKB

Brake actuator assembly

Electric Parking Brake

Installed on all vehicles

BRK

Brake booster with master cylinder assembly

Skid Control (ABS/VSC/TRAC)

Installed on all vehicles

ENG

ECM

ECM (Engine)

Installed on all vehicles

SRS

Airbag ECU assembly

Airbag

Installed on all vehicles

Bus 5

MIR-R

Outer mirror control ECU assembly RH

Front Door RH/R-Mirror (FR-Door/R-Mirror)

Vehicles with Seat Position Memory System

LITS

Headlight ECU sub-assembly RH

HL AutoLeveling/AFS/AHS (Sub)

Installed on all vehicles

DST

Position control ECU assembly LH

D-Seat

Vehicles with Seat Position Memory System

MIR-L

Outer mirror control ECU assembly LH

Front Door LH/L-Mirror (FL-Door/L-Mirror)

Vehicles with Seat Position Memory System

BKD

Luggage closer motor assembly

Back Door

Vehicles with Power Trunk Lid System

T&T

Multiplex tilt and telescopic ECU

Multiplex Tilt and Telescopic

Vehicles with Power Tilt and Power Telescopic System

HUD

Meter mirror sub-assembly

Head Up Display

Vehicles with Headup Display System

MB

Main body ECU (multiplex network body ECU)

Main Body

Installed on all vehicles

SMT

Certification ECU (smart key ECU assembly)

Certification (Smart)

Installed on all vehicles

A/C

Air conditioning amplifier assembly

Air Conditioning Amplifier

Installed on all vehicles

LITM

Headlight ECU sub-assembly LH

HL AutoLeveling/AFS/AHS

Installed on all vehicles

MET

Combination meter assembly

Combination Meter

Installed on all vehicles

NOTICE:

The following communication bus check screen is provided only as an example. This screen differs from the actual screen for this vehicle.

Description of "Communication Bus Check" Screen

HINT:

The ECUs and sensors that are normally connected to the CAN communication system are displayed on the Techstream.

(a) Select "Communication Bus Check" on the menu screen of the Techstream.

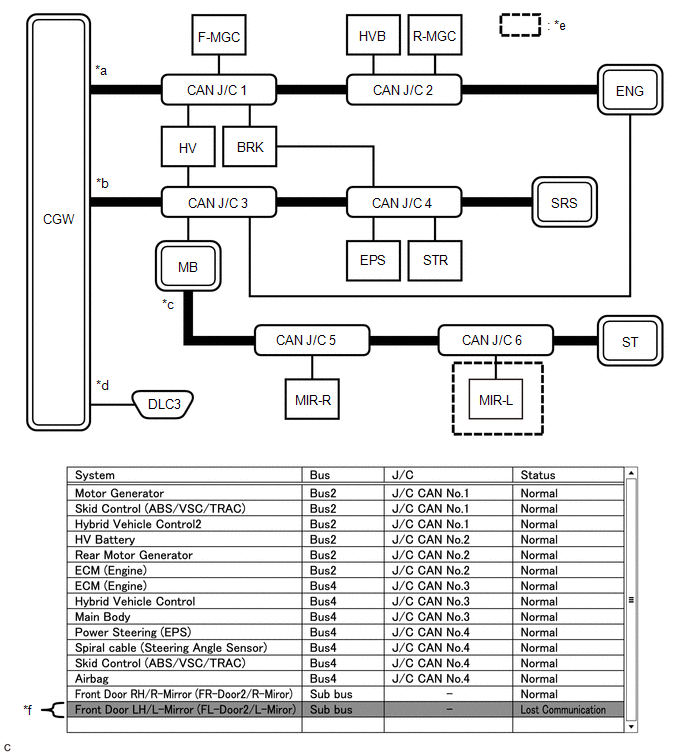

CAN Bus Check

HINT:

If items are not selected correctly in the vehicle specification pop up screen, the name of the CAN junction connector to which the ECUs or sensors are connected may not be displayed on the "Communication Bus Check" screen.

(b) Confirm that the "Communication Bus Check" screen is displayed and the ECUs and sensors that are normally connected to the CAN communication system are displayed.

HINT:

  • Even if an ECU or sensor that is connected to a bus that is monitored by a bus monitoring ECU (gateway function equipped ECU) is not communicating, it will remain displayed on the "Communication Bus Check" screen.
  • When an ECU or sensor that is connected to a bus that is not monitored by a bus monitoring ECU (gateway function equipped ECU) is not displayed on the "Communication Bus Check" screen, it means that it is not communicating.

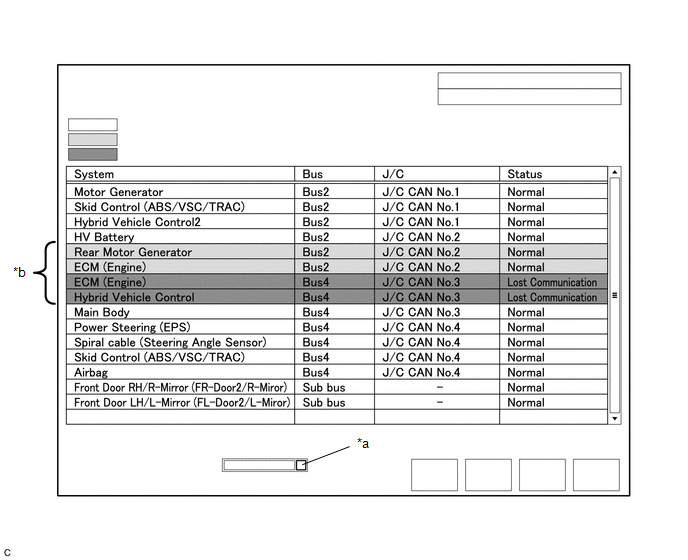

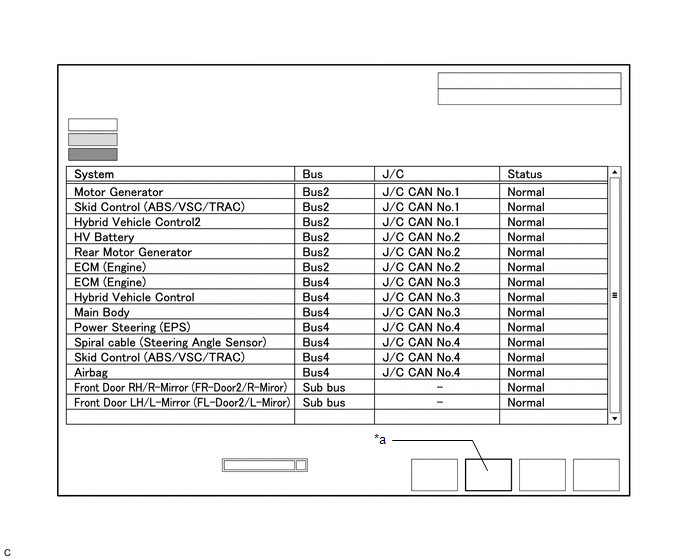

(c) The default display setting selected on the combo box is ALL. When checking for ECUs or sensors for a specific bus, choose the bus from the drop down list. ALL, each bus, each sub bus and Central Gateway are listed in the drop down list.

*a

Combo box

*b

Background color is red or yellow

Item

Detail

Combo box: ALL

Displays all ECUs and sensors connected to the central bus and sub buses.

Combo box: Bus

Displays ECUs and sensors connected to the selected bus.

Combo box: Sub bus

Displays ECUs and sensors connected to the selected sub bus.

Combo box: Central Gateway

Displays all ECUs and sensors connected to the central bus.

NOTICE:

  • When using the combo box, it may be possible to select a sub bus from the drop down list that does not have any connected ECUs or sensors. This is not a malfunction and occurs when there is no optional device connected to a sub bus which is monitored by a sub bus monitoring ECU (gateway function equipped ECU).
  • In the drop down list, all sub buses applicable to the model are displayed (e.g. LIN communication sub buses are also displayed). For information on sub buses necessary to diagnose the CAN communication system, refer to System Diagram.

    Click here

HINT:

The background color of an ECU or sensor changes according to its connection status as indicated in the following table.

Description of "Communication Bus Check" Screen

Bus Type

Background Color

Connection Status

Bus

White

Communication has been normal.

Yellow

Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).

Red

Currently not communicating (either of the following):

  • Not communicating since the start of the CAN bus check
  • Communication occurred at least once since the start of the CAN bus check, but is currently not occurring.

Not displayed

Either of the following:

  • The central gateway ECU (network gateway ECU) has an internal malfunction or cannot communicate with the Techstream.*4
  • No ECUs or sensors are connected to the bus.*5

Sub bus with a gateway function equipped ECU that does not memorize connected ECUs or sensors*2

White

Communication has been normal since the start of the CAN bus check.

Yellow

Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).

Red

Communication occurred at least once since the start of the CAN bus check, but is currently not occurring.

Not displayed

Communication stop has continued since the start of the CAN bus check.*1

Sub bus with a gateway function equipped ECU that memorizes connected ECUs and sensors*3

White

Communication has been normal.

Yellow

Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).

Red

Currently not communicating (either of the following):

  • Not communicating since the start of the CAN bus check
  • Communication occurred at least once since the start of the CAN bus check, but is currently not occurring.

Not displayed

Either of the following:

  • The gateway function equipped ECU cannot communicate with the central gateway ECU.*6
  • No ECUs or sensors are connected to the sub bus.*7
  • Gateway function equipped ECUs relay signals between ECUs and sensors connected to different buses.
  • *1: An ECU or sensor is installed to the vehicle but is not displayed on the "Communication Bus Check" screen.
  • *2: The gateway function equipped ECU does not memorize ECUs and sensors connected to its respective sub bus.
  • *3: The gateway function equipped ECU memorizes ECUs and sensors connected to its respective sub bus.
  • *4: When the central gateway ECU (network gateway ECU) has an internal malfunction or cannot communicate with the Techstream, the name of buses, sub buses, ECUs and sensors will not be displayed.
  • *5: When no ECUs or sensors are connected to a bus, the message "There is no system found on the communication Bus." will be displayed.
  • *6: When a gateway function equipped ECU cannot communicate with the central gateway ECU (network gateway ECU), the name of sub buses and ECUs or sensors connected to the sub bus will not be displayed.
  • *7: When no ECUs or sensors are connected to the sub bus, the message "There is no system found on the communication Bus." will be displayed.
  • If there is no communication between the Techstream and the vehicle, or no ECUs or sensors are displayed as connected, check the central gateway ECU (network gateway ECU) and diagnosis bus (the bus that connects the DLC3 to the central gateway ECU (network gateway ECU)) for malfunctions.

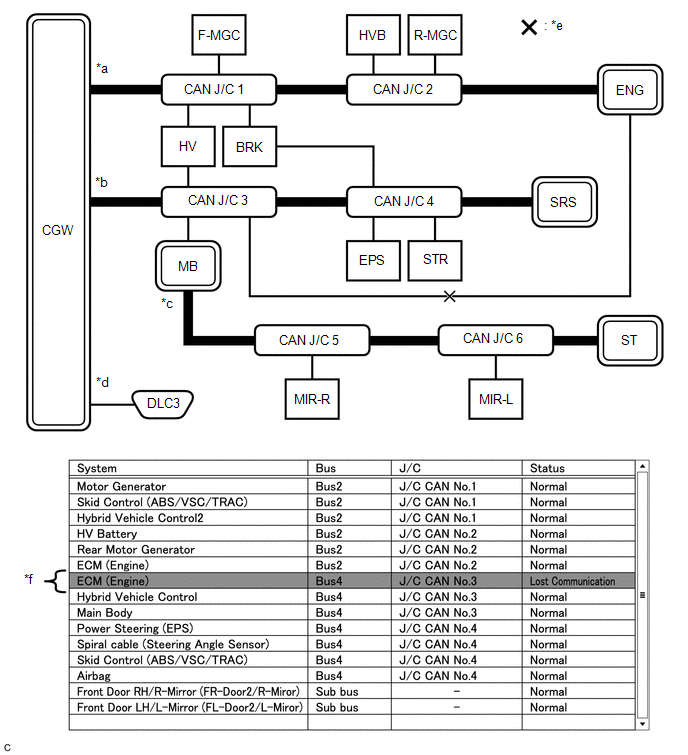

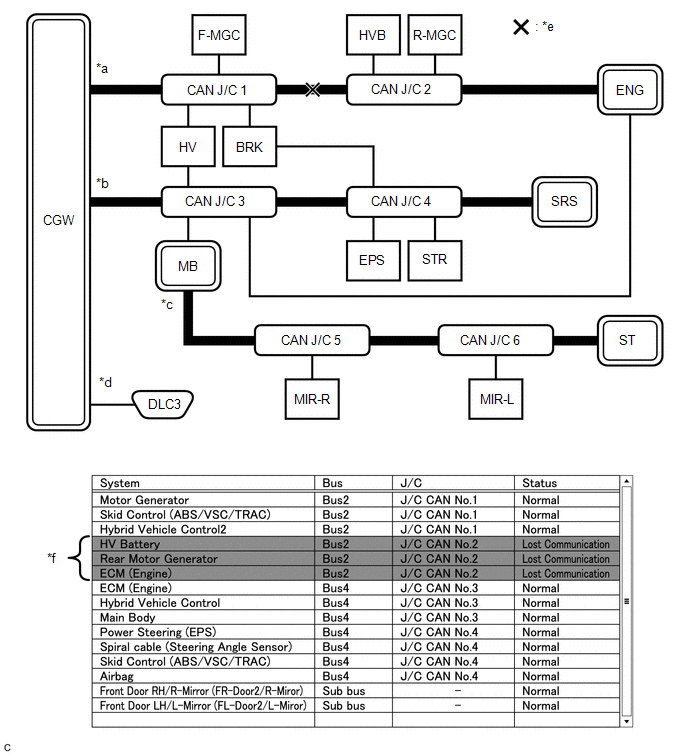

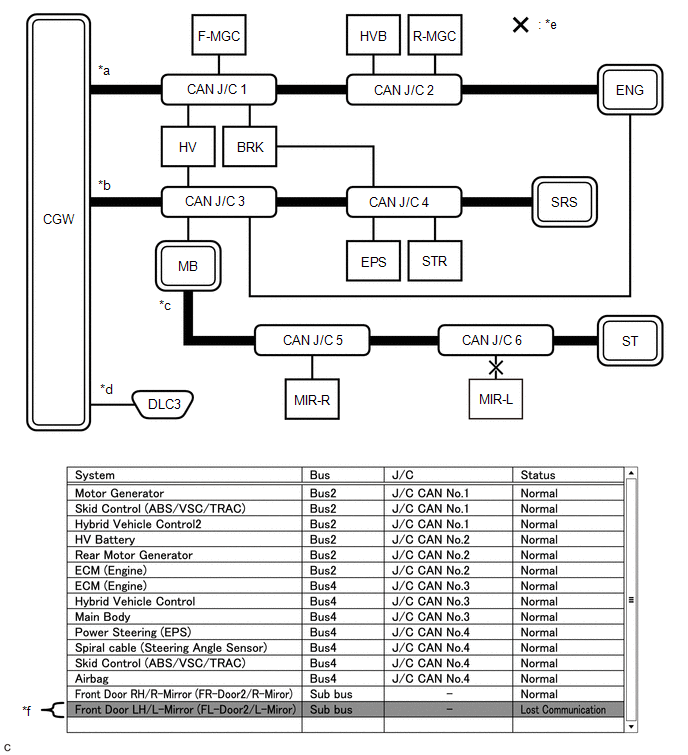

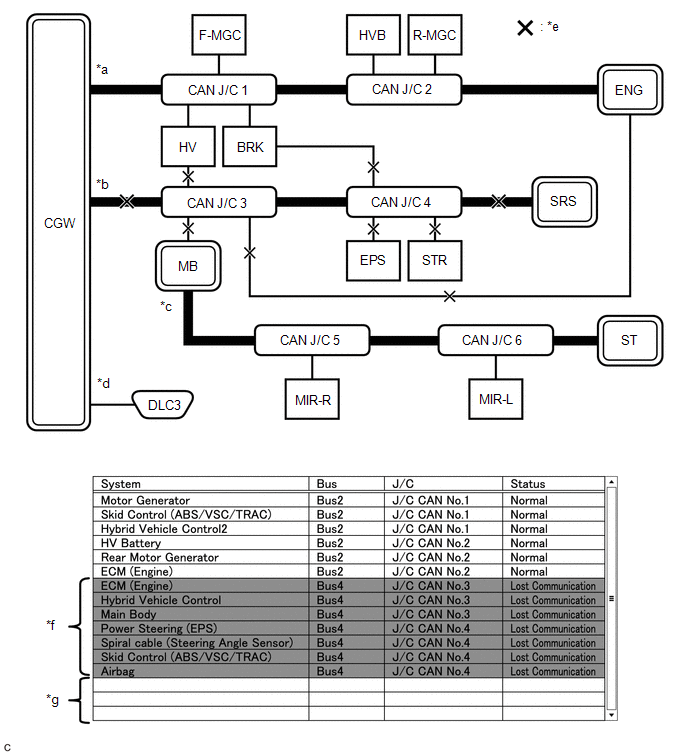

(d) Monitor the screen for any ECU or sensor connection status changes for a period of 2 minutes.

HINT:

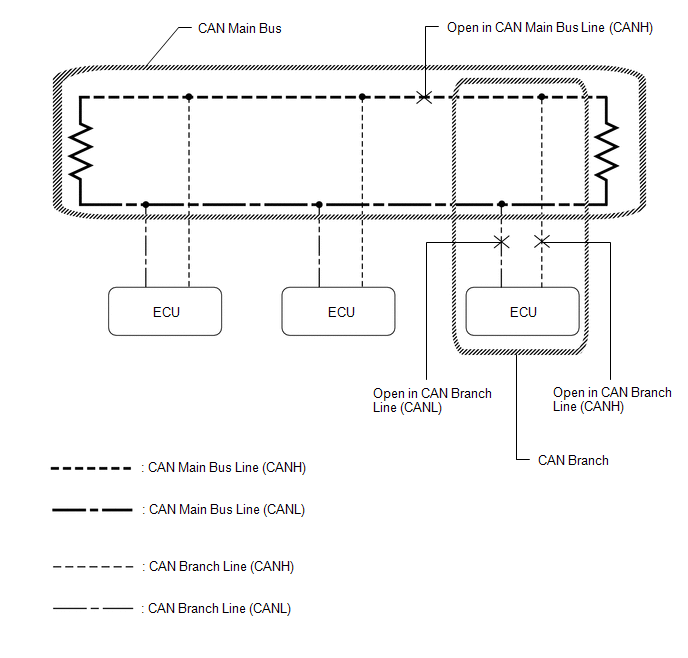

  • If an open occurs in one of the wires of a CAN branch line, it may interfere with the communication of other ECUs or sensors resulting in an incorrect state being displayed.
  • If the connection status changes intermittently during the inspection, repair the open in the branch line of the ECU or sensor that is not communicating, and then perform Communication Bus Check again.

NOTICE:

The following communication bus check screen is provided only as an example. This screen differs from the actual screen for this vehicle.

Description of "Communication Bus Check (Detail)" Screen

HINT:

The communication error history of ECUs or sensors which have communication error history can be displayed on the "Communication Bus Check (Detail)" screen.

(a) Select "Communication Bus Check" on the menu screen of the Techstream.

CAN Bus Check

HINT:

If items are not selected correctly in the vehicle specification pop up screen, the name of the CAN junction connector to which the ECUs or sensors are connected may not be displayed on the "Communication Bus Check" screen.

(b) Select "Detail" on the "Communication Bus Check" screen.

*a

Communication Bus Check (Detail)

-

-

(c) Confirm that the "Communication Bus Check (Detail)" screen is displayed and the communication error history of the ECUs or sensors up to present is displayed.

HINT:

  • Lost Communication Time and Lost Communication Trip are only displayed for the central bus.
  • Lost Communication Time and Lost Communication Trip are not displayed for sub buses.

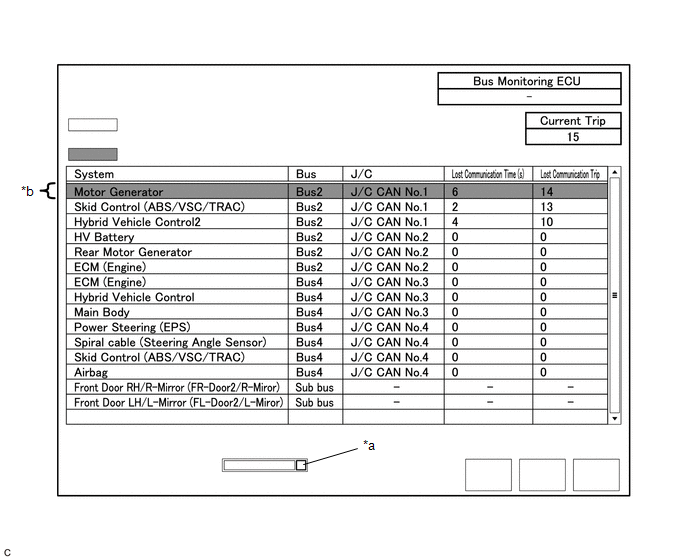

(d) The default display setting selected on the combo box is ALL. When checking for ECUs or sensors for a specific bus, choose the bus from the drop down list. ALL, each bus, each sub bus and Central Gateway are listed in the drop down list.

*a

Combo box

*b

Background color is red

Item

Detail

Combo box: ALL

Displays all ECUs and sensors connected to the central bus and sub buses.

Combo box: Bus

Displays ECUs and sensors connected to the selected bus.

Combo box: Sub bus

Displays ECUs and sensors connected to the selected sub bus.

Combo box: Central Gateway

Displays all ECUs and sensors connected to the central bus.

Bus Monitoring ECU

Displays the gateway function equipped ECU which monitors the selected bus or sub bus.

Current Trip

Displays the total number of trips up to now*

Lost Communication Time(s)

Displays the longest period of time in seconds that the ECU or sensor connected to the central bus was not communicating.

Lost Communication Trip

Displays the trip in which the longest period of time that the ECU or sensor connected to the central bus was not communicating occurred.

  • *: If the component has been replaced with a new one, the total number of trips after the replacement is displayed.

NOTICE:

  • The Lost Communication Time column displays the longest period of time in seconds that the central gateway ECU (network gateway ECU) detected a communication stop in the respective ECU or sensor.
  • The Lost Communication Trip column displays the trip in which the central gateway ECU (network gateway ECU) detected the longest communication stop in the respective ECU or sensor.
  • When using the combo box, it may be possible to select a sub bus from the drop down list that does not have any connected ECUs or sensors. This is not a malfunction and occurs when there is no optional device connected to a sub bus which is monitored by a sub bus monitoring ECU (gateway function equipped ECU).
  • In the drop down list, all sub buses applicable to the model are displayed (e.g. LIN communication sub buses are also displayed). For information on sub buses necessary to diagnose CAN communication system, refer to the System Diagram.

    Click here

HINT:

The background color of an ECU or sensor changes according to its connection status as indicated in the following table.

Description of "Communication Bus Check (Detail)" Screen

Bus Type

Background Color

Connection Status

Bus

White

Either of the following:

  • Communication has been normal.
  • Lost Communication Time is below 6 seconds.

Red

Lost Communication Time is 6 seconds or more.

Not displayed

Either of the following:

  • The central gateway ECU (network gateway ECU) has an internal malfunction or cannot communicate with the Techstream.*1
  • No ECUs or sensors are connected to the bus.*2

Sub bus

White

Lost Communication Time is displayed as "-".

Not displayed

Either of the following:

  • The gateway function equipped ECU cannot communicate with the central gateway ECU.*3
  • No ECUs or sensors are connected to the sub bus.*4
  • If there is no communication between the Techstream and the vehicle, or no ECUs or sensors are displayed as connected, check the central gateway ECU (network gateway ECU) and diagnosis bus (the bus that connects the DLC3 to the central gateway ECU (network gateway ECU)) for malfunctions.
  • Lost Communication Time and Lost Communication Trip are not displayed for sub buses.
  • *1: When the central gateway ECU (network gateway ECU) has an internal malfunction or cannot communicate with the Techstream, the name of buses, sub buses, ECUs and sensors will not be displayed.
  • *2: When no ECUs or sensors are connected to a bus, the message "There is no system found on the communication Bus." will be displayed.
  • *3: When a gateway function equipped ECU cannot communicate with the central gateway ECU (network gateway ECU), the name of sub buses and ECUs or sensors connected to the sub bus will not be displayed.
  • *4: When no ECUs or sensors are connected to the sub bus, the message "There is no system found on the communication Bus." will be displayed.

Communication Bus Check (Communication Malfunction Check)

HINT:

DTCs related to CAN communication are displayed for each ECU on the Techstream.

(a) Select "Communication Bus Check" on the menu screen of the Techstream.

CAN Bus Check

(b) Select "Communication Malfunction Check" on the "Communication Bus Check" screen.

*a

Communication Malfunction Check

-

-

(c) Confirm that the "Communication Malfunction Check" screen is displayed and CAN communication DTCs for each ECU are displayed.

HINT:

When there are no CAN communication DTCs stored, no DTCs will be displayed.

How to Use "Communication Bus Check" Screen in Inspection

NOTICE:

The following CAN bus wiring diagram or communication bus check screen is provided only as an example. This wiring diagram or screen differs from the actual one for this vehicle.

HINT:

  • If the CAN communication system is currently malfunctioning, it is recommended to use Communication Bus Check rather than Communication DTCs for determining the suspected area.
  • Turn the power switch on (IG), or perform the necessary operations to reproduce the problem symptom, select "Communication Bus Check" and wait approximately 2 minutes. Check the communication status of each ECU or sensor on the screen while performing this operation.

(a) If the CAN communication system is currently malfunctioning, determine the suspected area using Communication Bus Check as follows:

Problem Symptoms Table

Problem Symptom Pattern

Display on Communication Bus Check Screen

Suspected Area

A

Almost all of the ECUs and sensors connected to the malfunctioning CAN bus are displayed as not communicating on the "Communication Bus Check" screen.

  • Short between CAN bus lines (CANH and CANL)
  • Short to +B in a CAN bus line (CANH or CANL)
  • Short to ground in a CAN bus line (CANH or CANL)

B

ECUs or sensors farther from the central gateway ECU (network gateway ECU) than the open in the wires are displayed as not communicating on the "Communication Bus Check" screen.

Open in both wires of a main bus line in the central bus

C

One ECU or sensor is displayed as not communicating on the "Communication Bus Check" screen.

  • Open in both wires of a branch line connected to an ECU or sensor in the central bus
  • Internal malfunction of an ECU or sensor in the central bus
  • Malfunction in the power supplied to an ECU or sensor in the central bus

D

No ECUs or sensors are displayed on the "Communication Bus Check" screen.

  • Internal malfunction of the central gateway ECU (network gateway ECU)
  • Malfunction in the power supplied to the central gateway ECU (network gateway ECU)
  • Open in both wires of the branch line in the diagnosis bus (DLC3 - Central gateway ECU (network gateway ECU))
  • Short between CAN bus lines (CANH and CANL) in the diagnosis bus (DLC3 - Central gateway ECU (network gateway ECU))
  • Short to +B in a CAN bus line (CANH or CANL) in the diagnosis bus (DLC3 - Central gateway ECU (network gateway ECU))
  • Short to ground in a CAN bus line (CANH or CANL) in the diagnosis bus (DLC3 - Central gateway ECU (network gateway ECU))

E

One ECU or sensor is displayed as not communicating in multiple buses on the "Communication Bus Check" screen.

  • Internal malfunction of an ECU or sensor connected to multiple buses
  • Malfunction in the power supplied to an ECU or sensor connected to multiple buses

F

Some ECUs or sensors are displayed as not communicating in the central bus and other ECUs or sensors are displayed as not communicating in a sub bus.

  • Open in a wire of a branch line connected to an ECU or sensor in the central bus
  • Internal malfunction of an ECU or sensor in the central bus

G

A gateway function equipped ECU is displayed as not communicating in the central bus and ECUs and sensors connected to its respective sub bus are not displayed.

  • Open in both wires of a branch line connected to a gateway function equipped ECU
  • Internal malfunction of a gateway function equipped ECU
  • Malfunction in the power supplied to a gateway function equipped ECU

H

One ECU or sensor is displayed as not communicating in a sub bus on the "Communication Bus Check" screen.

  • Open in both wires of a branch line connected to an ECU or sensor in a sub bus
  • Internal malfunction of an ECU or sensor in a sub bus
  • Malfunction in the power supplied to an ECU or sensor in a sub bus

I

ECUs or sensors farther from the sub bus monitoring ECU (gateway function equipped ECU) than the open in the wires are displayed as not communicating on the "Communication Bus Check" screen.

Open in both wires of a main bus line in a sub bus

(b) Problem Symptom Pattern A

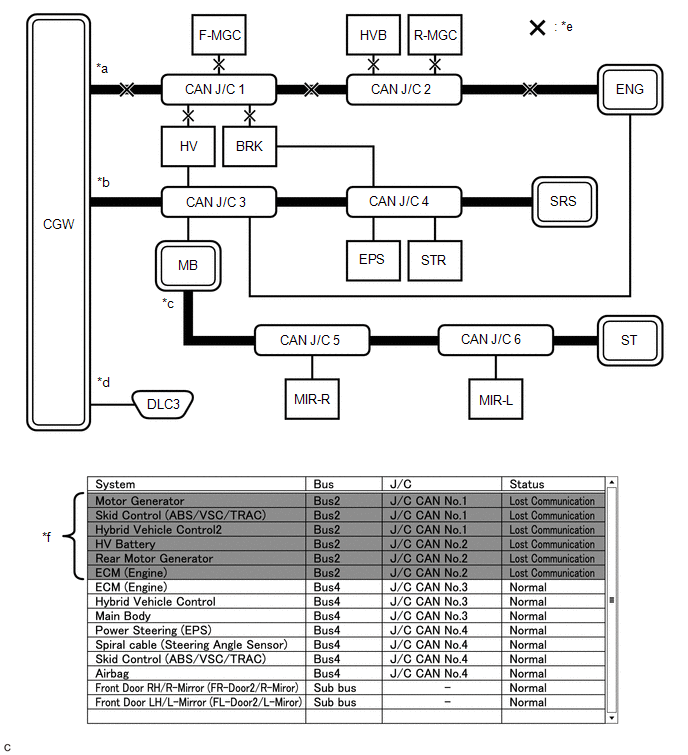

Details of Malfunction

  • Short between CAN bus lines (CANH and CANL) in Bus 2
  • Short to +B in a CAN bus line (CANH or CANL) in Bus 2
  • Short to ground in a CAN bus line (CANH or CANL) in Bus 2

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

HINT:

  • Due to the malfunction, almost all of the ECUs and sensors connected to Bus 2 will be displayed as not communicating and their background color will be red.
  • The malfunction in Bus 2 will not affect the other buses.
  • The malfunctioning part can be determined by inspecting for an open in the main bus line, a short between bus lines or a short to +B or ground.
  • Make sure to perform the inspection to measure resistances of buses to determine the cause of the malfunction.

Details of Malfunction

  • Short between CAN bus lines (CANH and CANL) in Bus 4
  • Short to +B in a CAN bus line (CANH or CANL) in Bus 4
  • Short to ground in a CAN bus line (CANH or CANL) in Bus 4

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

*g

Not displayed

-

-

HINT:

  • Due to the malfunction, almost all of the ECUs and sensors connected to Bus 4 will be displayed as not communicating and their background color will be red.
  • The malfunction will not affect the other buses of the central bus. However, the sub bus connected to Bus 4 is likely to be affected. The gateway function equipped ECU connected to Bus 4 will not communicate and consequently the sub bus and its respective ECUs or sensors monitored by the gateway function equipped ECU (sub bus monitoring ECU) will not be displayed, indicating that the gateway function equipped ECU is not communicating with the central gateway ECU (network gateway ECU).
  • The malfunctioning part can be determined by inspecting for an open in the main bus line, a short between bus lines or a short to +B or ground.
  • Make sure to perform the inspection to measure resistances of buses to determine the cause of the malfunction.

(c) Problem Symptom Pattern B

Details of Malfunction

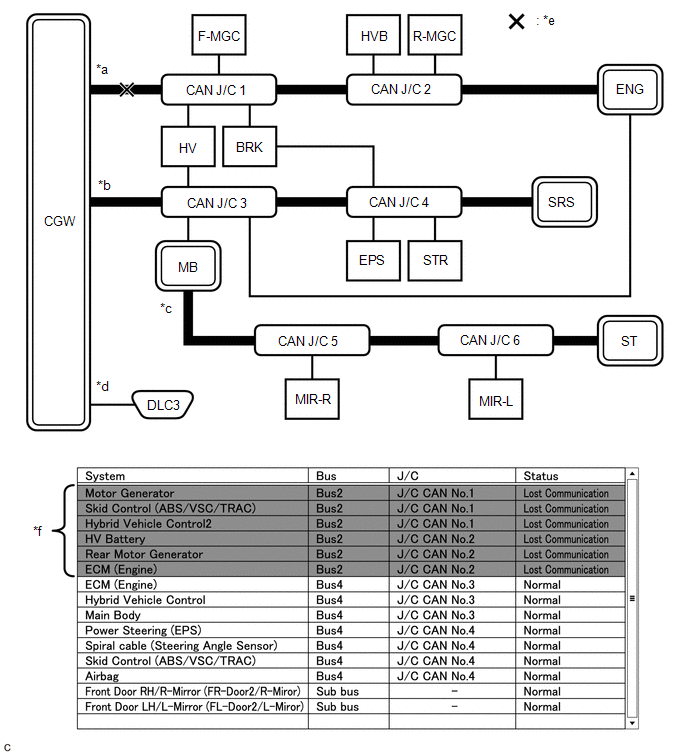

Open in both wires of the main bus line between the CGW and No. 1 CAN junction connector in Bus 2

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

HINT:

  • Due to the malfunction, almost all of the ECUs and sensors connected to Bus 2 will be displayed as not communicating and their background color will be red.
  • The malfunction in Bus 2 will not affect the other buses.
  • The malfunctioning part can be determined by inspecting for an open in the main bus line.
  • Make sure to perform the inspection to measure resistances of buses to determine the cause of the malfunction.

Details of Malfunction

Open in both wires of the main bus line between the No. 1 CAN junction connector and No. 2 CAN junction connector in Bus 2

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

HINT:

  • Due to the malfunction, ECUs or sensors farther from the CGW than the open in the wires will be displayed as not communicating and their background color will be red.
  • The malfunction in Bus 2 will not affect the other buses.
  • The malfunctioning part can be determined by inspecting for an open in the main bus line.
  • Make sure to perform the inspection to measure resistances of buses to determine the cause of the malfunction.

Details of Malfunction

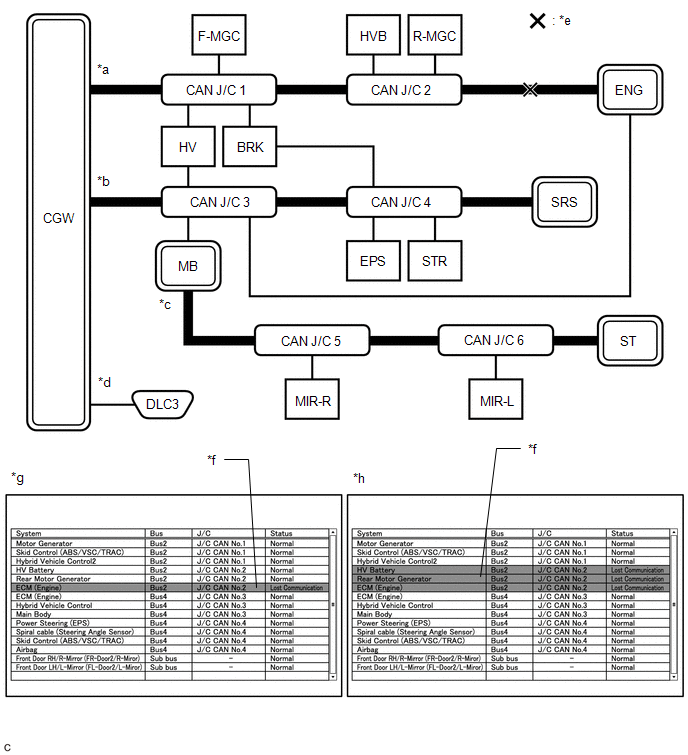

Open in both wires of the main bus line between the No. 2 CAN junction connector and ENG in Bus 2

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

*g

Pattern 1

*h

Pattern 2

HINT:

  • Even when the same part of the main bus line is open, depending on internal electrical noise which changes according to the position of the open in the line, the information displayed on the "Communication Bus Check" screen may differ.
  • In pattern 2, the information displayed may be the same as when there is an open in both wires in the main bus line between the No. 1 CAN junction connector and No. 2 CAN junction connector, which may make it difficult to determine the malfunctioning part.
  • The malfunction in Bus 2 will not affect the other buses.
  • Make sure to perform the inspection to measure resistances of buses to determine the cause of the malfunction.

(d) Problem Symptom Pattern C

Details of Malfunction

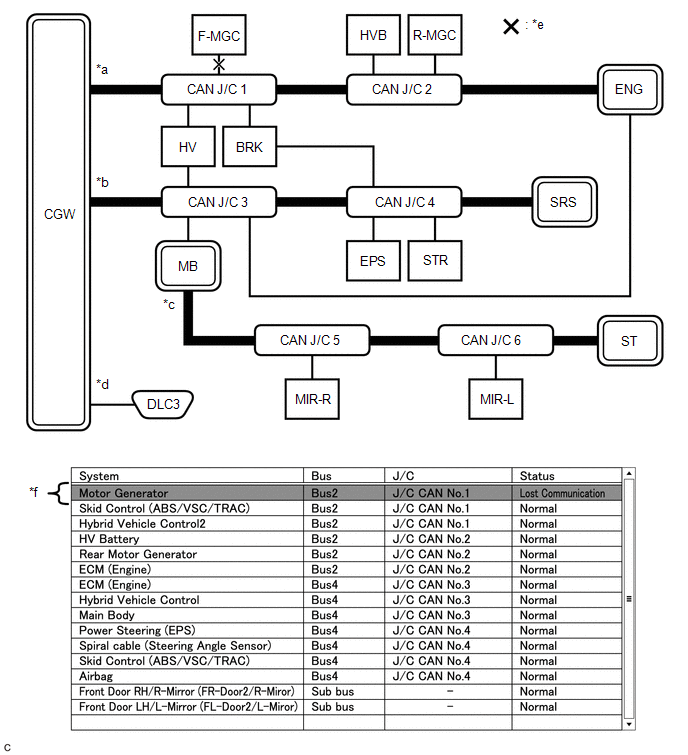

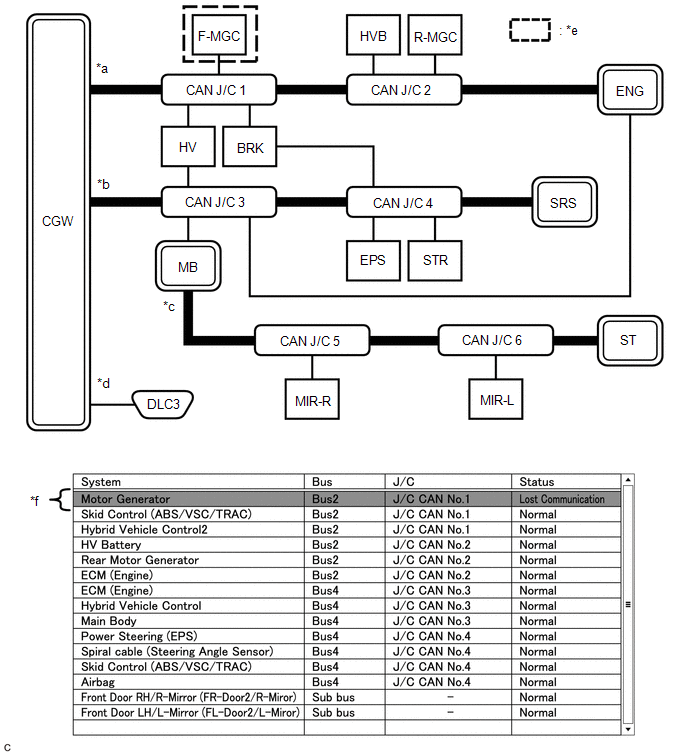

Open in both wires of the branch line connected to F-MGC in Bus 2

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

HINT:

The information displayed on the "Communication Bus Check" screen will be the same for an open in both wires of a branch line, an internal malfunction of an ECU or sensor or a malfunction in the power supplied to an ECU or sensor. In this example, the background color of the malfunctioning ECU or sensor will be red.

Details of Malfunction

  • Internal malfunction of F-MGC in Bus 2
  • Malfunction in the power supplied to F-MGC in Bus 2

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

HINT:

The information displayed on the "Communication Bus Check" screen will be the same for an open in both wires of a branch line, an internal malfunction of an ECU or sensor or a malfunction in the power supplied to an ECU or sensor. In this example, the background color of the malfunctioning ECU or sensor will be red.

Details of Malfunction

Open in both wires of the branch line connected to ENG in Bus 4

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

HINT:

  • The malfunction in Bus 4 will not affect the other buses.
  • Due to the malfunction, although ENG is communicating normally with CGW via Bus 2, it is not communicating with CGW via Bus 4. Consequently, it will be displayed as not communicating in Bus 4.

(e) Problem Symptom Pattern D

Details of Malfunction

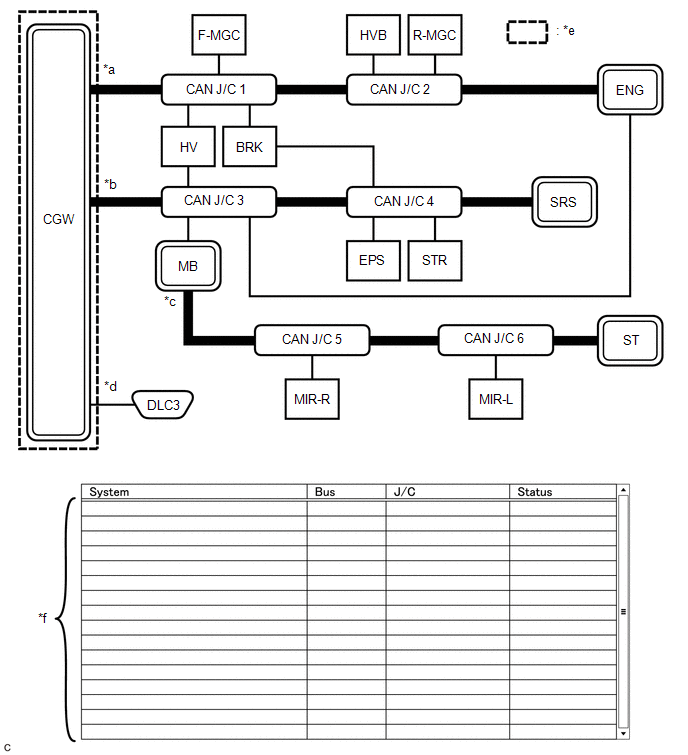

  • Internal malfunction of the CGW
  • Malfunction in the power supplied to the CGW

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Not displayed

HINT:

When there is no communication between the Techstream and the vehicle, no ECUs or sensors will be displayed.

Details of Malfunction

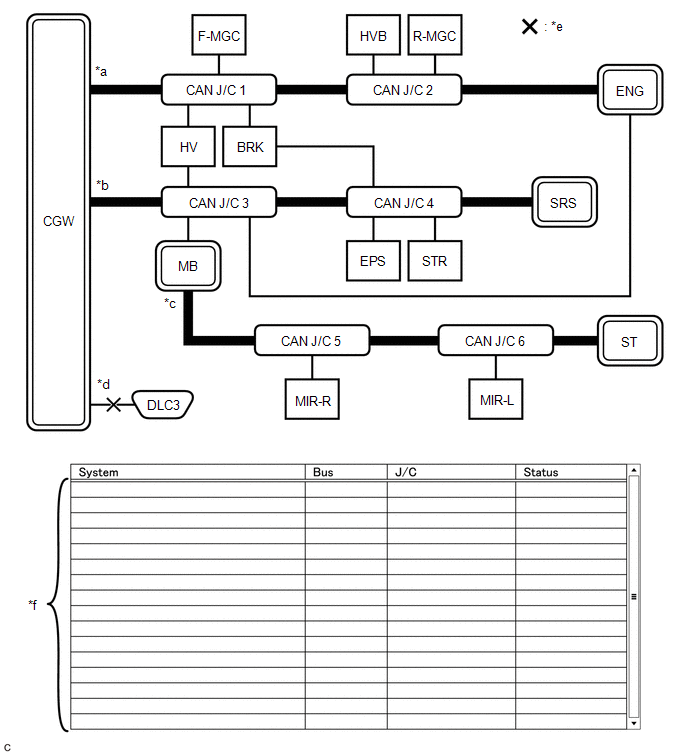

Open in both wires of the branch lines in the diagnosis bus

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Not displayed

HINT:

When there is no communication between the Techstream and the vehicle, no ECUs or sensors will be displayed.

(f) Problem Symptom Pattern E

Details of Malfunction

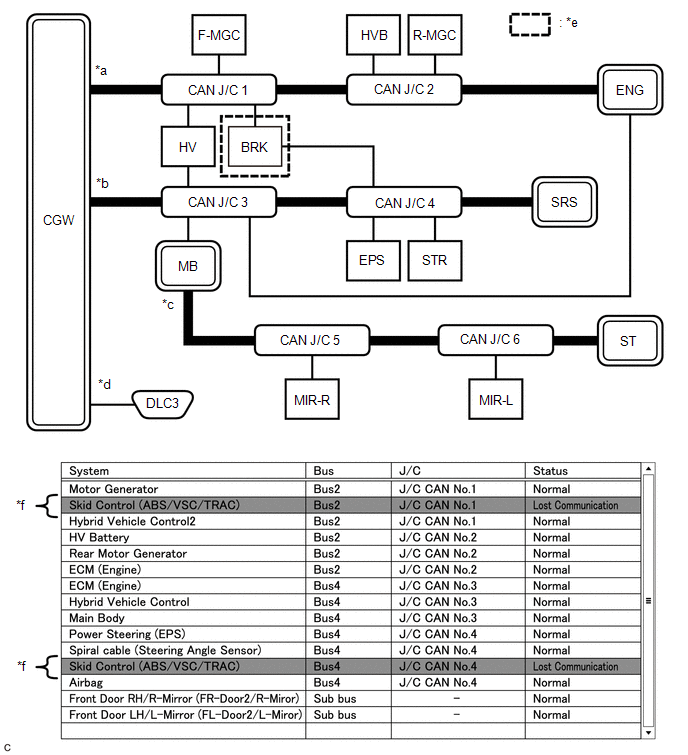

  • Internal malfunction of BRK
  • Malfunction in the power supplied to BRK

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

HINT:

The information displayed on the "Communication Bus Check" screen will be the same for an internal malfunction of an ECU or sensor, or a malfunction in the power supplied to an ECU or sensor.

Due to the malfunction, BRK is not communicating with the CGW via both Bus 2 and Bus 4. Consequently, the background color of BRK will be red for both Bus 2 and Bus 4.

(g) Problem Symptom Pattern F

Details of Malfunction

  • Open in a wire of the branch line connected to HV in Bus 4
  • Internal malfunction of HV in Bus 4

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

*g

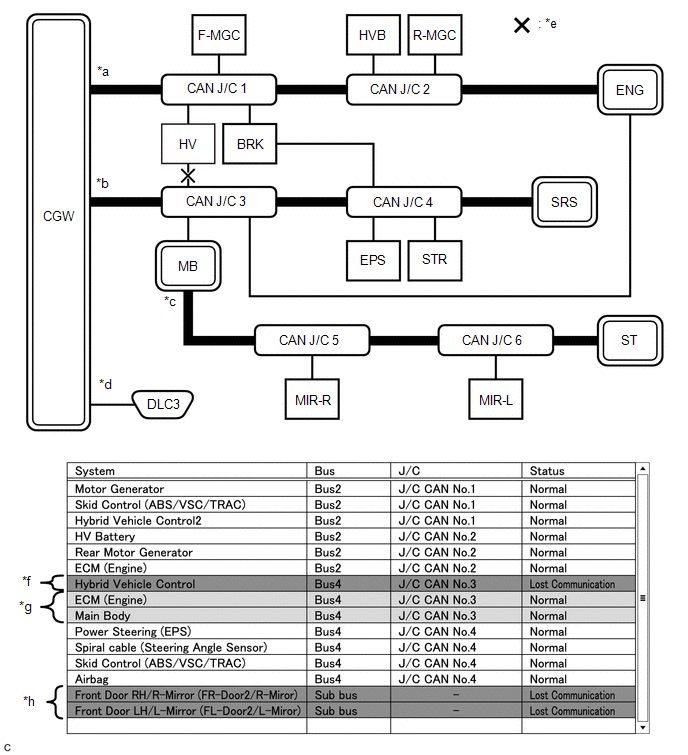

Background color intermittently becomes yellow or red

*h

Not displayed or background color is yellow or red

HINT:

  • In the "Communication Bus check" screen shown in the illustration, electrical noise in the CAN bus caused by an open in a wire in the branch line connected to HV interferes with the communication of MB causing unstable communication. Also, since MB is a gateway function equipped ECU, communication of ECUs connected to its respective sub bus will also be unstable.
  • In the "Communication Bus Check" screen shown in the illustration, because the background color of HV is red, it is suspected that HV is the most likely cause of the malfunction. Therefore, it is suspected that HV is not communicating.

(h) Problem Symptom Pattern G

Details of Malfunction

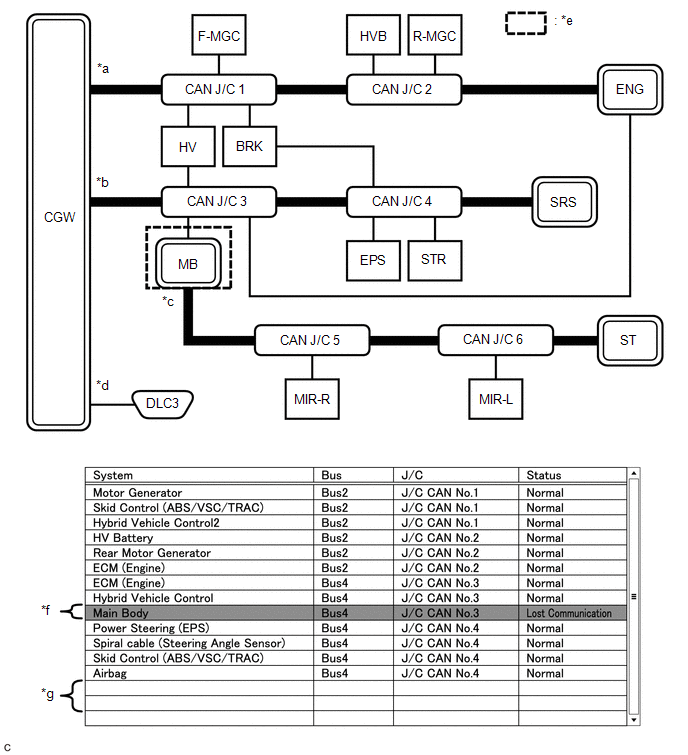

  • Open in both wires of the branch line connected to MB in Bus 4
  • Internal malfunction of MB in Bus 4
  • Malfunction in the power supplied to MB in Bus 4

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

*g

Not displayed

-

-

HINT:

  • If there is a communication malfunction in a gateway function equipped ECU, ECUs connected to its respective sub bus will also be affected and will not be displayed.
  • In the "Communication Bus Check" screen shown in the illustration, MB is a gateway function equipped ECU. Therefore, MB is suspected as not communicating.

(i) Problem Symptoms Pattern H

Details of Malfunction

  • Internal malfunction of MIR-L in the sub bus
  • Malfunction in the power supplied to MIR-L in the sub bus

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

HINT:

  • The malfunction in the sub bus will not affect the other buses.
  • When a gateway function equipped ECU memorizes ECUs and sensors connected to its respective sub bus and there is a communication malfunction in one of the ECUs or sensors, the background color of the ECU or sensor will change to red and the ECU or sensor will remain displayed.
  • The information displayed on the "Communication Bus Check" screen will be the same for an open in both wires of a branch line, an internal malfunction of an ECU or sensor or a malfunction in the power supplied to an ECU or sensor.

Details of Malfunction

Open in both wires of the branch line connected to MIR-L in the sub bus

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

HINT:

  • The malfunction in the sub bus will not affect the other buses.
  • When a gateway function equipped ECU memorizes ECUs and sensors connected to its respective sub bus and there is a communication malfunction in one of the ECUs or sensors, the background color of the ECU or sensor will change to red and the ECU or sensor will remain displayed.
  • The information displayed on the "Communication Bus Check" screen will be the same for an open in both wires of a branch line, an internal malfunction of an ECU or sensor or a malfunction in the power supplied to an ECU or sensor.

(j) Problem Symptom Pattern I

Details of Malfunction

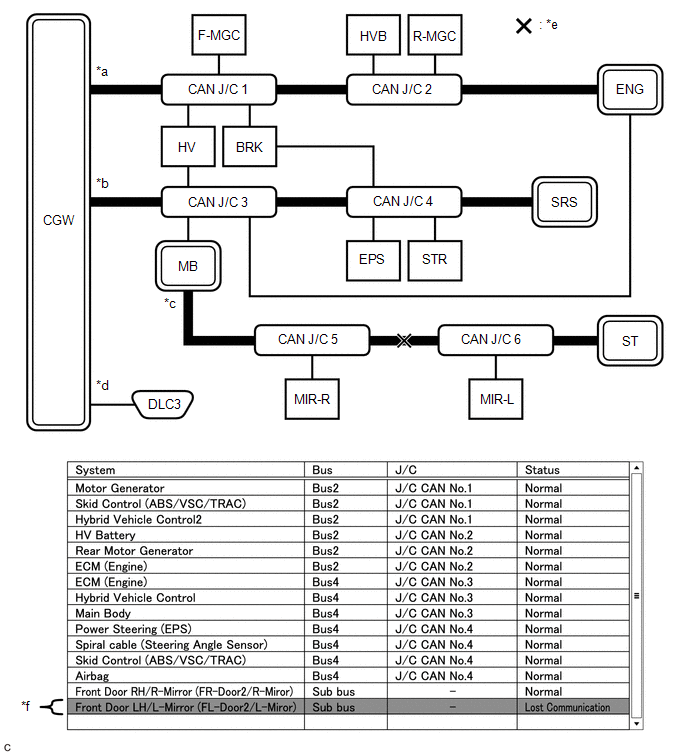

Open in both wires of the main bus line in the sub bus

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

HINT:

Due to the malfunction, ECUs or sensors farther from the sub bus monitoring ECU (gateway function equipped ECU) than the open in the wires will be displayed as not communicating and their background color will be red.

How to Use "Communication Bus check (Detail)" Screen in Inspection

(a) If the CAN communication system is currently normal but has communication stop history, determine the malfunctioning part using Communication Bus Check (Detail) as follows:

NOTICE:

  • The following CAN bus wiring diagram or communication bus check screen is provided only as an example. This wiring diagram or screen differs from the actual one for this vehicle.
  • The Lost Communication Time column displays the longest period of time in seconds that the central gateway ECU (network gateway ECU) detected a communication stop in the respective ECU or sensor.
  • The Lost Communication Trip column displays the trip in which the central gateway ECU (network gateway ECU) detected the longest communication stop in the respective ECU or sensor.
  • When using the combo box, it may be possible to select a sub bus from the drop down list that does not have any connected ECUs or sensors. This is not a malfunction and occurs when there is no optional device connected to a sub bus which is monitored by a sub bus monitoring ECU (gateway function equipped ECU).
  • In the drop down list, all sub buses applicable to the model are displayed (e.g. LIN communication sub buses are also displayed). For information on sub buses necessary to diagnose CAN communication system, refer to the System Diagram.

    Click here

HINT:

  • If the CAN communication system is currently malfunctioning, it is recommended to use Communication Bus Check rather than Communication Bus Check (Detail) for determining the suspected area.
  • The communication error history of ECUs or sensors which have communication error history can be displayed on the "Communication Bus Check (Detail)" screen.
  • Lost Communication Time and Lost Communication Trip are only displayed for the central bus.
  • Lost Communication Time and Lost Communication Trip are not displayed for sub buses.

(b) If there is an ECU or sensor displayed with a red background on the "Communication Bus Check (Detail)" screen to indicate that it was not communicating, it is suspected that the ECU or sensor was not communicating.

Details of Malfunction

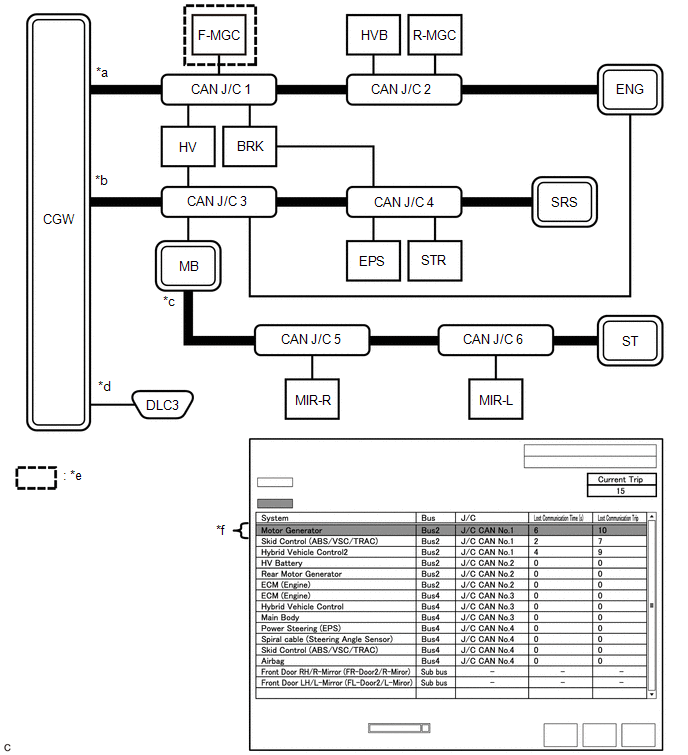

Past malfunction in the wire harness or power supplied to F-MGC in Bus 2

*a

Bus 2

*b

Bus 4

*c

Sub bus

*d

Diagnosis bus

*e

Location of malfunction

*f

Background color is red

Description of "Communication Bus Check (Detail)" Screen

Bus Type

Background Color

Connection Status

Bus

White

Either of the following:

  • Communication has been normal.
  • Lost Communication Time is below 6 seconds.

Red

Lost Communication Time is 6 seconds or more.

Not displayed

Either of the following:

  • The central gateway ECU (network gateway ECU) has an internal malfunction or cannot communicate with the Techstream.*1
  • No ECUs or sensors are connected to the bus.*2

Sub bus

White

Lost Communication Time is displayed as "-".

Not displayed

Either of the following:

  • The gateway function equipped ECU cannot communicate with the central gateway ECU.*3
  • No ECUs or sensors are connected to the sub bus.*4

HINT:

  • Check the values of Lost Communication Trip and Current Trip for the ECUs or sensors that have a red background color.
  • If the values of Lost Communication Trip and Current Trip are the same for an ECU or sensor, the ECU or sensor is currently not communicating. In this case, it is recommended to use Communication Bus Check rather than Communication Bus Check (Detail) for determining the suspected area.
  • In the "Communication Bus Check (Detail)" screen shown in the illustration, F-MGC had a communication malfunction in the 10th trip. Thus, it is suspected that F-MGC was not communicating.
  • *1: When the central gateway ECU (network gateway ECU) has an internal malfunction or cannot communicate with the Techstream, the name of buses, sub buses, ECUs and sensors will not be displayed.
  • *2: When no ECUs or sensors are connected to a bus, the message "There is no system found on the communication Bus." will be displayed.
  • *3: When a gateway function equipped ECU cannot communicate with the central gateway ECU (network gateway ECU), the name of sub buses and ECUs or sensors connected to the sub bus will not be displayed.
  • *4: When no ECUs or sensors are connected to the sub bus, the message "There is no system found on the communication Bus." will be displayed.

DTC TABLE BY ECU

HINT:

  • In the CAN communication system, the CAN communication DTCs of each ECU can be displayed using the Techstream.
  • If CAN communication system DTCs are output, the malfunction cannot be determined only by the DTCs. Perform troubleshooting according to How to Proceed with Troubleshooting.

    Click here

  • DTCs will only be stored if the Check Procedure is performed when the system is currently malfunctioning.

(a) Hybrid Vehicle Control ECU / Techstream Display "Hybrid Control"

Powertrain > Hybrid Control > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *1: Refer to Hybrid Control System.

    Click here

  • *2: Although it is displayed as a communication malfunction on the Techstream, the DTC is stored when there is an internal malfunction of the air conditioning amplifier assembly.

    Refer to Hybrid Control System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U010087

Lost Communication with ECM/PCM "A" Missing Message

The hybrid vehicle control ECU does not receive data from the ECM for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 2 seconds.

  • MIL illuminates.
  • Master warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U010487

Lost Communication with Cruise Control Module Missing Message

The hybrid vehicle control ECU does not receive data from the forward recognition camera for approximately 2 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The cruise control main switch is on.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the cruise control main switch on and wait for at least approximately 3 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U011087

Lost Communication with Drive Motor Control Module "A" Missing Message

The hybrid vehicle control ECU does not receive data from the inverter with converter assembly for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 2 seconds.

Master warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U012287

Lost Communication with Vehicle Dynamics Control Module Missing Message

The hybrid vehicle control ECU does not receive data from the brake booster with master cylinder assembly for approximately 3 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The cruise control main switch is on.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the cruise control main switch on and wait for at least approximately 4 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U012987

Lost Communication with Brake System Control Module Missing Message

The hybrid vehicle control ECU does not receive data from the brake booster with master cylinder assembly for approximately 3 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 2 seconds or more.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 5 seconds.

Master warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U014087

Lost Communication with Body Control Module Missing Message

The hybrid vehicle control ECU does not receive data from the main body ECU (multiplex network body ECU) for approximately 4 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

Master warning light illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U015187

Lost Communication with Restraints Control Module Missing Message

The hybrid vehicle control ECU does not receive data from the airbag ECU assembly for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 2 seconds.

Master warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U016487

Lost Communication with HVAC Control Module Missing Message

The hybrid vehicle control ECU does not receive data from the air conditioning amplifier assembly for approximately 11 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication with Hybrid/EV Powertrain Control Module Missing Message

The brake booster with master cylinder assembly does not receive data from the hybrid vehicle control ECU for approximately 1 second or more.

All conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The cruise control main switch is on.
  • Vehicle speed is 5 km/h (3 mph) or more.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Drive the vehicle at a speed of 5 km/h (3 mph) or more with the cruise control main switch on for approximately 2 seconds or more.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U029A87*1

Lost Communication with Hybrid/EV Battery Sensor Module Missing Message

The hybrid vehicle control ECU does not receive data from the battery smart unit for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 2 seconds.

  • MIL illuminates.
  • Master warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U042481*2

HVAC Control Module to Hybrid Powertrain Control Module Invalid Serial Data Received

The hybrid vehicle control ECU receives an abnormal operation value command from the air conditioning amplifier assembly for approximately 4 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 4 seconds or more.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U110787

Lost Communication with Power Management Module Missing Message

The hybrid vehicle control ECU does not receive data from the certification ECU (smart key ECU assembly) for approximately 4 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

Master warning light illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U117087

Lost Communication with Brake System Control Module (Secondary CAN Line) Missing Message

The hybrid vehicle control ECU does not receive data from the brake booster with master cylinder assembly for approximately 3 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 2 seconds or more.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 5 seconds.

  • MIL illuminates.
  • Master warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

(b) Inverter with Converter Assembly / Techstream Display "Motor Generator"

Powertrain > Motor Generator > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U010087

Lost Communication With ECM/PCM "A" Missing Message

The inverter with converter assembly does not receive data from the ECM for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the inverter with converter assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

  • MIL illuminates.
  • Master warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication With Hybrid Powertrain Control Module Missing Message

The inverter with converter assembly does not receive data from the hybrid vehicle control ECU for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the inverter with converter assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

  • MIL illuminates.
  • Master warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U117087

Lost Communication With Brake System Control Module(ch2) Missing Message

The inverter with converter assembly does not receive data from the brake booster with master cylinder assembly for approximately 3 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 2 seconds or more.
  • The power source voltage of the inverter with converter assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

  • MIL illuminates.
  • Master warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

(c) ECM / Techstream Display "Engine"

Powertrain > Engine > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: The ECM stores DTCs for the grille shutter system.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U011087

Lost Communication with Drive Motor Control Module "A" Missing Message

The ECM does not receive data from the inverter with converter assembly for approximately 6 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the ECM is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

MIL illuminates.

-

DTC is stored until it is cleared using the Techstream.

U012987

Lost Communication with Brake System Control Module Missing Message

The ECM does not receive data from the brake booster with master cylinder assembly for approximately 3 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 2 seconds or more.
  • The power source voltage of the ECM is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

MIL illuminates.

-

DTC is stored until it is cleared using the Techstream.

U028487

Lost Communication with Active Grille Air Shutter Module "A" Missing Message

The ECM does not receive data from the swing grille actuator assembly for approximately 11 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the ECM is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 25 seconds.

MIL illuminates.

-

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication with Hybrid Powertrain Control Module Missing Message

The ECM does not receive data from the hybrid vehicle control ECU for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the ECM is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

MIL illuminates.

-

DTC is stored until it is cleared using the Techstream.

U129387*

Lost Communication between Hybrid Powertrain Control Module and Active Grille Air Shutter Missing Message

The swing grille actuator assembly does not receive data from the hybrid vehicle control ECU for approximately 6 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the swing grille actuator assembly is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

MIL illuminates.

-

DTC is stored until it is cleared using the Techstream.

(d) Brake Booster with Master Cylinder Assembly / Techstream Display "ABS/VSC/TRAC"

Chassis > ABS/VSC/TRAC > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0073

Control Module Communication Bus Off

One of the following conditions is met:

  • A communication error (bus-off status) occurs consecutively for approximately 5 seconds or more.
  • Delayed reception of data from the steering sensor and airbag ECU assembly continues for 1 second or more.
  • The following condition occurs 10 times or more within 60 seconds:
    • Delayed reception of data from the steering sensor and airbag ECU assembly occurs once or more within 5 seconds.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the brake booster with master cylinder assembly is 10 to 17.4 V.

Turn the power switch on (IG) and wait for at least approximately 61 seconds.

  • ABS warning light illuminates.
  • Brake warning light / red (malfunction) illuminates.
  • Brake warning light / yellow (minor malfunction) illuminates.
  • Slip indicator light illuminates.
  • Brake hold operated indicator light blinks.

-

DTC is stored until it is cleared using the Techstream.

U0100

Lost Communication With ECM/PCM "A"

Either of the following conditions is met:

  • Delayed reception of data from the ECM continues for approximately 2 seconds or more.
  • The following condition occurs 10 times or more within 60 seconds:
    • Delayed reception of data from the ECM occurs once or more within 5 seconds.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the brake booster with master cylinder assembly is 10 to 17.4 V.

Turn the power switch on (IG) and wait for at least approximately 61 seconds.

MIL illuminates.

-

DTC is stored until it is cleared using the Techstream.

U0110

Lost Communication With Drive Motor Control Module "A"

The brake booster with master cylinder assembly does not receive data from the inverter with converter assembly for approximately 2 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the brake booster with master cylinder assembly is 10 to 17.4 V.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

  • Brake warning light / yellow (minor malfunction) illuminates.
  • Slip indicator light illuminates.
  • Brake hold operated indicator light blinks.

-

DTC is stored until it is cleared using the Techstream.

U0120

Lost Communication With Starter / Generator Control Module

The brake booster with master cylinder assembly does not receive data from the certification ECU (smart key ECU assembly) for approximately 3 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the brake booster with master cylinder assembly is 10 to 17.4 V.

Turn the power switch on (IG) and wait for at least approximately 4 seconds.

  • Brake warning light / yellow (minor malfunction) illuminates.
  • Slip indicator light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U0124

Lost Communication With Lateral Acceleration Sensor Module

Either of the following conditions is met:

  • Delayed reception of data from the airbag ECU assembly continues for 1 second or more.
  • The following condition occurs 10 times or more within 60 seconds:
    • Delayed reception of data from the airbag ECU assembly occurs once or more within 5 seconds.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the brake booster with master cylinder assembly is 10 to 17.4 V.

Turn the power switch on (IG) and wait for at least approximately 61 seconds.

  • ABS warning light illuminates.
  • Brake warning light / yellow (minor malfunction) illuminates.
  • Slip indicator light illuminates.
  • Brake hold operated indicator light blinks.

-

DTC is stored until it is cleared using the Techstream.

U0126

Lost Communication With Steering Angle Sensor Module

Either of the following conditions is met:

  • Delayed reception of data from the steering sensor continues for 1 second or more.
  • The following condition occurs 10 times or more within 60 seconds:
    • Delayed reception of data from the steering sensor occurs once or more within 5 seconds.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the brake booster with master cylinder assembly is 10 to 17.4 V.

Turn the power switch on (IG) and wait for at least approximately 61 seconds.

  • Slip indicator light illuminates.
  • Brake hold operated indicator light blinks.

-

DTC is stored until it is cleared using the Techstream.

U0128

Lost Communication With EPB Module

The brake booster with master cylinder assembly does not receive data from the brake actuator assembly for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the brake booster with master cylinder assembly is 10 to 17.4 V.

Turn the power switch on (IG) and wait for at least approximately 2 seconds.

Brake hold operated indicator light blinks.

-

DTC is stored until it is cleared using the Techstream.

U0140

Lost Communication with Body Control Module

The brake booster with master cylinder assembly does not receive data from the main body ECU (multiplex network body ECU) for approximately 2 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the brake booster with master cylinder assembly is 10 to 17.4 V.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0151

Lost Communication With Restraints Control Module

The brake booster with master cylinder assembly does not receive data from the airbag ECU assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the brake booster with master cylinder assembly is 10 to 17.4 V.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0293

Lost Communication With Hybrid Vehicle Control System

The brake booster with master cylinder assembly does not receive data from the hybrid vehicle control ECU for approximately 2 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the brake booster with master cylinder assembly is 10 to 17.4 V.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

  • Brake warning light / yellow (minor malfunction) illuminates.
  • Slip indicator light illuminates.
  • Brake hold operated indicator light blinks.

-

DTC is stored until it is cleared using the Techstream.

(e) Rack and Pinion Power Steering Gear Assembly / Techstream Display "EMPS"

Chassis > EMPS > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0126

Lost Communication with Steering Angle Sensor Module

The rack and pinion power steering gear assembly does not receive data from the steering sensor for approximately 6 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the rack and pinion power steering gear assembly is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 9 seconds.

-

-

DTC remains stored only while malfunction is occurring.

U0129

Lost Communication with Brake System Control Module

The rack and pinion power steering gear assembly does not receive data from the brake booster with master cylinder assembly for approximately 3 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the rack and pinion power steering gear assembly is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 6 seconds.

EPS warning light illuminates.

-

DTC remains stored only while malfunction is occurring.

U023A

Lost Communication with Front Camera Module

The rack and pinion power steering gear assembly does not receive data from the forward recognition camera for approximately 2 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the rack and pinion power steering gear assembly is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 5 seconds.

-

-

DTC remains stored only while malfunction is occurring.

U0293

Lost Communication with Hybrid Control Module

The rack and pinion power steering gear assembly does not receive data from the hybrid vehicle control ECU for approximately 300 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the rack and pinion power steering gear assembly is 9 V or more.
  • Vehicle speed is 20 km/h (12 mph) or more.

Drive the vehicle at a speed of 20 km/h (12 mph) or more for approximately 300 seconds or more.

-

-

DTC remains stored only while malfunction is occurring.

(f) Airbag ECU Assembly / Techstream Display "SRS Airbag"

Body Electrical > SRS Airbag > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0154

Lost Communication with Restraints Occupant Classification System Module

The airbag ECU assembly does not receive data from the occupant detection ECU for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the airbag ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

SRS warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

(g) Occupant Detection ECU / Techstream Display "Occupant Detection"

Body Electrical > Occupant Detection > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0125

Lost Communication With Multi-axis Acceleration Sensor Module

The occupant detection ECU does not receive data from the airbag ECU assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the occupant detection ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

SRS warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U0129

Lost Communication With Brake System Control Module

The occupant detection ECU does not receive data from the brake booster with master cylinder assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the occupant detection ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

SRS warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

(h) Main Body ECU (Multiplex Network Body ECU) / Techstream Display "Main Body"

Body Electrical > Main Body > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: w/ CAN Compatible Optional Devices

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0100

Lost Communication With ECM/PCM "A"

The main body ECU (multiplex network body ECU) does not receive data from the ECM for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0101

Lost Communication with TCM

The main body ECU (multiplex network body ECU) does not receive data from the hybrid vehicle control ECU for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0120

Lost Communication With Starter / Generator Control Module

The main body ECU (multiplex network body ECU) does not receive data from the certification ECU (smart key ECU assembly) for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 10 seconds or more elapse.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0126

Lost Communication with Steering Angle Sensor Module

The main body ECU (multiplex network body ECU) does not receive data from the steering sensor for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 10 seconds or more elapse.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0129

Lost Communication with Brake System Control Module

The main body ECU (multiplex network body ECU) does not receive data from the brake booster with master cylinder assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0151

Lost Communication with Restraints Control Module

The main body ECU (multiplex network body ECU) does not receive data from the airbag ECU assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0155

Lost Communication with Instrument Panel Cluster (IPC) Control Module

The main body ECU (multiplex network body ECU) does not receive data from the combination meter assembly for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 10 seconds or more elapse.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0163

Lost Communication with Navigation Control Module

The main body ECU (multiplex network body ECU) does not receive data from the radio receiver assembly for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (ACC OFF → ON, IG OFF → ON) is detected and approximately 10 seconds or more elapse.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0164

Lost Communication with HVAC Control Module

The main body ECU (multiplex network body ECU) does not receive data from the air conditioning amplifier assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0182

Lost Communication with AFS

The main body ECU (multiplex network body ECU) does not receive data from the headlight ECU sub-assembly LH for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0199

Lost Communication with "Door Control Module A"

The main body ECU (multiplex network body ECU) does not receive data from the outer mirror control ECU assembly RH for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0200

Lost Communication with "Door Control Module B"

The main body ECU (multiplex network body ECU) does not receive data from the outer mirror control ECU assembly LH for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0208

Lost Communication with "Seat Control Module A"

The main body ECU (multiplex network body ECU) does not receive data from the position control ECU assembly LH for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0230

Lost Communication with Rear Gate Module

The main body ECU (multiplex network body ECU) does not receive data from the luggage closer motor assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U023A

Lost Communication With Image Processing Module "A"

The main body ECU (multiplex network body ECU) does not receive data from the forward recognition camera for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0293

Lost Communication with Hybrid Powertrain Control Module

The main body ECU (multiplex network body ECU) does not receive data from the hybrid vehicle control ECU for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0327

Software Incompatibility with Vehicle Security Control Module

The main body ECU (multiplex network body ECU) does not receive data from the certification ECU (smart key ECU assembly) for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 10 seconds or more elapse.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1106

Lost Communication with Electric Parking Brake Module

The main body ECU (multiplex network body ECU) does not receive data from the brake actuator assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1115

Lost Communication with Tilt & Telescopic Module

The main body ECU (multiplex network body ECU) does not receive data from the multiplex tilt and telescopic ECU for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1117*

Lost Communication with Accessory Gateway

The main body ECU (multiplex network body ECU) does not receive data from the option connector (bus buffer ECU) for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 10 seconds or more elapse.
  • The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(i) Certification ECU (Smart Key ECU Assembly) / Techstream Display "Smart Access"

Body Electrical > Smart Access > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: w/ CAN Compatible Optional Devices

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0100

Lost Communication With ECM/PCM "A"

The certification ECU (smart key ECU assembly) does not receive data from the ECM for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 10 seconds or more elapse.
  • The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0142

Lost Communication with Body Control Module "B"

The certification ECU (smart key ECU assembly) does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 10 seconds or more elapse.
  • The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0155

Lost Communication with Instrument Panel Cluster (IPC) Control Module

The certification ECU (smart key ECU assembly) does not receive data from the combination meter assembly for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 10 seconds or more elapse.
  • The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0230

Lost Communication with Rear Gate Module

The certification ECU (smart key ECU assembly) does not receive data from the luggage closer motor assembly for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 10 seconds or more elapse.
  • The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0293

Lost Communication With Hybrid Vehicle Control System

The certification ECU (smart key ECU assembly) does not receive data from the hybrid vehicle control ECU for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 10 seconds or more elapse.
  • The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1117*

Lost Communication with Accessory Gateway

The certification ECU (smart key ECU assembly) does not receive data from the option connector (bus buffer ECU) for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 10 seconds or more elapse.
  • The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(j) Certification ECU (Smart Key ECU Assembly) / Techstream Display "Power Source Control"

Body Electrical > Power Source Control > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: w/ CAN Compatible Optional Devices

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0140

Lost Communication with Body Control Module

The certification ECU (smart key ECU assembly) does not receive data from the main body ECU (multiplex network body ECU) for approximately 3 seconds or more.

Both conditions are met:

  • The power switch is on (IG).
  • The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0155

Lost Communication with Instrument Panel Cluster (IPC) Control Module

The certification ECU (smart key ECU assembly) does not receive data from the combination meter assembly for approximately 4 seconds or more.

Both conditions are met:

  • The power switch is on (IG).
  • The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 4 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0293

HV ECU Communication

The certification ECU (smart key ECU assembly) does not receive data from the hybrid vehicle control ECU for approximately 4 seconds or more.

Both conditions are met:

  • The power switch is on (IG).
  • The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 4 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1117*

Lost Communication with Accessory Gateway

The certification ECU (smart key ECU assembly) does not receive data from the option connector (bus buffer ECU) for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG).
  • The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 5 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(k) Headlight ECU Sub-assembly LH (for LED Type Turn Signal Light) / Techstream Display "AFS"

Body Electrical > AFS > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Lighting System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0073

Control Module Communication Bus Off

The headlight ECU sub-assembly LH does not send/receive data.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0101

Lost Communication with TCM

The headlight ECU sub-assembly LH does not receive data from the hybrid vehicle control ECU for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0126

Lost Communication with Steering Angle Sensor Module

The headlight ECU sub-assembly LH does not receive data from the steering sensor for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0129

Lost Communication with Brake System Control Module

The headlight ECU sub-assembly LH does not receive data from the brake booster with master cylinder assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0142

Lost Communication with Body Control Module "B"

The headlight ECU sub-assembly LH does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0155

Lost Communication with Instrument Panel Cluster (IPC) Control Module

The headlight ECU sub-assembly LH does not receive data from the combination meter assembly for approximately 30 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 33 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0242

Lost Communication With Headlamp Control Module "B"

The headlight ECU sub-assembly LH does not receive data from the headlight ECU sub-assembly RH for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0293

Lost Communication with Hybrid Vehicle Control System

The headlight ECU sub-assembly LH does not receive data from the hybrid vehicle control ECU for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1000*

CAN Communication Failure(Message Registry)

CAN communication malfunction (message register)

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(l) Headlight ECU Sub-assembly LH (for Bulb Type Turn Signal Light) / Techstream Display "HL AutoLeveling"

Body Electrical > HL AutoLeveling > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Lighting System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0073

Control Module Communication Bus Off

The headlight ECU sub-assembly LH does not send/receive data.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0101

Lost Communication with TCM

The headlight ECU sub-assembly LH does not receive data from the hybrid vehicle control ECU for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0126

Lost Communication with Steering Angle Sensor Module

The headlight ECU sub-assembly LH does not receive data from the steering sensor for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0129

Lost Communication with Brake System Control Module

The headlight ECU sub-assembly LH does not receive data from the brake booster with master cylinder assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0142

Lost Communication with Body Control Module "B"

The headlight ECU sub-assembly LH does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0155

Lost Communication with Instrument Panel Cluster (IPC) Control Module

The headlight ECU sub-assembly LH does not receive data from the combination meter assembly for approximately 30 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 33 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0242

Lost Communication With Headlamp Control Module "B"

The headlight ECU sub-assembly LH does not receive data from the headlight ECU sub-assembly RH for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0293

Lost Communication with Hybrid Vehicle Control System

The headlight ECU sub-assembly LH does not receive data from the hybrid vehicle control ECU for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1000*

CAN Communication Failure(Message Registry)

CAN communication malfunction (message register)

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly LH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(m) Headlight ECU Sub-assembly RH (for LED Type Turn Signal Light) / Techstream Display "AFS (Sub)"

Body Electrical > AFS (Sub) > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Lighting System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0073

Control Module Communication Bus Off

The headlight ECU sub-assembly RH does not send/receive data.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly RH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0126

Lost Communication with Steering Angle Sensor Module

The headlight ECU sub-assembly RH does not receive data from the steering sensor for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly RH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0142

Lost Communication with Body Control Module "B"

The headlight ECU sub-assembly RH does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly RH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0182

Lost Communication With Lighting Control Module Front

The headlight ECU sub-assembly RH does not receive data from the headlight ECU sub-assembly LH for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly RH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1000*

CAN Communication Failure(Message Registry)

CAN communication malfunction (message register)

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly RH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(n) Headlight ECU Sub-assembly RH (for Bulb Type Turn Signal Light) / Techstream Display "HL AutoLeveling (Sub)"

Body Electrical > HL AutoLeveling (Sub) > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Lighting System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0073

Control Module Communication Bus Off

The headlight ECU sub-assembly RH does not send/receive data.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly RH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0126

Lost Communication with Steering Angle Sensor Module

The headlight ECU sub-assembly RH does not receive data from the steering sensor for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly RH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0142

Lost Communication with Body Control Module "B"

The headlight ECU sub-assembly RH does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly RH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0182

Lost Communication With Lighting Control Module Front

The headlight ECU sub-assembly RH does not receive data from the headlight ECU sub-assembly LH for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly RH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1000*

CAN Communication Failure(Message Registry)

CAN communication malfunction (message register)

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the headlight ECU sub-assembly RH is 9 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(o) Combination Meter Assembly / Techstream Display "Combination Meter"

Body Electrical > Combination Meter > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: w/ CAN Compatible Optional Devices

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U010087

Lost Communication with ECM/PCM "A" Missing Message

The combination meter assembly does not receive data from the ECM for approximately 4 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

MIL illuminates.

-

DTC is stored until it is cleared using the Techstream.

U012687

Lost Communication with Steering Angle Sensor Module Missing Message

The combination meter assembly does not receive data from the steering sensor for approximately 4 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U012987

Lost Communication with Brake System Control Module Missing Message

The combination meter assembly does not receive data from the brake booster with master cylinder assembly for approximately 4 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

  • Brake warning light / red (malfunction) illuminates.
  • Slip indicator light illuminates.
  • ABS warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U013187

Lost Communication with Power Steering Control Module Missing Message

The combination meter assembly does not receive data from the rack and pinion power steering gear assembly for approximately 4 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

EPS warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U014087

Lost Communication with Body Control Module "B" Missing Message

The combination meter assembly does not receive data from the main body ECU (multiplex network body ECU) for approximately 5 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

Tire pressure warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U015187

Lost Communication with Restraints Control Module Missing Message

The combination meter assembly does not receive data from the airbag ECU assembly for approximately 5 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

SRS warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U016387

Lost Communication with Navigation Control Module Missing Message

The combination meter assembly does not receive data from the radio receiver assembly for approximately 5 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U016487

Lost Communication with HVAC Control Module Missing Message

The combination meter assembly does not receive data from the air conditioning amplifier assembly for approximately 5 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U016887

Software Incompatibility with Vehicle Security Control Module Missing Message

The combination meter assembly does not receive data from the certification ECU (smart key ECU assembly) for approximately 5 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U018287

Lost Communication with Lighting Control Module Front

The combination meter assembly does not receive data from the headlight ECU sub-assembly LH for approximately 5 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U023087

Lost Communication with Rear Gate Module Missing Message

The combination meter assembly does not receive data from the luggage closer motor assembly for approximately 5 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U023387

Lost Communication with Side Obstacle Detection Control Module "B" Missing Message

The combination meter assembly does not receive data from the blind spot monitor sensor RH for approximately 5 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U023A87

Lost Communication with Image Processing Module "A" Missing Message

The combination meter assembly does not receive data from the forward recognition camera for approximately 5 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication with Hybrid/EV Powertrain Vehicle Control System Missing Message

The combination meter assembly does not receive data from the hybrid vehicle control ECU for approximately 4 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U110687

Lost Communication with Electric Parking Brake Module Missing Message

The combination meter assembly does not receive data from the brake actuator assembly for approximately 4 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U111087

Lost Communication with Intuitive Parking Assist Module Missing Message

The combination meter assembly does not receive data from the clearance warning ECU assembly for approximately 5 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U111287

Lost Communication with Combination Switch Module Missing Message

The combination meter assembly does not receive data from the steering sensor for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U111787*

Lost Communication with Accessory Gateway Missing Message

The combination meter assembly does not receive data from the option connector (bus buffer ECU) for approximately 5 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U113387

Lost Communication with PMN Module Missing Message

The combination meter assembly does not receive data from the certification ECU (smart key ECU assembly) for approximately 4 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 3 seconds or more elapse.
  • The power source voltage of the combination meter assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(p) Air Conditioning Amplifier Assembly / Techstream Display "Air Conditioner"

Body Electrical > Air Conditioner > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0100

Lost Communication With ECM/PCM "A"

The air conditioning amplifier assembly does not receive data from the ECM for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the air conditioning amplifier assembly is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0131

Lost Communication With Power Steering Control Module

The air conditioning amplifier assembly does not receive data from the rack and pinion power steering gear assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the air conditioning amplifier assembly is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0142

Lost Communication With Body Control Module "B"

The air conditioning amplifier assembly does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the air conditioning amplifier assembly is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0151

Lost Communication With Restraints Control Module

The air conditioning amplifier assembly does not receive data from the airbag ECU assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the air conditioning amplifier assembly is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0155

Lost Communication With Instrument Panel Cluster (IPC) Control Module

The air conditioning amplifier assembly does not receive data from the combination meter assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the air conditioning amplifier assembly is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0163

Lost Communication With Navigation Control Module

The air conditioning amplifier assembly does not receive data from the radio receiver assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the air conditioning amplifier assembly is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0293

Lost Communication With HV ECU

The air conditioning amplifier assembly does not receive data from the hybrid vehicle control ECU for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the air conditioning amplifier assembly is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(q) Meter Mirror Sub-assembly / Techstream Display "Head Up Display"

Body Electrical > Head Up Display > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U010087

Lost Communication with ECM/PCM "A" Missing Message

The meter mirror sub-assembly does not receive data from the ECM for approximately 4 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the meter mirror sub-assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U012987

Lost Communication with Brake System Control Module Missing Message

The meter mirror sub-assembly does not receive data from the brake booster with master cylinder assembly for approximately 4 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the meter mirror sub-assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U014087

Lost Communication with Body Control Module "B" Missing Message

The meter mirror sub-assembly does not receive data from the main body ECU (multiplex network body ECU) for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the meter mirror sub-assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U015587

Lost Communication with Instrument Panel Cluster (IPC) Control Module Missing Message

The meter mirror sub-assembly does not receive data from the combination meter assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the meter mirror sub-assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U016387

Lost Communication with Navigation Control Module Missing Message

The meter mirror sub-assembly does not receive data from the radio receiver assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the meter mirror sub-assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U016487

Lost Communication with HVAC Control Module Missing Message

The meter mirror sub-assembly does not receive data from the air conditioning amplifier assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the meter mirror sub-assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U023A87

Lost Communication with Image Processing Module "A" Missing Message

The meter mirror sub-assembly does not receive data from the forward recognition camera for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the meter mirror sub-assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication with Hybrid/EV Powertrain Control Module Missing Message

The meter mirror sub-assembly does not receive data from the hybrid vehicle control ECU for approximately 4 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the meter mirror sub-assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U111087

Lost Communication with Intuitive Parking Assist Module Missing Message

The meter mirror sub-assembly does not receive data from the clearance warning ECU assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the meter mirror sub-assembly is 10.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(r) Hybrid Vehicle Control ECU / Techstream Display "Radar Cruise1"

Powertrain > Radar Cruise1 > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U010487

Lost Communication with Cruise Control Module Missing Message

The hybrid vehicle control ECU does not receive data from the forward recognition camera for approximately 2 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The cruise control main switch is on.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the cruise control main switch on and wait for at least approximately 3 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U012287

Lost Communication with Vehicle Dynamics Control Module Missing Message

The hybrid vehicle control ECU does not receive data from the brake booster with master cylinder assembly for approximately 3 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The cruise control main switch is on.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Turn the cruise control main switch on and wait for at least approximately 4 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication with Hybrid Powertrain Control Module Missing Message

The brake booster with master cylinder assembly does not receive data from the hybrid vehicle control ECU for approximately 1 second or more.

All conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The cruise control main switch is on.
  • Vehicle speed is 30 km/h (20 mph) or more.
  • The power source voltage of the hybrid vehicle control ECU is 9.5 V or more.

Drive the vehicle at a speed of 30 km/h (20 mph) or more with the cruise control main switch on for approximately 2 seconds or more.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

(s) Forward Recognition Camera / Techstream Display "Radar Cruise2"

Powertrain > Radar Cruise2 > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Dynamic Radar Cruise Control System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U012587

Lost Communication with Yaw Rate Sensor Module

The forward recognition camera does not receive data from the airbag ECU assembly for approximately 1 second or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 4 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U012687

Lost Communication with Steering Angle Sensor Module

The forward recognition camera does not receive data from the steering sensor for approximately 1 second or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 4 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U012987

Lost Communication with Brake System Control Module

The forward recognition camera does not receive data from the brake booster with master cylinder assembly for approximately 2 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 5 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U015587

Lost Communication with Instrument Panel Cluster (IPC) Control Module

The forward recognition camera does not receive data from the combination meter assembly for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 8 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U023587*

Lost Communication with Control Front Distance Range Sensor Missing Message

The forward recognition camera does not receive data from the millimeter wave radar sensor assembly for approximately 2 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 5 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication with Hybrid Vehicle Control System

The forward recognition camera does not receive data from the hybrid vehicle control ECU for approximately 1 second or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 4 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U030051*

Internal Control Module Software Incompatibility Not Programmed

The control system information sent from hybrid vehicle control ECU remains undefined by the forward recognition camera for 3 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 6 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U030057*

Internal Control Module Software Incompatibility Invalid / Incompatible Software Component

The vehicle information sent from the hybrid vehicle control ECU does not match that stored in the forward recognition camera for 1 second or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 4 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U031851*

Software Incompatibility with Brake System Control Module Not Programmed

The vehicle information sent from brake booster with master cylinder assembly remains undefined by the forward recognition camera for 3 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 6 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U031857*

Software Incompatibility with Brake System Control Module Invalid / Incompatible Software Component

The vehicle information sent from the brake booster with master cylinder assembly does not match that stored in the forward recognition camera for 2 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 5 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U032251*

Software Incompatibility with Body Control Module Not Programmed

The vehicle information sent from main body ECU (multiplex network body ECU) remains undefined by the forward recognition camera for 6 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 9 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U032257*

Software Incompatibility with Body Control Module Invalid / Incompatible Software Component

The vehicle information sent from the main body ECU (multiplex network body ECU) does not match that stored in the forward recognition camera for 4 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 7 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U059481*

Invalid Data Received from Hybrid/EV Powertrain Control Module Invalid Serial Data Received

The hybrid vehicle control ECU does not receive data from the forward recognition camera for approximately 2 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 5 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U110687

Lost Communication with Electric Parking Brake Module Missing Message

The forward recognition camera does not receive data from the brake actuator assembly for approximately 2 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The cruise control main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the cruise control main switch on and wait for at least approximately 5 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

(t) Forward Recognition Camera / Techstream Display "Pre-Collision System"

Body Electrical > Pre-Collision System > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Pre-Collision System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U012587

Lost Communication with Yaw Rate Sensor Module

The forward recognition camera does not receive data from the airbag ECU assembly for approximately 1 second or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 5 km/h (3 mph) or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Drive the vehicle at a speed of 5 km/h (3 mph) or more for approximately 4 seconds or more.

PCS warning light illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U012687

Lost Communication with Steering Angle Sensor Module

The forward recognition camera does not receive data from the steering sensor for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 4 seconds.

PCS warning light illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U012987

Lost Communication with Brake System Control Module

The forward recognition camera does not receive data from the brake booster with master cylinder assembly for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 4 seconds.

PCS warning light illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U023587*

Lost Communication with Cruise Control Front Distance Range Sensor

The forward recognition camera does not receive data from the millimeter wave radar sensor assembly for approximately 2 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 5 seconds.

PCS warning light illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U023A87*

Lost Communication with Image Processing Module "A"

The brake booster with master cylinder assembly does not receive data from the forward recognition camera for approximately 3 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 2 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 5 seconds.

PCS warning light illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication with Hybrid Vehicle Control System

The forward recognition camera does not receive data from the hybrid vehicle control ECU for approximately 3 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 5 km/h (3 mph) or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Drive the vehicle at a speed of 5 km/h (3 mph) or more for approximately 6 seconds or more.

PCS warning light illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U030051*

Internal Control Module Software Incompatibility Not Programmed

The vehicle information sent from hybrid vehicle control ECU remains undefined by the forward recognition camera for 3 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 6 seconds.

PCS warning light illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U030057*

Internal Control Module Software Incompatibility Invalid / Incompatible Software Component

The vehicle information sent from the hybrid vehicle control ECU does not match that stored in the forward recognition camera for 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 4 seconds.

PCS warning light illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U041881*

Invalid Data Received from Brake System Control Module Invalid Serial Data Received

The forward recognition camera receives an abnormal brake system control signal from the brake booster with master cylinder assembly for 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 4 seconds.

PCS warning light illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

(u) Forward Recognition Camera / Techstream Display "Front Recognition Camera"

Chassis > Front Recognition Camera > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Front Camera System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U012587

Lost Communication with Yaw Rate Sensor Module

The forward recognition camera does not receive data from the airbag ECU assembly for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 1 km/h or 1 mph or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Drive the vehicle at a speed of 1 km/h or 1 mph or more for approximately 8 seconds or more.

-

-

DTC is stored until it is cleared using the Techstream.

U012687

Lost Communication with Steering Angle Sensor Module

The forward recognition camera does not receive data from the steering sensor for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U012987

Lost Communication with Brake System Control Module

The forward recognition camera does not receive data from the brake booster with master cylinder assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U014087

Lost Communication with Body Control Module "B"

The forward recognition camera does not receive data from the main body ECU (multiplex network body ECU) for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication with Hybrid Vehicle Control System

The forward recognition camera does not receive data from the hybrid vehicle control ECU for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 1 km/h or 1 mph or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Drive the vehicle at a speed of 1 km/h or 1 mph or more for approximately 8 seconds or more.

-

-

DTC is stored until it is cleared using the Techstream.

U030051*

Internal Control Module Software Incompatibility Not Programmed

The control system information sent from hybrid vehicle control ECU remains undefined by the forward recognition camera for 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U030057*

Internal Control Module Software Incompatibility Invalid / Incompatible Software Component

The control system information sent from the hybrid vehicle control ECU does not match that stored in the forward recognition camera for 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U032251*

Software Incompatibility with Body Control Module Not Programmed

The vehicle information sent from main body ECU (multiplex network body ECU) remains undefined by the forward recognition camera for 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U032257*

Software Incompatibility with Body Control Module Invalid / Incompatible Software Component

The vehicle information sent from the main body ECU (multiplex network body ECU) does not match that stored in the forward recognition camera for 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(v) Forward Recognition Camera / Techstream Display "Front Recognition Camera (Front Lighting Control)"

Body Electrical > Front Recognition Camera (Front Lighting Control) > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Lighting System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U012587

Lost Communication with Yaw Rate Sensor Module

The forward recognition camera does not receive data from the airbag ECU assembly for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 2 seconds or more.
  • Vehicle speed is 1 km/h or 1 mph or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Drive the vehicle at a speed of 1 km/h or 1 mph or more for approximately 7 seconds or more.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U012987

Lost Communication with Brake System Control Module

The forward recognition camera does not receive data from the brake booster with master cylinder assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 2 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U014087

Lost Communication with Body Control Module "B"

The forward recognition camera does not receive data from the main body ECU (multiplex network body ECU) for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 2 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U018287

Lost Communication with Lighting Control Module Front Missing Message

The forward recognition camera does not receive data from the headlight ECU sub-assembly LH for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 2 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U023587*

Lost Communication with Cruise Control Front Distance Range Sensor

The forward recognition camera does not receive data from the millimeter wave radar sensor assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 2 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication with Hybrid Vehicle Control System

The forward recognition camera does not receive data from the hybrid vehicle control ECU for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 2 seconds or more.
  • Vehicle speed is 1 km/h or 1 mph or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Drive the vehicle at a speed of 1 km/h or 1 mph or more for approximately 7 seconds or more.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

(w) Forward Recognition Camera / Techstream Display "Lane Control"

Chassis > Lane Control > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Lane Control System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U012587

Lost Communication with Yaw Rate Sensor Module

The forward recognition camera does not receive data from the airbag ECU assembly for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The LTA main switch is on.
  • Vehicle speed is 5 km/h (3 mph) or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Drive the vehicle at a speed of 5 km/h (3 mph) or more with the LTA main switch on for approximately 8 seconds or more.

LTA indicator (yellow) illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U012687

Lost Communication with Steering Angle Sensor Module

The forward recognition camera does not receive data from the steering sensor for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The LTA main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the LTA main switch on and wait for at least approximately 8 seconds.

LTA indicator (yellow) illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U012987

Lost Communication with Brake System Control Module

The forward recognition camera does not receive data from the brake booster with master cylinder assembly for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The LTA main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the LTA main switch on and wait for at least approximately 8 seconds.

LTA indicator (yellow) illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U013187

Lost Communication with Power Steering Control Module

The forward recognition camera does not receive data from the rack and pinion power steering gear assembly for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The LTA main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the LTA main switch on and wait for at least approximately 8 seconds.

LTA indicator (yellow) illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U015587

Lost Communication with Instrument Panel Cluster (IPC) Control Module (Combination Meter)

The forward recognition camera does not receive data from the combination meter assembly for approximately 50 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The LTA main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the LTA main switch on and wait for at least approximately 53 seconds.

LTA indicator (yellow) illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U023587*

Lost Communication with Cruise Control Front Distance Range Sensor

The forward recognition camera does not receive data from the millimeter wave radar sensor assembly for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The LTA main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the LTA main switch on and wait for at least approximately 8 seconds.

LTA indicator (yellow) illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication with Hybrid Vehicle Control System

The forward recognition camera does not receive data from the hybrid vehicle control ECU for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The LTA main switch is on.
  • Vehicle speed is 5 km/h (3 mph) or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Drive the vehicle at a speed of 5 km/h (3 mph) or more with the LTA main switch on for approximately 8 seconds or more.

LTA indicator (yellow) illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U030051*

Internal Control Module Software Incompatibility Not Programmed

The vehicle information sent from hybrid vehicle control ECU remains undefined by the forward recognition camera.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The LTA main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the LTA main switch on and wait for at least approximately 3 seconds.

LTA indicator (yellow) illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U030057*

Internal Control Module Software Incompatibility Invalid / Incompatible Software Component

The vehicle information sent from the hybrid vehicle control ECU does not match that stored in the forward recognition camera for 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The LTA main switch is on.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the LTA main switch on and wait for at least approximately 8 seconds.

LTA indicator (yellow) illuminates.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

(x) Forward Recognition Camera / Techstream Display "Road Sign Assist"

Body Electrical > Road Sign Assist > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U012587

Lost Communication with Yaw Rate Sensor Module

The forward recognition camera does not receive data from the airbag ECU assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U012987

Lost Communication with Brake System Control Module

The forward recognition camera does not receive data from the brake booster with master cylinder assembly for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 1 km/h or 1 mph or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Drive the vehicle at a speed of 1 km/h or 1 mph or more for approximately 8 seconds or more.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U014087

Lost Communication with Body Control Module "B"

The forward recognition camera does not receive data from the main body ECU (multiplex network body ECU) for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U015587

Lost Communication with Instrument Panel Cluster (IPC) Control Module (Combination Meter)

The forward recognition camera does not receive data from the combination meter assembly for approximately 50 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 53 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication with Hybrid Vehicle Control System

The forward recognition camera does not receive data from the hybrid vehicle control ECU for approximately 5 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 1 km/h or 1 mph or more.
  • The power source voltage of the forward recognition camera is 10 V or more.

Drive the vehicle at a speed of 1 km/h or 1 mph or more for approximately 8 seconds or more.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

(y) Millimeter Wave Radar Sensor Assembly / Techstream Display "Front Radar Sensor"

Body Electrical > Front Radar Sensor > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Front Radar Sensor System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U010487*

Lost Communication with Driving Support ECU Missing Message

The millimeter wave radar sensor assembly does not receive data from the forward recognition camera for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the millimeter wave radar sensor assembly is 8 V or more.

Turn the power switch on (IG) and wait for at least approximately 2 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U030557*

Software Incompatibility with Cruise Control Module Invalid / Incompatible Software Component

The control system information sent from the forward recognition camera does not match that stored in the millimeter wave radar sensor assembly for 7 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the millimeter wave radar sensor assembly is 8 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

(z) Clearance Warning ECU Assembly / Techstream Display "Advanced Parking Guidance/ICS/Intuitive P/A"

Body Electrical > Advanced Parking Guidance/ICS/Intuitive P/A > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *1: Refer to Parking Support Brake System.

    Click here

  • *2: Refer to Parking Support Alert System and Parking Support Brake System.

    for Parking Support Alert System:

    Click here

    for Parking Support Brake System:

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0073

Control Module Communication Bus "A" Off

Either of the following conditions is met:

  • The clearance warning ECU assembly does not receive data from an ECU or sensor to which it sent data for approximately 2 seconds or more.
  • The clearance warning ECU assembly does not send/receive data consecutively 10 times or more within 5 seconds.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

PKSB OFF indicator light blinks.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0100

Lost Communication with ECM/PCM "A"

The clearance warning ECU assembly does not receive data from the ECM for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 4 seconds.

PKSB OFF indicator light blinks.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0124

Lost Communication with Lateral Acceleration Sensor Module

The clearance warning ECU assembly does not receive data from the airbag ECU assembly for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 4 seconds.

PKSB OFF indicator light blinks.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0126

Lost Communication With Steering Angle Sensor Module

The clearance warning ECU assembly does not receive data from the steering sensor for approximately 6 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 9 seconds.

PKSB OFF indicator light blinks.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0129

Lost Communication with Brake System Control Module

The clearance warning ECU assembly does not receive data from the brake booster with master cylinder assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

PKSB OFF indicator light blinks.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0140

Lost Communication with Body Control Module

The clearance warning ECU assembly does not receive data from the main body ECU (multiplex network body ECU) for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0155

Lost Communication With Instrument Panel Cluster (IPC) Control Module

The clearance warning ECU assembly does not receive data from the combination meter assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

PKSB OFF indicator light blinks.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0164

Lost Communication with HVAC Control Module

The clearance warning ECU assembly does not receive data from the air conditioning amplifier assembly for approximately 5 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 8 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0232*1

Lost Communication with Blind Spot Monitor Slave Module

The clearance warning ECU assembly does not receive data from the blind spot monitor sensor LH for approximately 12 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

PKSB OFF indicator light blinks.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0233*1

Lost Communication with Blind Spot Monitor Master Module

The clearance warning ECU assembly does not receive data from the blind spot monitor sensor RH for approximately 12 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

PKSB OFF indicator light blinks.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0265

Lost Communication with Image Processing Sensor A

The clearance warning ECU assembly does not receive data from the rear television camera assembly for approximately 2 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 5 seconds.

PKSB OFF indicator light blinks.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0293

Lost Communication with Hybrid Powertrain Control Module

The clearance warning ECU assembly does not receive data from the hybrid vehicle control ECU for approximately 6 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 9 seconds.

PKSB OFF indicator light blinks.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U1000*2

CAN Communication Failure(Message Registry)

CAN communication malfunction (message register)

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the clearance warning ECU assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

PKSB OFF indicator light blinks.

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

(aa) Blind Spot Monitor Sensor RH / Techstream Display "Blind Spot Monitor Master"

Body Electrical > Blind Spot Monitor Master > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Blind Spot Monitor System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0125

Lost Communication with Yaw Rate Sensor Module

The blind spot monitor sensor RH does not receive data from the airbag ECU assembly for approximately 4 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 7 km/h (4 mph) or more.
  • The power source voltage of the blind spot monitor sensor RH is 10 V or more.

Drive the vehicle at a speed of 7 km/h (4 mph) or more for approximately 7 seconds or more.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

U0126

Lost Communication with Steering Angle Sensor Module

The blind spot monitor sensor RH does not receive data from the steering sensor for approximately 11 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the blind spot monitor sensor RH is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

U0129

Lost Communication with Brake System Control Module

The blind spot monitor sensor RH does not receive data from the brake booster with master cylinder assembly for approximately 4 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the blind spot monitor sensor RH is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

U0142

Lost Communication with Body Control Module "B"

The blind spot monitor sensor RH does not receive data from the main body ECU (multiplex network body ECU) for approximately 11 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the blind spot monitor sensor RH is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

U0232*

Lost Communication with Blind Spot Monitor Slave Module

The blind spot monitor sensor RH does not receive data from the blind spot monitor sensor LH for approximately 13 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the blind spot monitor sensor RH is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 16 seconds.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

U0293

Lost Communication with HV ECU

The blind spot monitor sensor RH does not receive data from the hybrid vehicle control ECU for approximately 11 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 5 km/h (3 mph) or more.
  • The power source voltage of the blind spot monitor sensor RH is 10 V or more.

Drive the vehicle at a speed of 5 km/h (3 mph) or more for approximately 14 seconds or more.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

U1331*

Software Incompatibility with Body Control Module "B"

Destination information of the main body ECU (multiplex network body ECU) and blind spot monitor sensor RH do not match.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the blind spot monitor sensor RH is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

(ab) Blind Spot Monitor Sensor LH / Techstream Display "Blind Spot Monitor Slave"

Body Electrical > Blind Spot Monitor Slave > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Blind Spot Monitor System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0125*

Lost Communication with Yaw Rate Sensor Module

The blind spot monitor sensor LH does not receive data from the airbag ECU assembly for approximately 4 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 7 km/h (4 mph) or more.
  • The power source voltage of the blind spot monitor sensor LH is 10 V or more.

Drive the vehicle at a speed of 7 km/h (4 mph) or more for approximately 7 seconds or more.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

U0126*

Lost Communication with Steering Angle Sensor Module

The blind spot monitor sensor LH does not receive data from the steering sensor for approximately 11 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the blind spot monitor sensor LH is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

U0129*

Lost Communication with Brake System Control Module

The blind spot monitor sensor LH does not receive data from the brake booster with master cylinder assembly for approximately 4 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the blind spot monitor sensor LH is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

U0142*

Lost Communication with Body Control Module "B"

The blind spot monitor sensor LH does not receive data from the main body ECU (multiplex network body ECU) for approximately 11 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the blind spot monitor sensor LH is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

U0233*

Lost Communication with Blind Spot Monitor Master Module

The blind spot monitor sensor LH does not receive data from the blind spot monitor sensor RH for approximately 13 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the blind spot monitor sensor LH is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 16 seconds.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

U0293*

Lost Communication with HV ECU

The blind spot monitor sensor LH does not receive data from the hybrid vehicle control ECU for approximately 11 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 5 km/h (3 mph) or more.
  • The power source voltage of the blind spot monitor sensor LH is 10 V or more.

Drive the vehicle at a speed of 5 km/h (3 mph) or more for approximately 14 seconds or more.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

U1331*

Software Incompatibility with Body Control Module "B"

Destination information of the main body ECU (multiplex network body ECU) and blind spot monitor sensor LH do not match.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the blind spot monitor sensor LH is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

Displays messages on the multi-information display.

DTC remains stored only while malfunction is occurring.

(ac) Tire Pressure Warning ECU and Receiver / Techstream Display "Tire Pressure Monitor"

Chassis > Tire Pressure Monitor > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0129

Lost Communication with Brake System Control Module

The tire pressure warning ECU and receiver does not receive data from the brake booster with master cylinder assembly for approximately 60 seconds or more.

The power switch is on (IG) for approximately 1 second or more.

Turn the power switch on (IG) and wait for at least approximately 61 seconds.

-

-

DTC remains stored only while malfunction is occurring.

(ad) Radio Receiver Assembly / Techstream Display "Navigation System"

Body Electrical > Navigation System > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0073

Sending Malfunction (Navigation to APGS)

The radio receiver assembly does not send/receive data.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the radio receiver assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0100

Engine ECU Communication

The radio receiver assembly does not receive data from the ECM for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the radio receiver assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0129

VSC(ECB)ECU Communication

The radio receiver assembly does not receive data from the brake booster with master cylinder assembly for approximately 10 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 20 km/h (12 mph) or more.
  • The power source voltage of the radio receiver assembly is 9.5 V or more.

Drive the vehicle at a speed of 20 km/h (12 mph) or more for 13 seconds or more.

-

-

DTC is stored until it is cleared using the Techstream.

U0140

Lost Communication with Body Control Module

The radio receiver assembly does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the radio receiver assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0155

Meter ECU Communication

The radio receiver assembly does not receive data from the combination meter assembly for approximately 30 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the radio receiver assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 33 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0164

Air Conditioner ECU Communication

The radio receiver assembly does not receive data from the air conditioning amplifier assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the radio receiver assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0198

Lost Communication with Telematic Control Module

The radio receiver assembly does not receive data from the DCM (telematics transceiver) for approximately 3 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the radio receiver assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 6 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U023B

Lost Communication with Image Processing Module "B"

The radio receiver assembly does not receive data from the parking assist ECU for approximately 12 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the radio receiver assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0265

Lost Communication with Image Processing Sensor A

The radio receiver assembly does not receive data from the rear television camera assembly for approximately 12 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the radio receiver assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0293

HV ECU Communication

The radio receiver assembly does not receive data from the hybrid vehicle control ECU for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the radio receiver assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1110

Clearance Sonar ECU Communication

The radio receiver assembly does not receive data from the clearance warning ECU assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the radio receiver assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(ae) DCM (Telematics Transceiver) / Techstream Display "Telematics"

Body Electrical > Telematics > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U014087

Lost Communication with Body Control Module "B"

The DCM (telematics transceiver) does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the DCM (telematics transceiver) is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC remains stored only while malfunction is occurring.

U015587

Lost Communication with Instrument Panel Cluster (IPC) Control Module

The DCM (telematics transceiver) does not receive data from the combination meter assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the DCM (telematics transceiver) is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC remains stored only while malfunction is occurring.

U016387

Lost Communication with Navigation Control Module

The DCM (telematics transceiver) does not receive data from the radio receiver assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the DCM (telematics transceiver) is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC remains stored only while malfunction is occurring.

(af) Brake Actuator Assembly / Techstream Display "Electric Parking Brake"

Chassis > Electric Parking Brake > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0073

Control Module Communication Bus OFF

The brake actuator assembly does not send/receive data for approximately 2 seconds or more.

The power switch is on (IG).

Turn the power switch on (IG) and wait for at least approximately 2 seconds.

Parking brake warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U0100

Lost Communication With ECM/PCM "A"

The brake actuator assembly does not receive data from the hybrid vehicle control ECU for approximately 15 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 6 km/h (4 mph) or more.
  • The power source voltage of the brake actuator assembly is 10 V or more.

Drive the vehicle at a speed of 6 km/h (4 mph) or more for approximately 18 seconds or more.

Parking brake warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U0124

Lost Communication With Lateral Acceleration Sensor Module

The brake actuator assembly does not receive data from the airbag ECU assembly for approximately 15 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 6 km/h (4 mph) or more.
  • The power source voltage of the brake actuator assembly is 10 V or more.

Drive the vehicle at a speed of 6 km/h (4 mph) or more for approximately 18 seconds or more.

Parking brake warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U0129

Lost Communication With Brake System Control Module

The brake actuator assembly does not receive data from the brake booster with master cylinder assembly for approximately 15 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the brake actuator assembly is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 18 seconds.

Parking brake warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

U0293

Lost Communication With Hybrid Vehicle Control System

The brake actuator assembly does not receive data from the hybrid vehicle control ECU for approximately 15 seconds or more.

All conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • Vehicle speed is 6 km/h (4 mph) or more.
  • The power source voltage of the brake actuator assembly is 10 V or more.

Drive the vehicle at a speed of 6 km/h (4 mph) or more for approximately 18 seconds or more.

Parking brake warning light illuminates.

-

DTC is stored until it is cleared using the Techstream.

(ag) Rear Television Camera Assembly / Techstream Display "Rear Camera"

Chassis > Rear Camera > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • Refer to Parking Assist Monitor System and Panoramic View Monitor System.

    for Parking Assist Monitor System:

    Click here

    for Panoramic View Monitor System:

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0126

Lost Communication with Steering Angle Sensor Module

The rear television camera assembly does not receive data from the steering sensor for approximately 12 seconds or more.

The power switch is on (IG) for approximately 3 seconds or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0129

Lost Communication with Brake System Control Module

The rear television camera assembly does not receive data from the brake booster with master cylinder assembly for approximately 6 seconds or more.

The power switch is on (IG) for approximately 3 seconds or more.

Turn the power switch on (IG) and wait for at least approximately 9 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0140

Lost Communication with Body Control Module

The rear television camera assembly does not receive data from the main body ECU (multiplex network body ECU) for approximately 11 seconds or more.

The power switch is on (ACC) for approximately 3 seconds or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0163

Lost Communication with Navigation Control Module

The rear television camera assembly does not receive data from the radio receiver assembly for approximately 11 seconds or more.

The power switch is on (ACC) for approximately 3 seconds or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0233

Lost Communication with Blind Spot Monitor Master Module

The rear television camera assembly does not receive data from the blind spot monitor sensor RH for approximately 11 seconds or more.

The power switch is on (IG) for approximately 3 seconds or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U023B

Lost Communication with Panoramic View Monitor Control Module

The rear television camera assembly does not receive data from the parking assist ECU for approximately 12 seconds or more.

The power switch is on (IG) for approximately 3 seconds or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0293

Lost Communication with Hybrid Control Module

The rear television camera assembly does not receive data from the hybrid vehicle control ECU for approximately 12 seconds or more.

The power switch is on (IG) for approximately 3 seconds or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1000*

CAN Communication Failure(Message Registry)

When the power switch is on (IG), a CAN communication malfunction is detected.

The power switch is on (IG).

Turn the power switch on (IG).

-

-

DTC remains stored only while malfunction is occurring.

U1110

Lost Communication with Intuitive Parking Assist Module

The rear television camera assembly does not receive data from the clearance warning ECU assembly for approximately 11 seconds or more.

The power switch is on (IG) for approximately 3 seconds or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(ah) Parking Assist ECU / Techstream Display "Circumference Monitoring Camera Control Module"

Chassis > Circumference Monitoring Camera Control Module > Trouble Codes

HINT:

  • This ECU uses the CAN communication system for DTC communication.
  • *: Refer to Panoramic View Monitor System.

    Click here

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0073

Control Module Communication Bus Off

The parking assist ECU does not send/receive data consecutively 10 times or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 13 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0100

Lost Communication with ECM/PCM "A"

The parking assist ECU does not receive data from the hybrid vehicle control ECU for approximately 12 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0126

Lost Communication with Steering Angle Sensor Module

The parking assist ECU does not receive data from the steering sensor for approximately 12 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0129

Lost Communication with Brake System Control Module

The parking assist ECU does not receive data from the brake booster with master cylinder assembly for approximately 4 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 7 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0140

Lost Communication with Body Control Module

The parking assist ECU does not receive data from the main body ECU (multiplex network body ECU) for approximately 11 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0163

Lost Communication with Navigation Control Module

The parking assist ECU does not receive data from the radio receiver assembly for approximately 11 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0233

Lost Communication with Blind Spot Monitor Master Module

The parking assist ECU does not receive data from the blind spot monitor sensor RH for approximately 11 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0265

Lost Communication with Image Processing Sensor A

The parking assist ECU does not receive data from the rear television camera assembly for approximately 12 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

-

Displays messages on the multi-information display.

DTC is stored until it is cleared using the Techstream.

U0266*

Lost Communication with Image Processing Sensor B

The parking assist ECU does not receive data from the side television camera assembly LH for approximately 2 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 5 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0267*

Lost Communication with Image Processing Sensor C

The parking assist ECU does not receive data from the front television camera assembly for approximately 2 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 5 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0268*

Lost Communication with Image Processing Sensor D

The parking assist ECU does not receive data from the side television camera assembly RH for approximately 2 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 5 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0293

Lost Communication with Hybrid Control Module

The parking assist ECU does not receive data from the hybrid vehicle control ECU for approximately 12 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 15 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1000*

CAN Communication Failure (Message Registry)

The parking assist ECU does not send/receive data.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 3 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1110

Lost Communication with Clearance Sonar Module

The parking assist ECU does not receive data from the clearance warning ECU assembly for approximately 11 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the parking assist ECU is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 14 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(ai) Vehicle Approaching Speaker Controller / Techstream Display "Vehicle Proximity Notification System"

Body Electrical > Vehicle Proximity Notification System > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0129

Lost Communication with Brake System Control Module

The vehicle approaching speaker controller does not receive data from the brake booster with master cylinder assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the vehicle approaching speaker controller is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0140

Lost Communication with Body Control Module "B"

The vehicle approaching speaker controller does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the vehicle approaching speaker controller is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0293

Lost Communication With Hybrid Vehicle Control System

The vehicle approaching speaker controller does not receive data from the hybrid vehicle control ECU for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 10 seconds or more.
  • The power source voltage of the vehicle approaching speaker controller is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 20 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(aj) Stereo Component Equalizer Assembly / Techstream Display "Active Noise Control"

Body Electrical > Active Noise Control > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U010087

Lost Communication with ECM/PCM "A" Missing Message

The stereo component equalizer assembly does not receive data from the ECM for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the stereo component equalizer assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 4 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U012987

Lost Communication with Brake System Control Module Missing Message

The stereo component equalizer assembly does not receive data from the brake booster with master cylinder assembly for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the stereo component equalizer assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 4 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U014087

Lost Communication with Body Control Module Missing Message

The stereo component equalizer assembly does not receive data from the main body ECU (multiplex network body ECU) for approximately 3 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the stereo component equalizer assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 6 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U016487

Lost Communication with HVAC Control Module Missing Message

The stereo component equalizer assembly does not receive data from the air conditioning amplifier assembly for approximately 25 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the stereo component equalizer assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 28 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U029387

Lost Communication with Hybrid Powertrain Control Module Missing Message

The stereo component equalizer assembly does not receive data from the hybrid vehicle control ECU for approximately 1 second or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the stereo component equalizer assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 4 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U115187

Lost Communication with Hybrid Powertrain Control Module (C-Bus) Missing Message

The stereo component equalizer assembly does not receive data from the hybrid vehicle control ECU for approximately 6 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 3 seconds or more.
  • The power source voltage of the stereo component equalizer assembly is 9.5 V or more.

Turn the power switch on (IG) and wait for at least approximately 9 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(ak) Luggage Closer Motor Assembly / Techstream Display "Back Door"

Body Electrical > Back Door > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0101

Lost Communication with TCM

The luggage closer motor assembly does not receive data from the hybrid vehicle control ECU for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the luggage closer motor assembly is 10.4 V or more.

Turn the power switch on (IG) and wait for at least approximately 11 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0122

Lost Communication with Vehicle Dynamics Control Module

The luggage closer motor assembly does not receive data from the brake booster with master cylinder assembly for approximately 10 seconds or more.

Both conditions are met:

  • The power switch is on (IG) for approximately 1 second or more.
  • The power source voltage of the luggage closer motor assembly is 10.4 V or more.

Turn the power switch on (IG) and wait for at least approximately 11 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0142

Lost Communication with Body Control Module "B"

The luggage closer motor assembly does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 1 second or more elapse.
  • The power source voltage of the luggage closer motor assembly is 10.4 V or more.

Turn the power switch on (IG) and wait for at least approximately 11 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0155

Lost Communication with Instrument Panel Cluster (IPC) Control Module

The luggage closer motor assembly does not receive data from the combination meter assembly for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 1 second or more elapse.
  • The power source voltage of the luggage closer motor assembly is 10.4 V or more.

Turn the power switch on (IG) and wait for at least approximately 11 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U0327

Lost Communication with Vehicle Security Control Module

The luggage closer motor assembly does not receive data from the certification ECU (smart key ECU assembly) for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 1 second or more elapse.
  • The power source voltage of the luggage closer motor assembly is 10.4 V or more.

Turn the power switch on (IG) and wait for at least approximately 11 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U1117

Lost Communication with Accessory Gateway

The luggage closer motor assembly does not receive data from the option connector (bus buffer ECU) for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and approximately 1 second or more elapse.
  • The power source voltage of the luggage closer motor assembly is 10.4 V or more.

Turn the power switch on (IG) and wait for at least approximately 11 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(al) Multiplex Tilt and Telescopic ECU / Techstream Display "Tilt&Telescopic"

Body Electrical > Tilt&Telescopic > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U014287

Lost Communication with Body Control Module "B" Missing Message

The multiplex tilt and telescopic ECU does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

The power source voltage of the multiplex tilt and telescopic ECU is 11 V or more.

Turn the power switch on (IG) and wait for at least approximately 10 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U015587

Lost Communication with Instrument Panel Cluster (IPC) Control Module Missing Message

The multiplex tilt and telescopic ECU does not receive data from the combination meter assembly for approximately 10 seconds or more.

The power source voltage of the multiplex tilt and telescopic ECU is 11 V or more.

Turn the power switch on (IG) and wait for at least approximately 10 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

U020887

Lost Communication with "Seat Control Module A" Missing Message

The multiplex tilt and telescopic ECU does not receive data from the position control ECU assembly LH for approximately 10 seconds or more.

The power source voltage of the multiplex tilt and telescopic ECU is 11 V or more.

Turn the power switch on (IG) and wait for at least approximately 10 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(am) Outer Mirror Control ECU Assembly LH / Techstream Display "Mirror L"

Body Electrical > Mirror L > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0142

Lost Communication with Body Control Module "B"

The outer mirror control ECU assembly LH does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected.
  • The power source voltage of the outer mirror control ECU assembly LH is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 10 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(an) Outer Mirror Control ECU Assembly RH / Techstream Display "Mirror R"

Body Electrical > Mirror R > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

DTC

Detection Item

DTC Detection Condition

DTC Detection Pre-condition

DTC Check Procedure

Warning Displayed

DTC Storage Method

Indication in Meter

Multi-information Display

U0142

Lost Communication with Body Control Module "B"

The outer mirror control ECU assembly RH does not receive data from the main body ECU (multiplex network body ECU) for approximately 10 seconds or more.

Both conditions are met:

  • Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected.
  • The power source voltage of the outer mirror control ECU assembly RH is 10 V or more.

Turn the power switch on (IG) and wait for at least approximately 10 seconds.

-

-

DTC is stored until it is cleared using the Techstream.

(ao) Central Gateway ECU (Network Gateway ECU) / Techstream Display "Central Gateway"

HINT:

The central gateway ECU (network gateway ECU) is connected to the CAN communication system, but the central gateway ECU (network gateway ECU) does not store or output CAN communication DTCs.

(ap) Steering Sensor / Techstream Display "Steering Angle Sensor"

HINT:

The steering sensor is connected to the CAN communication system, but the steering sensor does not store or output CAN communication DTCs.

(aq) Swing Grille Actuator Assembly / Techstream Display "Grill Shutter"

HINT:

The swing grille actuator assembly is connected to the CAN communication system, but the swing grille actuator assembly does not store or output CAN communication DTCs.

(ar) Position Control ECU Assembly LH / Techstream Display "Driver Seat"

HINT:

The position control ECU assembly LH is connected to the CAN communication system, but the position control ECU assembly LH does not store or output CAN communication DTCs.

CAN BUS WAVEFORMS

HINT:

  • The following waveforms are measured between terminals CANH and GND, and terminals CANL and GND of the central gateway ECU (network gateway ECU). (Use this as a reference for diagnosis of CAN communication lines.)
  • When malfunctions in multiple ECUs are suspected based on the CAN bus check and DTCs checked using the Techstream, check the resistance of the CAN bus using an ohmmeter first. If no problems are found, check the following waveforms.

    Click here

  • If a waveform is not similar to one of the following 3 patterns (Group 1), then an open in a CAN main bus line, an open in a CAN branch line, or a short between a CAN line (CANH or CANL) and ground is suspected (Group 2).
  • Wiggle the connector and wire harness to check if the waveform changes.

(a) CAN bus waveforms (Group 1)

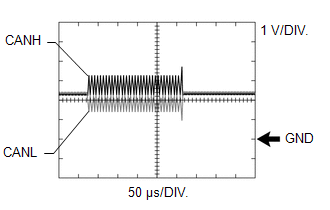

(1) Normal waveform

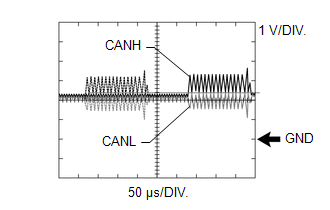

(2) Open in both of the lines (CANH and CANL) of a CAN branch

HINT:

  • Waveforms (waveforms shown using dotted lines) are not present from an ECU or sensor connected to a CAN branch with an open circuit in both lines. (Waveforms from other ECUs or sensors are normal.)
  • Because this waveform is similar to a normal waveform, instead of using the waveform, the malfunctioning part can be narrowed down by performing a CAN bus check.

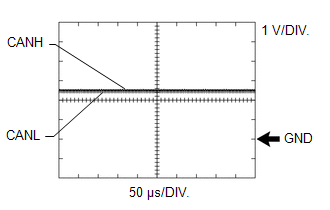

(3) Short between the CAN bus lines (CANH and CANL)

HINT:

  • Waveforms disappear.
  • If the malfunction is in an ECU, disconnecting the ECU will change the waveform. If the waveform does not change, a malfunction in the wire harness is suspected.

(b) CAN bus waveforms (reference) (Group 2)

NOTICE:

The following CAN bus waveforms can be used only as reference. The actual measured waveform may differ significantly depending on the location of the open or short circuit.

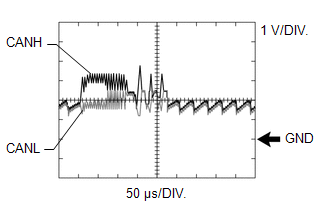

(1) Open in a CAN branch line (CANH)

HINT:

  • An abnormal waveform is output from an ECU with an open in one of its CAN branch lines. Because this abnormal output interferes with the signals from other ECUs, the output of other ECUs will also appear abnormal.
  • Narrow down the malfunctioning part by checking DTCs or performing a CAN bus check, or by checking waveform changes when ECUs or sensors are disconnected. The waveform will change to one for an open in both sides of a CAN branch when the ECU or sensor with an open CAN branch line is disconnected.

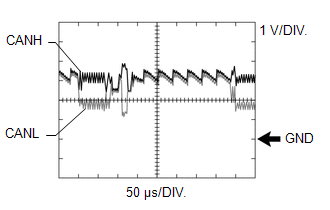

(2) Open in a CAN branch line (CANL)

HINT:

  • An abnormal waveform is output from an ECU with an open in one of its CAN branch lines. Because this abnormal output interferes with the signals from other ECUs, the output of other ECUs will also appear abnormal.
  • Narrow down the malfunctioning part by checking DTCs or performing a CAN bus check, or by checking waveform changes when ECUs or sensors are disconnected. The waveform will change to one for an open in both sides of a CAN branch when the ECU or sensor with an open CAN branch line is disconnected.

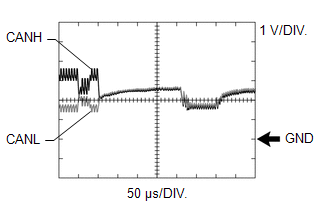

(3) Open in a CAN main bus line (CANH)

HINT:

  • Waveforms of ECUs or sensors that are closer to the central gateway ECU (network gateway ECU) than the open part are almost normal.
  • Waveforms of ECUs or sensors that are on the opposite side of the central gateway ECU (network gateway ECU) from the open part are abnormal.
  • An open in a CAN main bus line can be confirmed by measuring the resistance between the CANH and CANL terminals of any CAN branch.

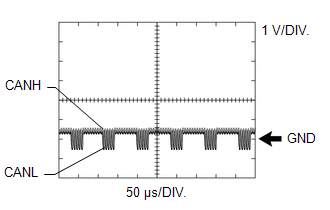

(4) Short between a CAN bus line (CANH) and ground

HINT:

  • Narrow down the shorted part by checking for waveform changes when disconnecting connectors from the CAN junction connectors or when disconnecting ECUs or sensors.
  • A short to ground in the CANH line can be confirmed by measuring the resistance between CANH and ground using an ohmmeter.

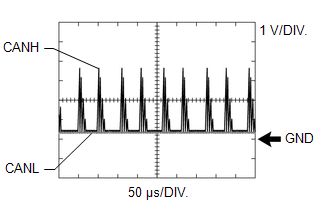

(5) Short between a CAN bus line (CANL) and ground

HINT:

  • Narrow down the shorted part by checking for waveform changes when disconnecting connectors from the CAN junction connectors or when disconnecting ECUs or sensors.
  • A short to ground in the CANL line can be confirmed by measuring the resistance between CANL and ground using an ohmmeter.

DATA SENDING/RECEIVING TABLE

(a) Data sending/receiving table

HINT:

If Data List items related to sent/received data are not displayed properly, the part for which communication is interrupted can be determined using the table below.

Data Content

Data Detected and Sent by

Data Received by

Relevant Data List Item

Can be Checked in the Data List

Cannot be Checked in the Data List

Selected System*4

Data List Items

Accelerator position

hybrid vehicle control ECU

  • Brake booster with master cylinder assembly
  • Inverter with converter assembly
  • Brake actuator assembly
  • Clearance warning ECU assembly
  • Forward recognition camera
  • Swing grille actuator assembly
  • Radio receiver assembly
  • Stereo component equalizer assembly

Hybrid Control

Accelerator Position

ABS/VSC/TRAC

Accelerator Opening Angle %

Motor Generator

Accelerator Position

Engine speed

ECM

  • Meter mirror sub-assembly
  • Combination meter assembly
  • hybrid vehicle control ECU
  • Inverter with converter assembly
  • Air conditioning amplifier assembly
  • Main body ECU (multiplex network body ECU)
  • Certification ECU (smart key ECU assembly)
  • Airbag ECU assembly
  • Brake actuator assembly
  • Clearance warning ECU assembly
  • Radio receiver assembly
  • DCM (telematics transceiver)
  • Brake booster with master cylinder assembly
  • Stereo component equalizer assembly
  • Rack and pinion power steering gear assembly

Engine

Engine Speed

Head Up Display

Engine RPM

Combination Meter

Engine RPM

Hybrid Control

Engine Speed

Motor Generator

Engine Speed

Engine coolant temperature

ECM

  • Air conditioning amplifier assembly
  • Combination meter assembly
  • Swing grille actuator assembly
  • hybrid vehicle control ECU
  • Inverter with converter assembly
  • Radio receiver assembly
  • Brake booster with master cylinder assembly

Engine

Coolant Temperature

Air Conditioner

Engine Coolant Temp

Combination Meter

Coolant Temperature

Grill Shutter

Engine Coolant Temperature

Hybrid Control

Coolant Temperature

Motor Generator

Coolant Temperature

Vehicle speed

Brake booster with master cylinder assembly

  • Meter mirror sub-assembly
  • Combination meter assembly
  • hybrid vehicle control ECU
  • Vehicle approaching speaker controller
  • Occupant detection ECU
  • Radio receiver assembly
  • Brake actuator assembly
  • Forward recognition camera
  • Main body ECU (multiplex network body ECU)
  • Airbag ECU assembly
  • Clearance warning ECU assembly
  • Rear television camera assembly
  • Parking assist ECU
  • DCM (telematics transceiver)
  • Stereo component equalizer assembly
  • Rack and pinion power steering gear assembly

ABS/VSC/TRAC

Vehicle Speed

Head Up Display

Vehicle Speed Meter

Combination Meter

Vehicle Speed Meter

Hybrid Control

Vehicle Speed

Vehicle Proximity Notification System

Vehicle Speed

Occupant Detection

VSC Vehicle Speed

Navigation System

Vehicle Speed

Electric Parking Brake

Vehicle Speed

Radar Cruise2

Vehicle Speed

Combination meter assembly*3

  • Position control ECU assembly LH
  • Multiplex tilt and telescopic ECU
  • Tire pressure warning ECU and receiver
  • Meter mirror sub-assembly
  • Air conditioning amplifier assembly
  • Main body ECU (multiplex network body ECU)
  • Certification ECU (smart key ECU assembly)
  • DCM (telematics transceiver)
  • Luggage closer motor assembly

Combination Meter

Vehicle Speed Meter

Driver Seat

Vehicle Speed

Tilt & Telescopic

Vehicle Speed

Tire Pressure Monitor

Vehicle Speed

Head Up Display

Vehicle Speed from Meter ECU

Wheel speed

Brake booster with master cylinder assembly

  • Headlight ECU sub-assembly LH
  • hybrid vehicle control ECU
  • Brake actuator assembly
  • Rack and pinion power steering gear assembly
  • Airbag ECU assembly
  • Blind spot monitor sensor RH
  • Rear television camera assembly
  • Clearance warning ECU assembly
  • Forward recognition camera
  • Radio receiver assembly
  • Stereo component equalizer assembly

ABS/VSC/TRAC

FR Wheel Speed

FL Wheel Speed

RR Wheel Speed

RL Wheel Speed

AFS

FR Wheel Speed

FL Wheel Speed

HL AutoLeveling

Front Right Wheel Speed Value

Front Left Wheel Speed Value

Hybrid Control

FR Wheel Speed

FL Wheel Speed

RR Wheel Speed

RL Wheel Speed

Electric Parking Brake

FR Wheel Speed

FL Wheel Speed

RR Wheel Speed

RL Wheel Speed

EMPS

Wheel Speed Right

Wheel Speed Left

Shift position

hybrid vehicle control ECU

  • Certification ECU (smart key ECU assembly)
  • Blind spot monitor sensor RH
  • Clearance warning ECU assembly
  • Brake actuator assembly
  • Parking assist ECU
  • Radio receiver assembly
  • Main body ECU (multiplex network body ECU)
  • Meter mirror sub-assembly
  • Headlight ECU sub-assembly LH
  • Combination meter assembly*2
  • Airbag ECU assembly
  • Tire pressure warning ECU and receiver
  • Rear television camera assembly
  • Forward recognition camera
  • DCM (telematics transceiver)
  • Luggage closer motor assembly

Hybrid Control

Shift Position

Power Source Control

Shift P Signal

Blind Spot Monitor Master

Reverse (Only for AT/CVT)

Advanced Parking Guidance/ICS/Intuitive P/A

Parking Signal

Reverse Signal

Electric Parking Brake

Shift Position

Circumference Monitoring Camera Control Module

Shift R Position

Navigation System

Reverse Signal

Ambient temperature

Air conditioning amplifier assembly

  • Combination meter assembly
  • Meter mirror sub-assembly
  • Brake actuator assembly
  • Main body ECU (multiplex network body ECU)
  • Rack and pinion power steering gear assembly
  • Clearance warning ECU assembly
  • Forward recognition camera
  • Radio receiver assembly
  • DCM (telematics transceiver)

Air Conditioner

Ambient Temp Sensor

Combination Meter

Ambient Temperature (Celsius)

Ambient Temperature (Fahrenheit)

Head Up Display

Ambient Temperature (Celsius)

Ambient Temperature (Fahrenheit)

Electric Parking Brake

Ambient Temperature

Driver door courtesy switch

Main body ECU (multiplex network body ECU)

-

  • Certification ECU (smart key ECU assembly)
  • Combination meter assembly*2
  • hybrid vehicle control ECU
  • Brake actuator assembly
  • Radio receiver assembly
  • DCM (telematics transceiver)
  • Parking assist ECU
  • Meter mirror sub-assembly
  • Stereo component equalizer assembly

Main Body

FL Door Courtesy SW

Steering angle

Steering sensor

  • Headlight ECU sub-assembly LH
  • Brake booster with master cylinder assembly
  • Rack and pinion power steering gear assembly
  • Blind spot monitor sensor RH
  • Forward recognition camera
  • Main body ECU (multiplex network body ECU)
  • Airbag ECU assembly
  • Rear television camera assembly
  • Clearance warning ECU assembly
  • Radio receiver assembly
  • Parking assist ECU
  • hybrid vehicle control ECU
  • Combination meter assembly
  • Millimeter wave radar sensor assembly

AFS

Steering Sens Signal

HL AutoLeveling

Steering Sensor Signal

ABS/VSC/TRAC

Steering Angle Sensor

EMPS

Steering Angle Velocity

Blind Spot Monitor Master

Steering Angle

Radar Cruise2

Steering Angle Signal

Yaw rate

Airbag ECU assembly

  • Brake booster with master cylinder assembly
  • Blind spot monitor sensor RH
  • Forward recognition camera
  • Rack and pinion power steering gear assembly
  • Radio receiver assembly
  • hybrid vehicle control ECU

ABS/VSC/TRAC

Yaw Rate Sensor

Yaw Rate Sensor2

Blind Spot Monitor Master

Yaw Rate Sensor

Radar Cruise2

Yaw Rate Sensor Signal

Acceleration

Airbag ECU assembly

  • Brake booster with master cylinder assembly
  • Brake actuator assembly
  • hybrid vehicle control ECU
  • Occupant detection ECU
  • Rack and pinion power steering gear assembly
  • Clearance warning ECU assembly
  • Forward recognition camera
  • Radio receiver assembly
  • Combination meter assembly

ABS/VSC/TRAC

Deceleration Sensor

Deceleration Sensor2

Electric Parking Brake

Deceleration Sensor 1

Deceleration Sensor 2

Hybrid Control

Accelerator Position

Occupant Detection

Yaw Rate/G Sensor Invalid Flag1

Yaw Rate/G Sensor Invalid Flag2

Side turn signal

Combination meter assembly

  • Blind spot monitor sensor RH
  • Forward recognition camera
  • Main body ECU (multiplex network body ECU)
  • Headlight ECU sub-assembly LH
  • Headlight ECU sub-assembly RH
  • Radio receiver assembly
  • Clearance warning ECU assembly

Combination Meter

Turn Signal Switch (Left)

Turn Signal Switch (Right)

Blind Spot Monitor Master

Turn Switch State

Lane Control

Turn Switch (Right)

Turn Switch (Left)

ECM power source voltage*1

ECM

-

-

Engine

BATT Voltage

hybrid vehicle control ECU power source voltage*1

hybrid vehicle control ECU

-

-

Hybrid Control

Auxiliary Battery Voltage

Combination meter assembly power source voltage*1

Combination meter assembly

-

-

Combination Meter

+B Voltage

Rack and pinion power steering gear assembly power source voltage*1

Rack and pinion power steering gear assembly

-

-

EMPS

IG Power Supply

Driver door touch sensor*1

Certification ECU (smart key ECU assembly)

-

-

Smart Key

D-Door Touch Sensor

Radio receiver assembly power source voltage*1

Radio receiver assembly

-

-

Navigation System

Battery Voltage

Driver side buckle switch signal*1

Airbag ECU assembly

-

-

SRS Airbag

Left side Buckle SW

Brake pedal stroke sensor*1

Brake booster with master cylinder assembly

-

-

ABS/VSC/TRAC

Stroke Sensor

Meter mirror sub-assembly power source voltage*1

Meter mirror sub-assembly

-

-

Head Up Display

+B Voltage

Inverter with converter assembly power source voltage*1

Inverter with converter assembly

-

-

Motor Generator

Battery Voltage

Swing grille actuator assembly power source voltage*1

Swing grille actuator assembly

-

-

Grill Shutter

+B Power Voltage

  • *1: Whether the ECU that sends data is functioning or not can be judged by using the Techstream to check items such as switches or sensors that send signals to the ECU via direct lines.
  • *2: Although the received contents cannot be checked in the Data List, whether or not the data is received normally can be checked by observing the combination meter assembly.
  • *3: The combination meter assembly receives a vehicle speed signal from the skid control ECU and sends the signal to other ECUs.
  • *4: According to the display on the Techstream, read the Data List.
    • Enter the following menus: Powertrain / Hybrid Control / Data List.

      Click here

    • Enter the following menus: Chassis / ABS/VSC/TRAC / Data List.

      Click here

    • Enter the following menus: Powertrain / Motor Generator / Data List.

      Click here

    • Enter the following menus: Chassis / Electric Parking Brake / Data List.

      Click here

    • Enter the following menus: Body Electrical / Advanced Parking Guidance/ICS/Intuitive P/A / Data List.

      Click here

    • Enter the following menus: Chassis / Lane Control / Data List.

      Click here

    • Enter the following menus: Body Electrical / Grille Shutter / Data List.

      Click here

    • Enter the following menus: Body Electrical / Navigation System / Data List.

      for Audio and Visual System: Click here

      for Navigation System: Click here

    • Enter the following menus: Powertrain / Engine / Data List.

      Click here

    • Enter the following menus: Chassis / EMPS / Data List.

      Click here

    • Enter the following menus: Body Electrical / Combination Meter / Data List.

      Click here

    • Enter the following menus: Body Electrical / Air Conditioner / Data List.

      Click here

    • Enter the following menus: Body Electrical / Main Body / Data List.

      Click here

    • Enter the following menus: Body Electrical / Power Source Control / Data List.

      Click here

    • Enter the following menus: Body Electrical / SRS Airbag / Data List.

      Click here

    • Enter the following menus: Body Electrical / Head Up Display / Data List.

      Click here

    • Enter the following menus: Body Electrical / Occupant Detection / Data List.

      Click here

    • Enter the following menus: Powertrain / Radar Cruise2 / Data List.

      Click here

    • Enter the following menus: Chassis / Circumference Monitoring Camera Control Module / Data List.

      Click here

    • Enter the following menus: Body Electrical / Vehicle Proximity Notification System / Data List.

      Click here

    • Enter the following menus: Body Electrical / Driver Seat / Data List.

      Click here

    • Enter the following menus: Body Electrical / Tilt & Telescopic / Data List.

      Click here

    • Enter the following menus: Chassis / Tire Pressure Monitor / Data List.

      Click here

    • Enter the following menus: Body Electrical / Blind Spot Monitor Master / Data List.

      Click here

    • Enter the following menus: Powertrain / Body Electrical / AFS / Data List.

      Click here

    • Enter the following menus: Body Electrical / HL AutoLeveling / Data List.

      Click here

READ NEXT:

 Terminals Of Ecu

TERMINALS OF ECU NOTICE: After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to re

 Problem Symptoms Table

PROBLEM SYMPTOMS TABLE HINT: Use the table below to help determine the cause of problem symptoms. Inspect the fuses and relays related to this system before inspecting the suspected areas below.

 How To Proceed With Troubleshooting

CAUTION / NOTICE / HINT PRECAUTIONS WHEN TROUBLESHOOTING NOTICE: Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with

SEE MORE:

 Stereo Jack Adapter Light does not Illuminate

DESCRIPTION Power is supplied to the No. 1 stereo jack adapter assembly illumination from the radio receiver assembly. WIRING DIAGRAM CAUTION / NOTICE / HINT NOTICE: Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or cali

 Installation

INSTALLATION PROCEDURE 1. INSTALL ULTRASONIC SENSOR CUSHION SET HINT: Only perform this procedure when removing and installing the ultrasonic sensor cushion set. (a) Install the ultrasonic sensor cushion set as shown in the illustration. Install in this Direction - - 2. INSTALL FRONT C

© 2016-2024 Copyright www.lexguide.net
