Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fks (cooling) / Coolant

Components

COMPONENTS

ILLUSTRATION

*1

RADIATOR CAP SUB-ASSEMBLY

*2

RADIATOR DRAIN COCK PLUG

*3

NO. 1 ENGINE UNDER COVER

-

-

Replacement

REPLACEMENT

CAUTION / NOTICE / HINT

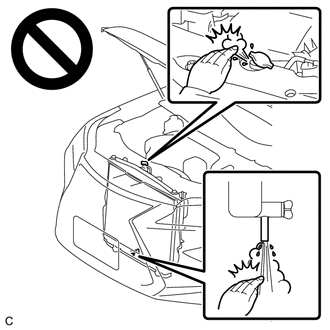

CAUTION:

Do not remove the radiator cap sub-assembly or radiator drain cock plug while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.

PROCEDURE

1. DRAIN ENGINE COOLANT

Click here

2. ADD ENGINE COOLANT

Click here

3. INSPECT FOR COOLANT LEAK

Click here
