Lexus ES: Components

COMPONENTS

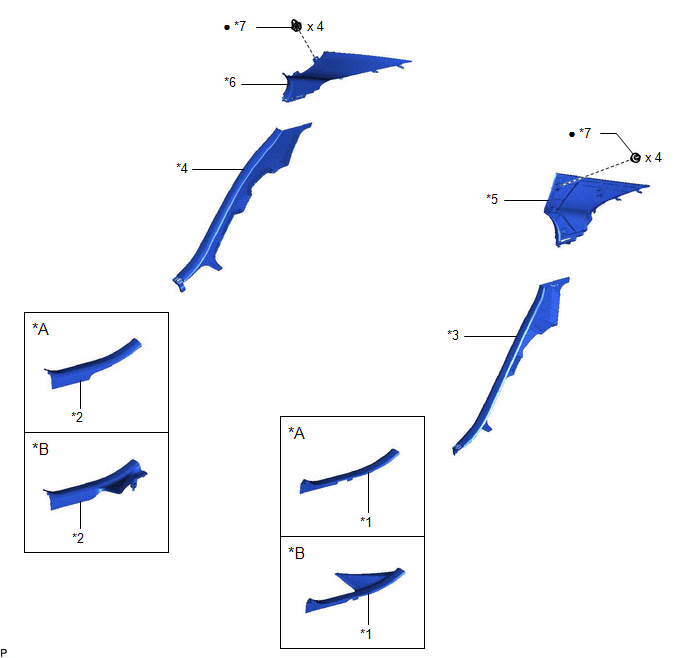

ILLUSTRATION

*A

for HV Model

*B

for Gasoline Model

*1

REAR DOOR SCUFF PLATE LH

*2

REAR DOOR SCUFF PLATE RH

*3

REAR SEAT SIDE GARNISH LH

*4

REAR SEAT SIDE GARNISH RH

*5

ROOF SIDE INNER GARNISH ASSEMBLY LH

*6

ROOF SIDE INNER GARNISH ASSEMBLY RH

*7

CLIP

-

-

Non-reusable part

-

-

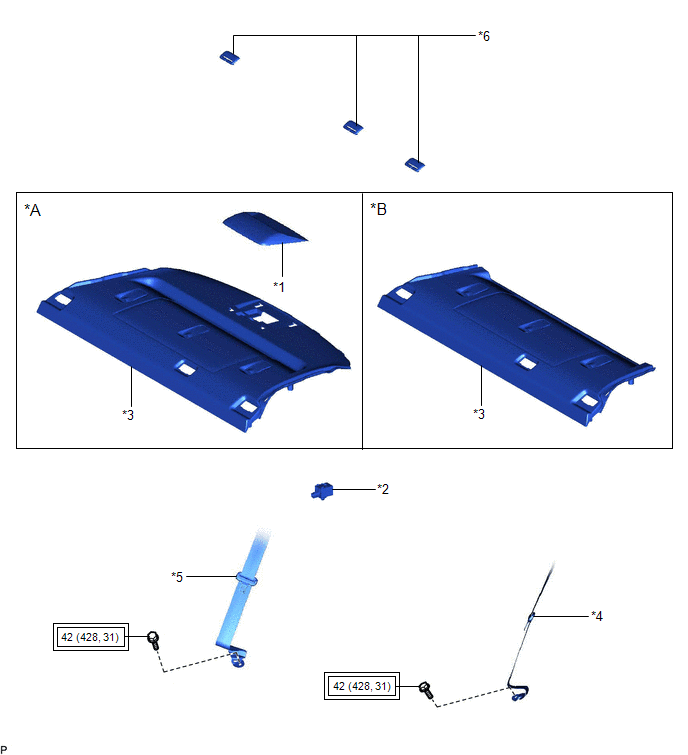

ILLUSTRATION

*A

w/o Rear Sunshade

*B

w/ Rear Sunshade

*1

CENTER STOP LIGHT SET

*2

NO. 2 CLEARANCE WARNING BUZZER

*3

PACKAGE TRAY TRIM PANEL ASSEMBLY

*4

REAR SEAT OUTER BELT ASSEMBLY LH

*5

REAR SEAT OUTER BELT ASSEMBLY RH

*6

REAR SEAT SHOULDER BELT COVER

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-
