Lexus ES: Components
COMPONENTS

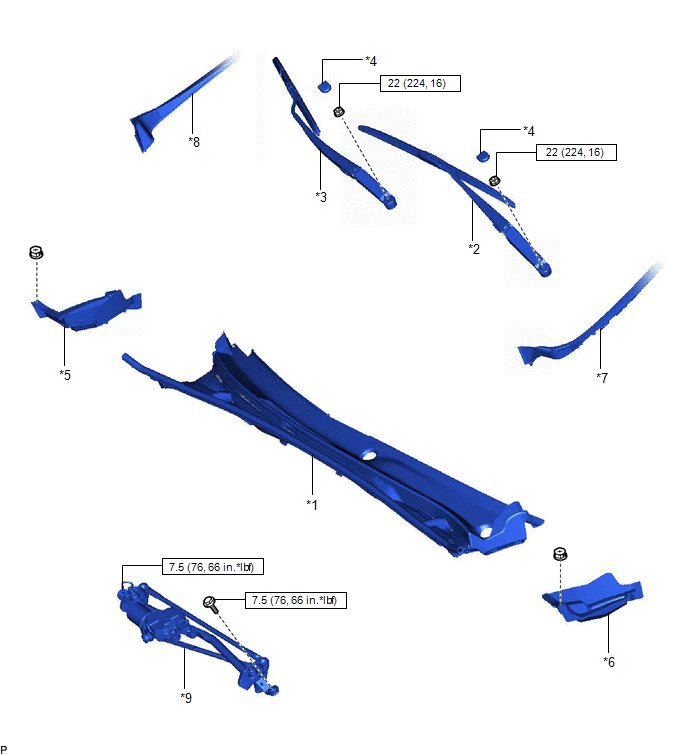

ILLUSTRATION
| *1 | COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY | *2 | FRONT WIPER ARM AND BLADE ASSEMBLY LH |
| *3 | FRONT WIPER ARM AND BLADE ASSEMBLY RH | *4 | FRONT WIPER ARM HEAD CAP |
| *5 | NO. 2 COWL TOP PANEL INSULATOR | *6 | NO. 3 COWL TOP PANEL INSULATOR |
| *7 | WINDSHIELD OUTSIDE MOULDING LH | *8 | WINDSHIELD OUTSIDE MOULDING RH |
| *9 | WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

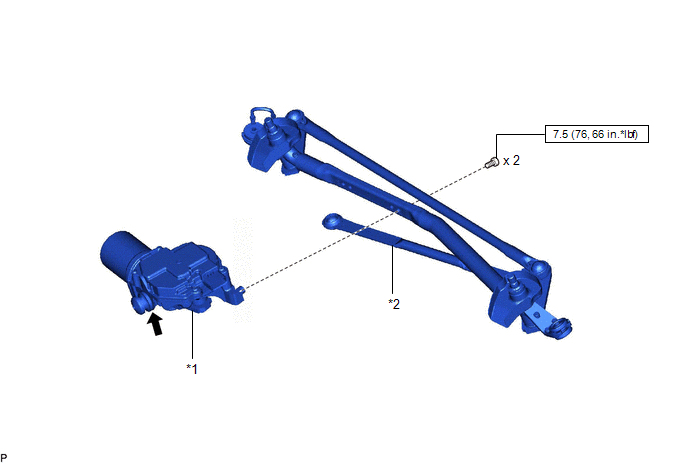

ILLUSTRATION
| *1 | WINDSHIELD WIPER MOTOR ASSEMBLY | *2 | WIPER LINK ASSEMBLY |
| | N*m (kgf*cm, ft.*lbf): Specified torque | .png) | MP grease |
