Lexus ES: Components
COMPONENTS

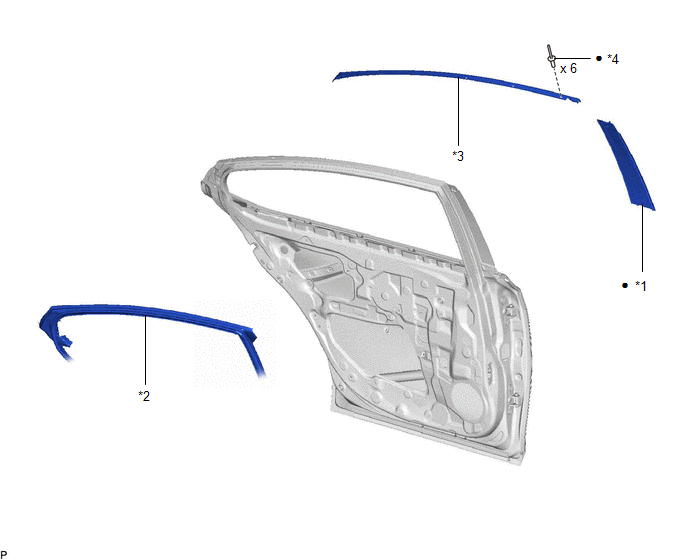

ILLUSTRATION
| *1 | REAR DOOR FRONT WINDOW FRAME MOULDING | *2 | REAR DOOR WEATHERSTRIP |
| *3 | REAR DOOR WINDOW FRAME MOULDING SUB-ASSEMBLY | *4 | RIVET |
| ● | Non-reusable part | - | - |
