Lexus ES: Components
COMPONENTS

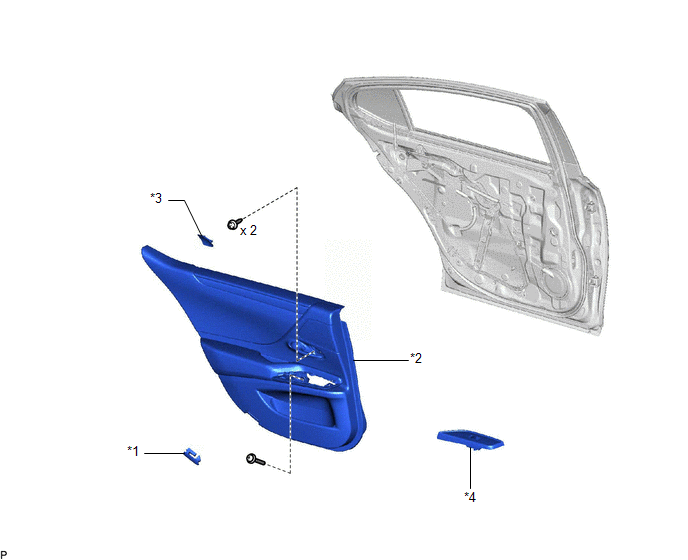

ILLUSTRATION
| *1 | COURTESY LIGHT ASSEMBLY | *2 | REAR DOOR TRIM BOARD SUB-ASSEMBLY |
| *3 | REAR DOOR UPPER TRIM PAD | *4 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL |

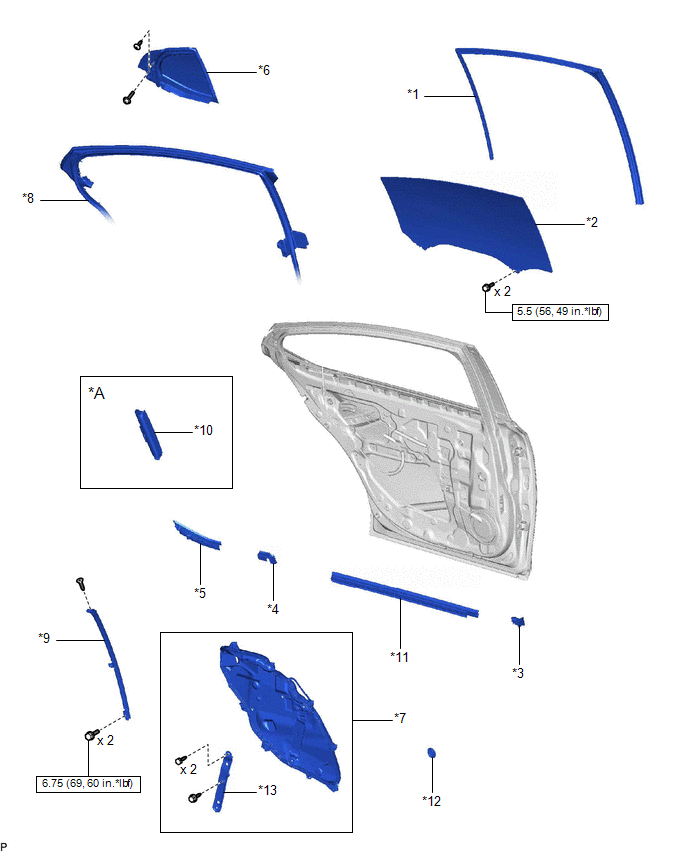

ILLUSTRATION
| *A | w/ Rear Door Sunshade | - | - |
| *1 | REAR DOOR GLASS RUN | *2 | REAR DOOR GLASS SUB-ASSEMBLY |
| *3 | REAR DOOR NO. 2 SERVICE HOLE COVER | *4 | REAR DOOR NO. 2 VENT SEAL |
| *5 | REAR DOOR PANEL PROTECTOR | *6 | REAR DOOR QUARTER WINDOW GLASS SUB-ASSEMBLY |
| *7 | REAR DOOR SERVICE HOLE COVER | *8 | REAR DOOR WEATHERSTRIP |
| *9 | REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY | *10 | REAR SIDE CURTAIN ASSEMBLY |
| *11 | REAR DOOR INNER GLASS WEATHERSTRIP | *12 | HOLE PLUG |
| *13 | BRACKET | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

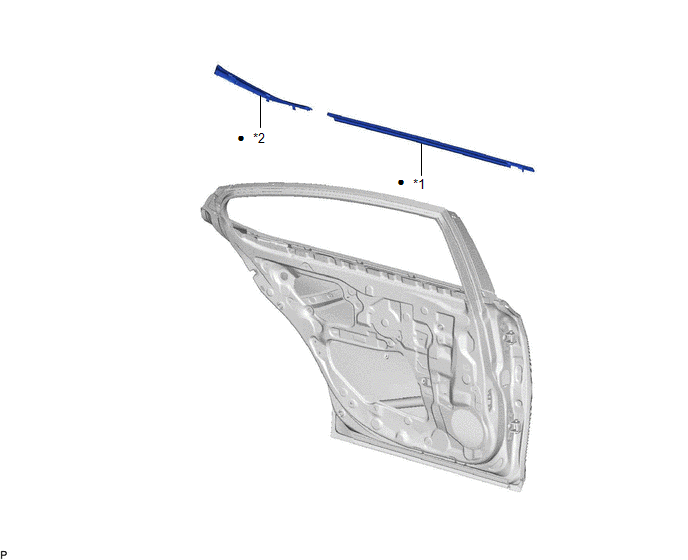

ILLUSTRATION
| *1 | REAR DOOR BELT MOULDING ASSEMBLY | *2 | REAR DOOR BELT MOULDING SUB-ASSEMBLY |
| ● | Non-reusable part | - | - |
