COMPONENTS

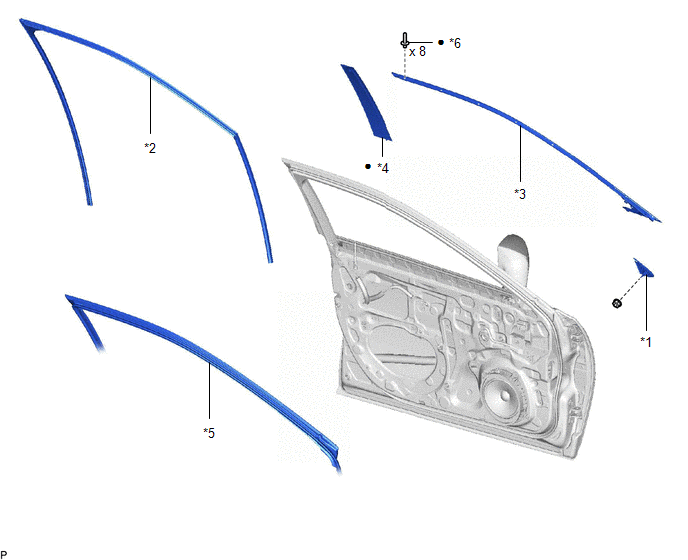

ILLUSTRATION

*1

FRONT DOOR FRONT LOWER FRAME UPPER COVER

*2

FRONT DOOR GLASS RUN

*3

FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY

*4

FRONT DOOR REAR WINDOW FRAME MOULDING

*5

FRONT DOOR WEATHERSTRIP

*6

RIVET

●

Non-reusable part

-

-
