Lexus ES: Components
COMPONENTS

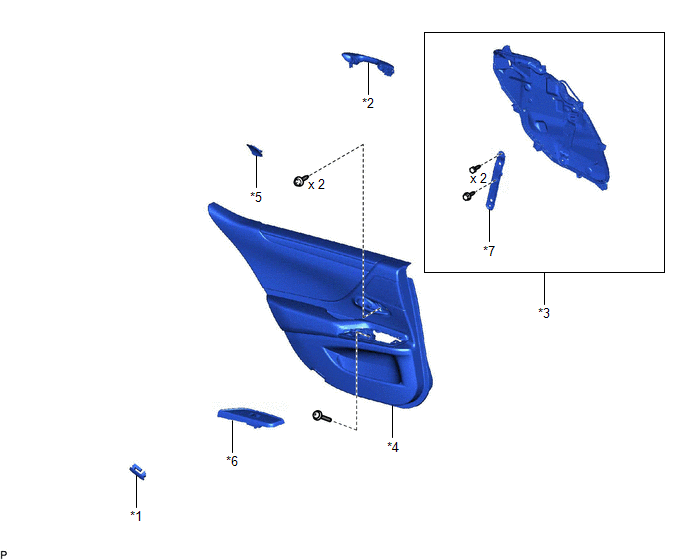

ILLUSTRATION
| *1 | COURTESY LIGHT ASSEMBLY | *2 | REAR DOOR ILLUMINATION LIGHT (REAR DOOR OUTSIDE HANDLE ASSEMBLY) |
| *3 | REAR DOOR SERVICE HOLE COVER | *4 | REAR DOOR TRIM BOARD SUB-ASSEMBLY |
| *5 | REAR DOOR TRIM UPPER PAD | *6 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL |
| *7 | BRACKET | - | - |
