Lexus ES: Components
COMPONENTS

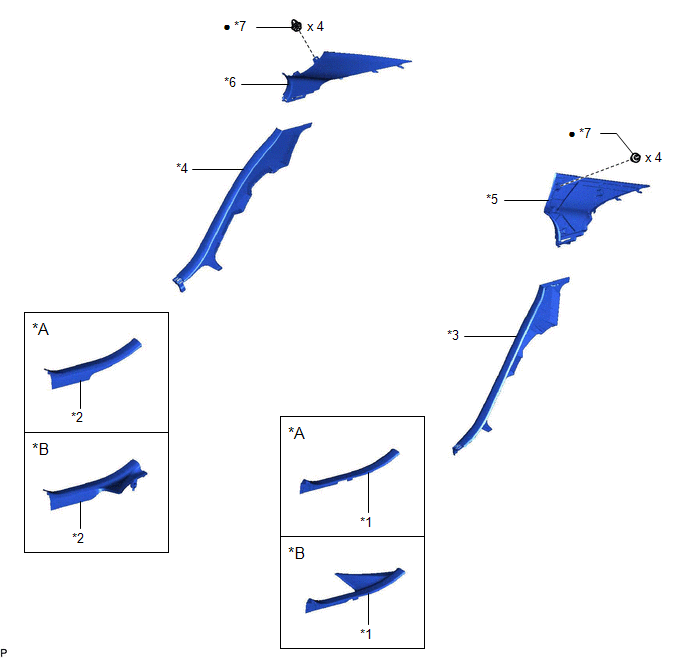

ILLUSTRATION
| *A | for HV Model | *B | for Gasoline Model |
| *1 | REAR DOOR SCUFF PLATE LH | *2 | REAR DOOR SCUFF PLATE RH |
| *3 | REAR SEAT SIDE GARNISH LH | *4 | REAR SEAT SIDE GARNISH RH |
| *5 | ROOF SIDE INNER GARNISH ASSEMBLY LH | *6 | ROOF SIDE INNER GARNISH ASSEMBLY RH |
| *7 | CLIP | - | - |
| ● | Non-reusable part | - | - |

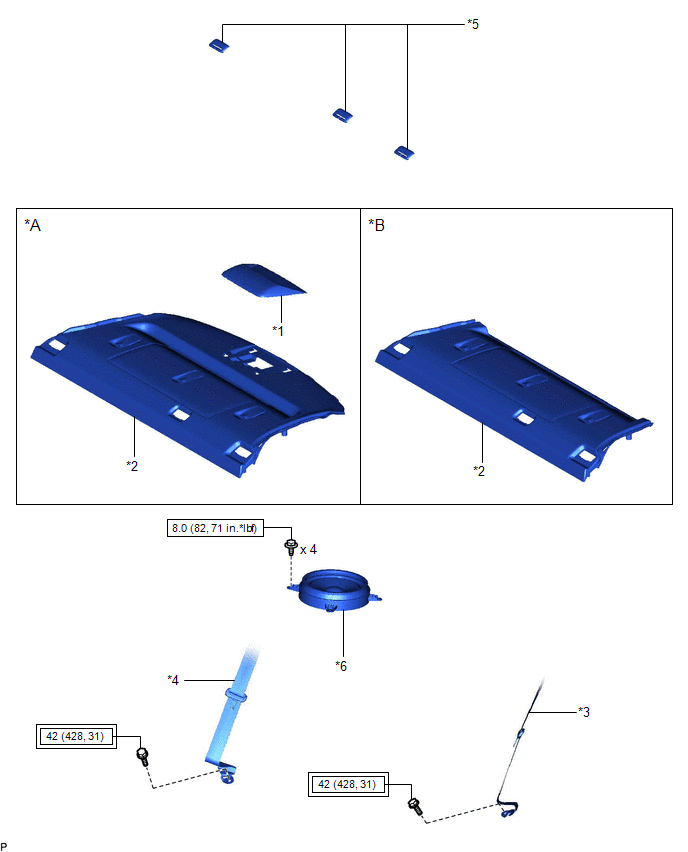

ILLUSTRATION
| *A | w/o Rear Sunshade | *B | w/ Rear Sunshade |
| *1 | CENTER STOP LIGHT SET | *2 | PACKAGE TRAY TRIM PANEL ASSEMBLY |
| *3 | REAR SEAT OUTER BELT ASSEMBLY LH | *4 | REAR SEAT OUTER BELT ASSEMBLY RH |
| *5 | REAR SEAT SHOULDER BELT COVER | *6 | SPEAKER ASSEMBLY WITH BRACKET |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | .png) | N*m (kgf*cm, ft.*lbf) : Specified torque |
