Lexus ES: Components
COMPONENTS

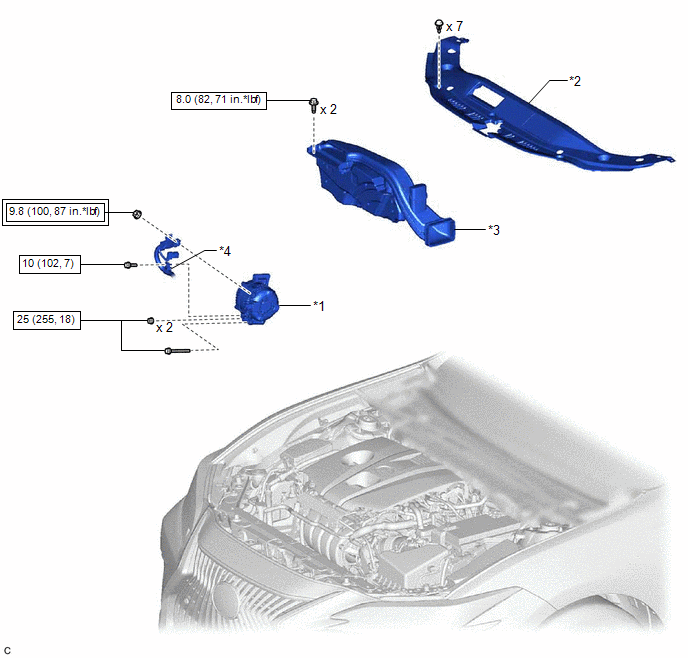

ILLUSTRATION
| *1 | GENERATOR ASSEMBLY | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | INLET AIR CLEANER ASSEMBLY | *4 | WIRE HARNESS CLAMP BRACKET |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | .png) | N*m (kgf*cm, ft.*lbf): Specified torque |

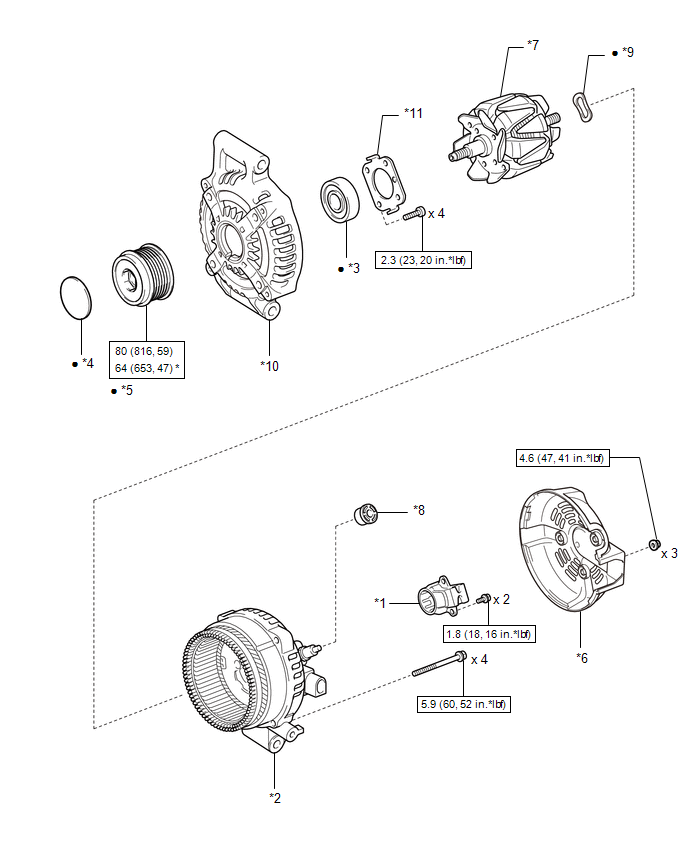

ILLUSTRATION
| *1 | GENERATOR BRUSH HOLDER ASSEMBLY | *2 | GENERATOR COIL ASSEMBLY |
| *3 | GENERATOR ROTOR BEARING | *4 | GENERATOR PULLEY CAP |
| *5 | GENERATOR PULLEY WITH CLUTCH | *6 | GENERATOR REAR END COVER |
| *7 | GENERATOR ROTOR ASSEMBLY | *8 | GENERATOR TERMINAL INSULATOR |
| *9 | WASHER | *10 | GENERATOR DRIVE END FRAME |
| *11 | RETAINER PLATE | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST |
| ● | Non-reusable part | - | - |
