Lexus ES (XZ10) Service Manual / Engine & Hybrid System / Hybrid / Battery Control / Motor Generator Control Computer / Components

COMPONENTS

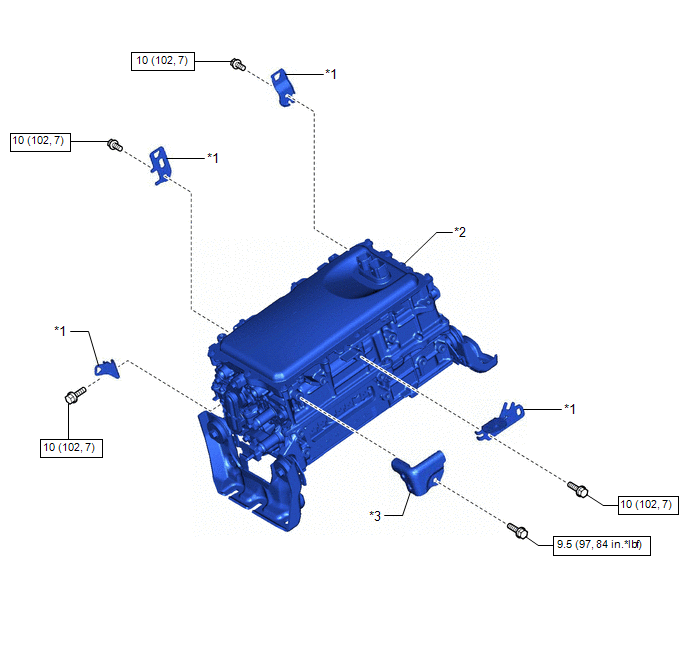

ILLUSTRATION

*1

WIRE HARNESS CLAMP BRACKET

*2

INVERTER WITH CONVERTER ASSEMBLY

*3

INVERTER PROTECTOR

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

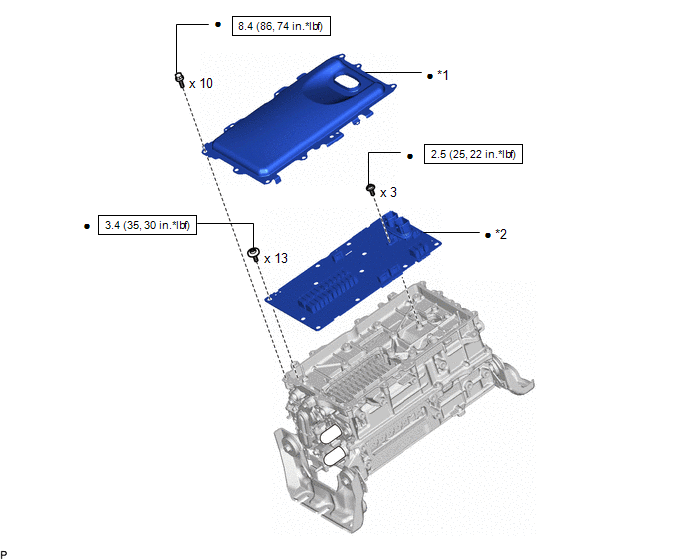

ILLUSTRATION

*1

INVERTER UPPER COVER

*2

MOTOR GENERATOR CONTROL ECU KIT

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non - reusable part
