Lexus ES: Components
COMPONENTS

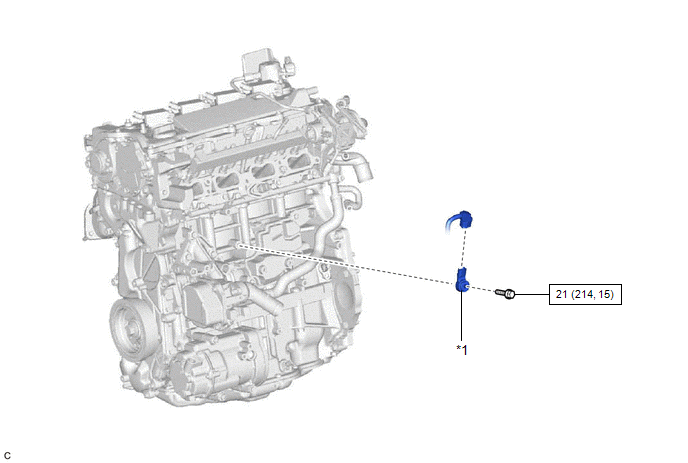

ILLUSTRATION
| *1 | KNOCK CONTROL SENSOR | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
