Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fxs (emission Control) / Egr Cooler / Components

COMPONENTS

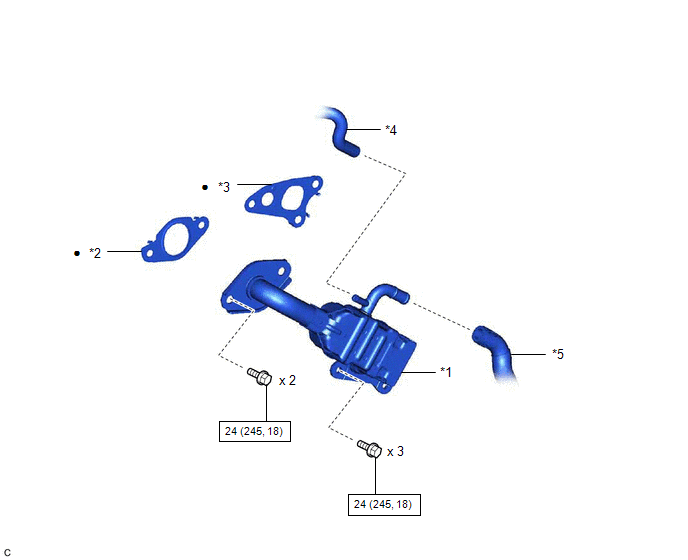

ILLUSTRATION

*1

EGR COOLER ASSEMBLY

*2

EGR VALVE GASKET

*3

EGR COOLER GASKET

*4

NO. 4 WATER BY-PASS HOSE

*5

NO. 3 WATER BY-PASS HOSE

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
