COMPONENTS

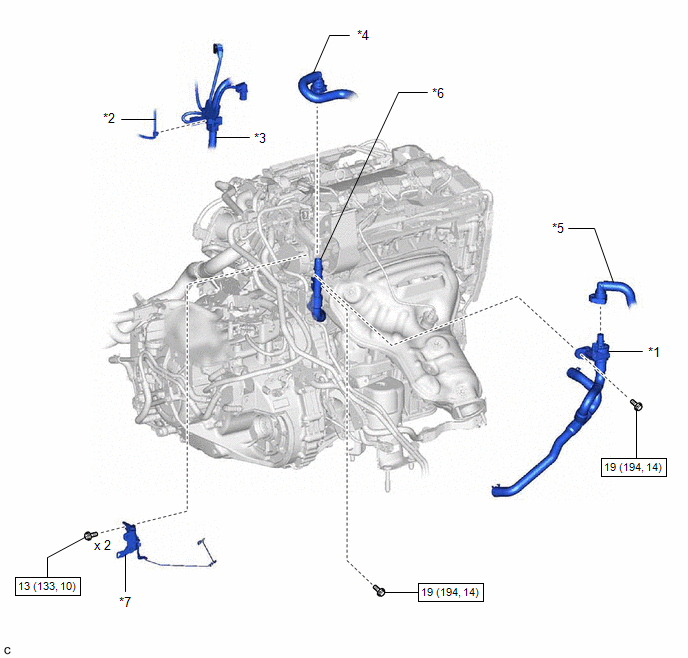

ILLUSTRATION

*1

FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)

*2

VACUUM HOSE

*3

ENGINE WIRE HARNESS

*4

OUTLET HEATER HOSE

*5

INLET HEATER HOSE

*6

NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY

*7

WATER HOSE CLAMP BRACKET

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
