COMPONENTS

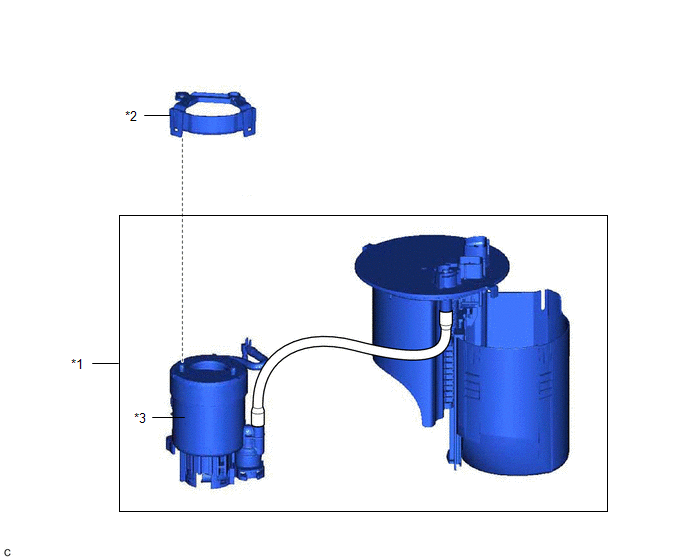

ILLUSTRATION

*1

FUEL SUCTION PLATE SUB-ASSEMBLY

*2

NO. 1 FUEL SUCTION SUPPORT

*3

FUEL FILTER

-

-
