Lexus ES (XZ10) Service Manual / Engine & Hybrid System / 2gr-fks (engine Mechanical) / Front Crankshaft Oil Seal / Components

COMPONENTS

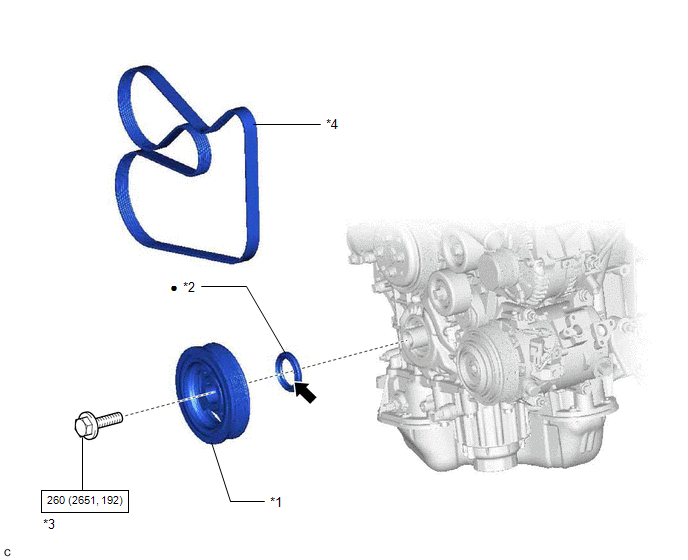

ILLUSTRATION

*1

CRANKSHAFT PULLEY

*2

TIMING CHAIN CASE OIL SEAL

*3

CRANKSHAFT PULLEY SET BOLT

*4

V-RIBBED BELT

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

MP grease

-

-
