Lexus ES: Components
COMPONENTS

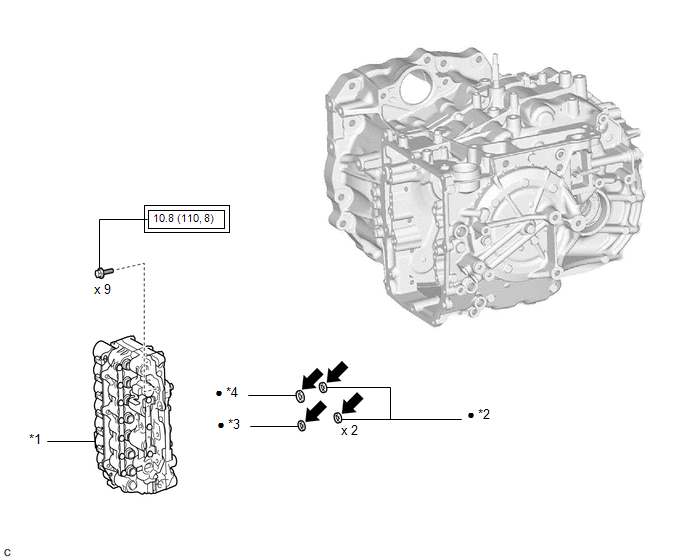

ILLUSTRATION
| *1 | TRANSMISSION VALVE BODY ASSEMBLY | *2 | TRANSAXLE CASE GASKET |
| *3 | NO. 1 FRONT OIL PUMP COVER GASKET | *4 | NO. 2 FRONT OIL PUMP COVER GASKET |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
.png) | Toyota Genuine ATF WS | - | - |

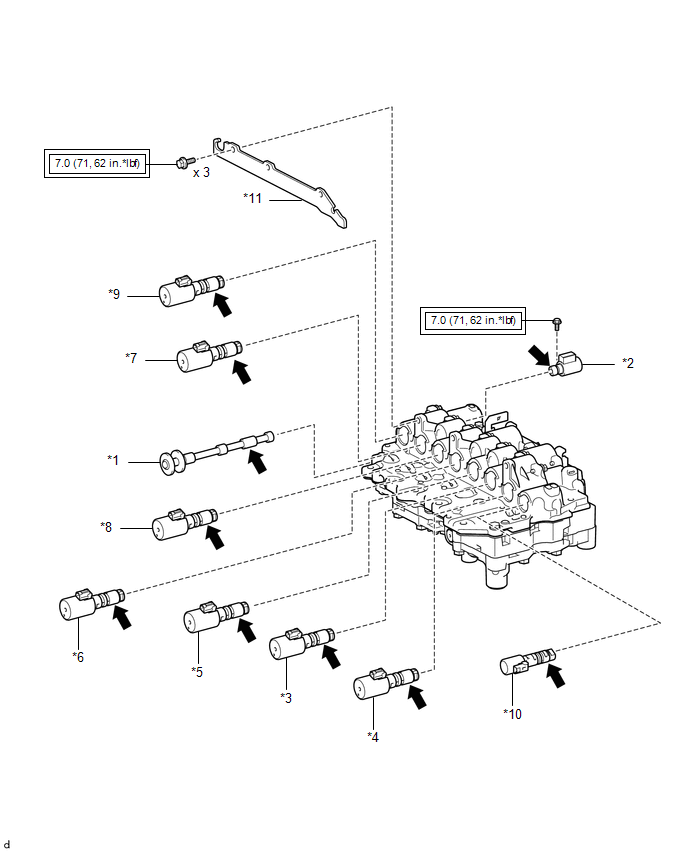

ILLUSTRATION
| *1 | MANUAL VALVE | *2 | SOLENOID (SL) VALVE |
| *3 | SOLENOID (SL1) VALVE | *4 | SOLENOID (SL2) VALVE |
| *5 | SOLENOID (SL3) VALVE | *6 | SOLENOID (SL4) VALVE |
| *7 | SOLENOID (SL5) VALVE | *8 | SOLENOID (SL6) VALVE |
| *9 | SOLENOID (SLU) VALVE | *10 | SOLENOID (SLT) VALVE |
| *11 | SOLENOID LOCK PLATE | - | - |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | | Toyota Genuine ATF WS |
