Lexus ES: Components
COMPONENTS

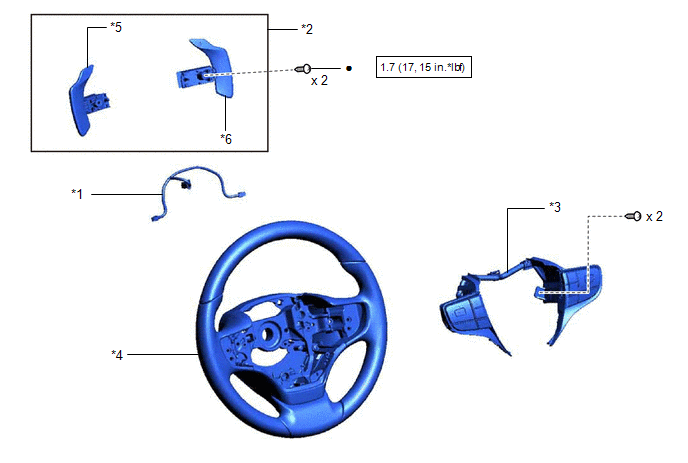

ILLUSTRATION
.png)
| *1 | NO. 1 SWITCH WIRE | *2 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | STEERING WHEEL ASSEMBLY |
| *5 | SHIFT PADDLE SWITCH LH (TRANSMISSION SHIFT SWITCH ASSEMBLY) | *6 | SHIFT PADDLE SWITCH RH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| ★ | Precoated part | - | - |
