COMPONENTS
ILLUSTRATION
.png)

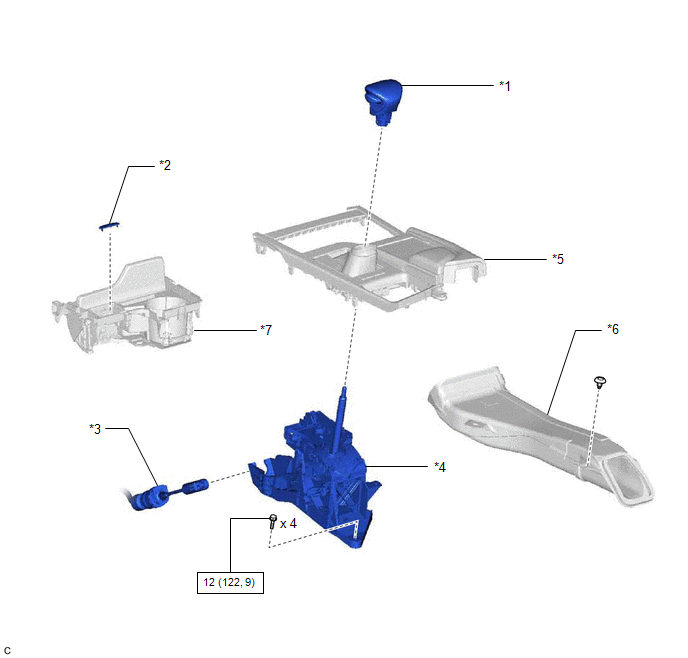

| *1 | SHIFT LEVER KNOB SUB-ASSEMBLY | *2 | SHIFT LOCK RELEASE BUTTON COVER |
| *3 | TRANSMISSION CONTROL CABLE ASSEMBLY | *4 | TRANSMISSION FLOOR SHIFT ASSEMBLY |
| *5 | REAR UPPER CONSOLE PANEL SUB-ASSEMBLY | *6 | NO. 1 CONSOLE BOX DUCT |
| *7 | UPPER CONSOLE PANEL SUB-ASSEMBLY | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
.png)

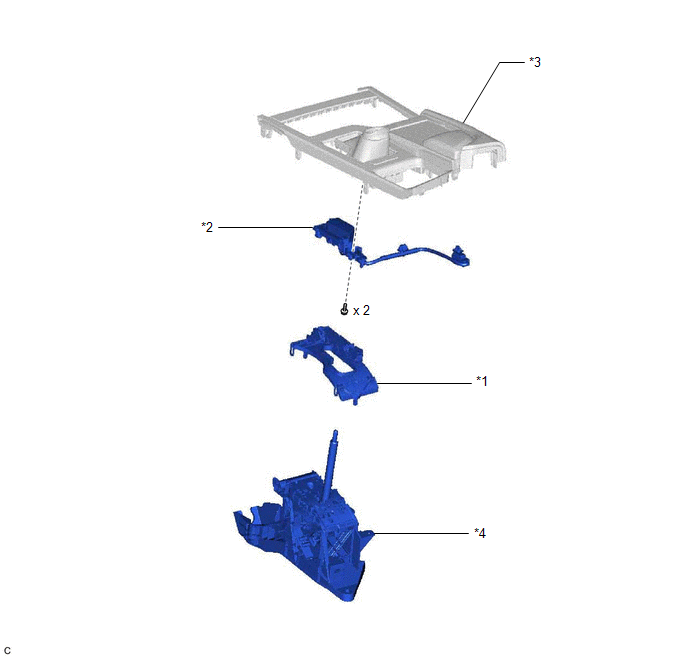

| *1 | LOWER POSITION INDICATOR HOUSING | *2 | SHIFT POSITION INDICATOR |
| *3 | REAR UPPER CONSOLE PANEL SUB-ASSEMBLY | *4 | SHIFT LOCK CONTROL UNIT ASSEMBLY |
