Lexus ES (XZ10) Service Manual / Drivetrain / Ua80e (automatic Transmission / Transaxle) / Differential Oil Seal / Components

COMPONENTS

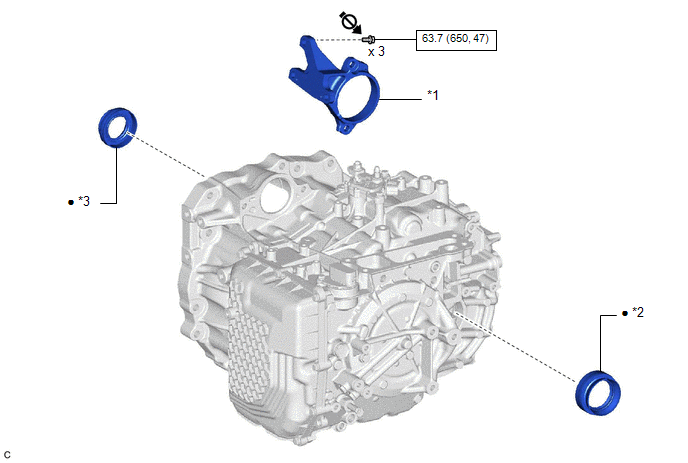

ILLUSTRATION

*1

DRIVE SHAFT BEARING BRACKET

*2

FRONT DRIVE SHAFT OIL SEAL LH

*3

FRONT DRIVE SHAFT OIL SEAL RH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Do not apply lubricants to the threaded parts

-

-
