Lexus ES (XZ10) Service Manual / Drivetrain / P710 (hybrid Transmission / Transaxle) / Hybrid Transaxle Oil Seal / Components

COMPONENTS

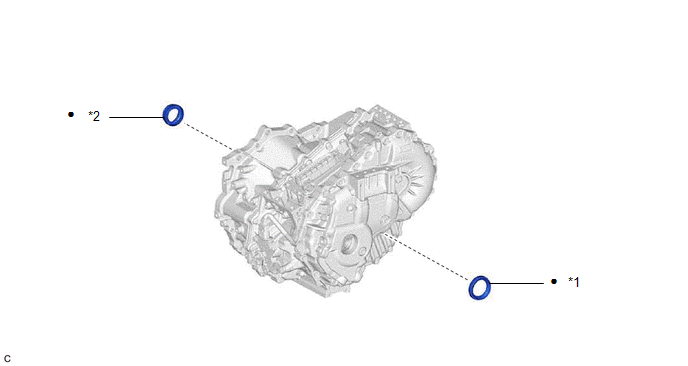

ILLUSTRATION

*1

FRONT DRIVE SHAFT OIL SEAL LH

*2

FRONT DRIVE SHAFT OIL SEAL RH

●

Non-reusable part

-

-
