Lexus ES: Components
Lexus ES (XZ10) Service Manual / Drivetrain / Axle And Differential / Differential Mount Cushion / Components
COMPONENTS

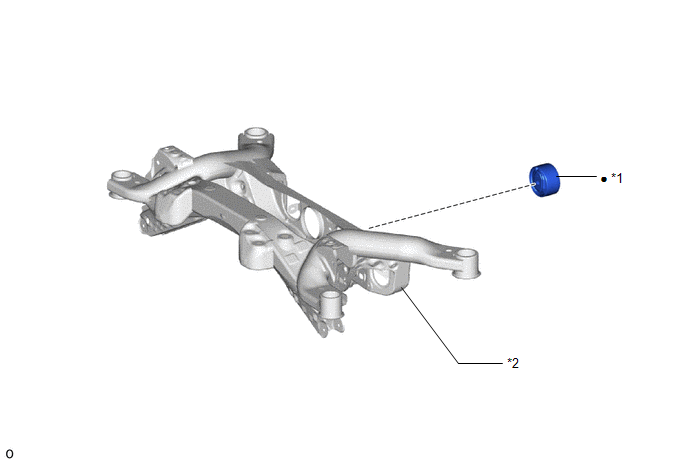

ILLUSTRATION
| *1 | REAR NO. 1 DIFFERENTIAL MOUNT CUSHION | *2 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
| ● | Non-reusable part | - | - |
