Lexus ES: Components
COMPONENTS
ILLUSTRATION

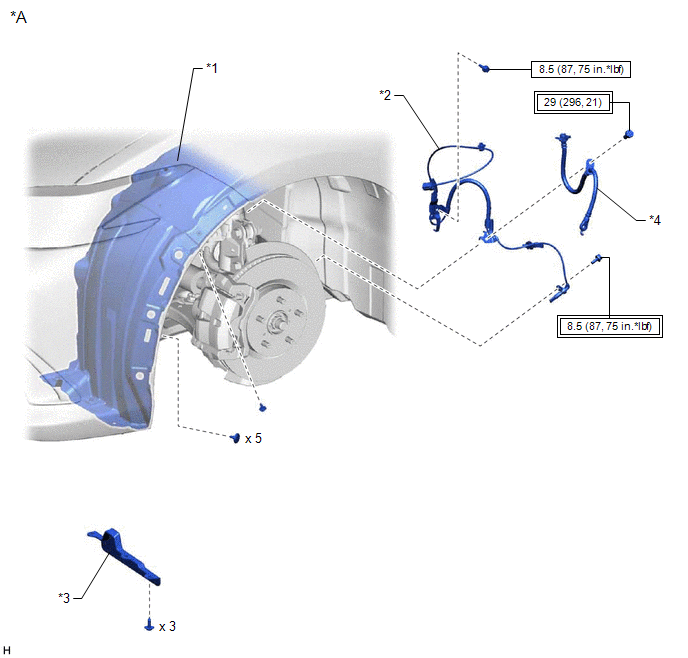

| *A | w/o AVS | - | - |
| *1 | FRONT FENDER LINER | *2 | FRONT SPEED SENSOR |
| *3 | FRONT WHEEL OPENING EXTENSION PAD | *4 | FRONT FLEXIBLE HOSE |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | .png) | N*m (kgf*cm, ft.*lbf): Specified torque |
ILLUSTRATION

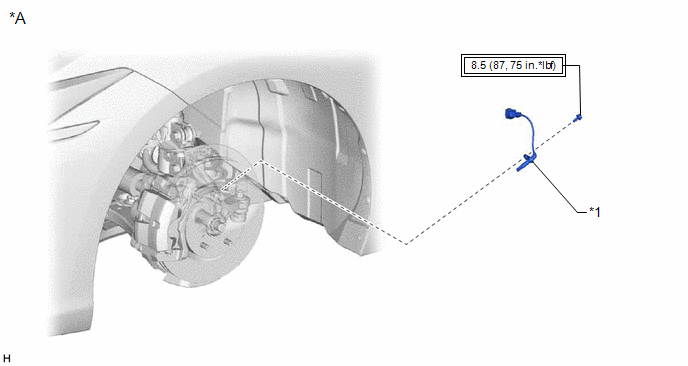

| *A | w/ AVS | - | - |
| *1 | FRONT SPEED SENSOR | - | - |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
