Lexus ES: Components

Lexus ES (XZ10) Service Manual / Audio & Visual & Telematics / Park Assist / Monitoring / Television Camera(for Rear) / Components

COMPONENTS

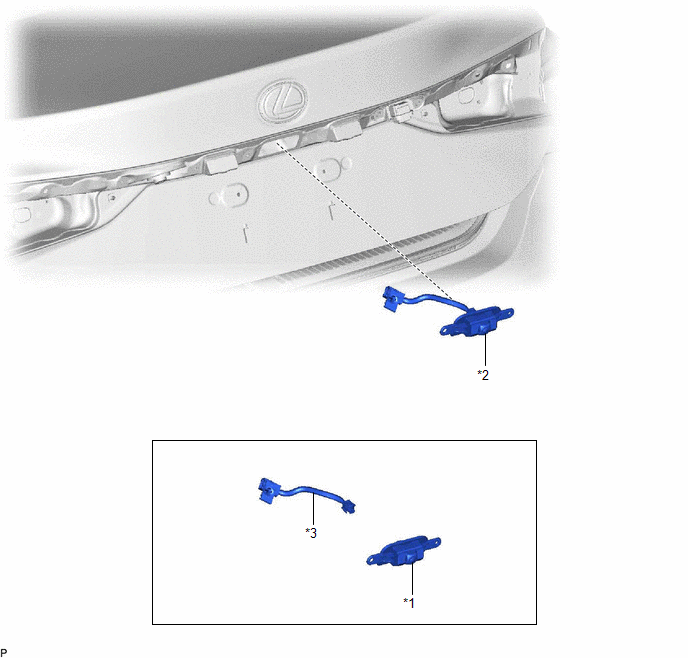

ILLUSTRATION

*1

REAR TELEVISION CAMERA ASSEMBLY

*2

TELEVISION CAMERA ASSEMBLY WITH WIRE

*3

TELEVISION CAMERA WIRE

-

-
