Lexus ES: Adjustment

ADJUSTMENT

PROCEDURE

1. SECURE VEHICLE

(a) Fully apply the parking brake and chock a wheel.

CAUTION:

  • Make sure to apply the parking brake and chock a wheel before performing this procedure.
  • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

2. REMOVE CONSOLE BOX ASSEMBLY

Click here

3. ADJUST SHIFT LEVER POSITION

NOTICE:

Before adjusting the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.

HINT:

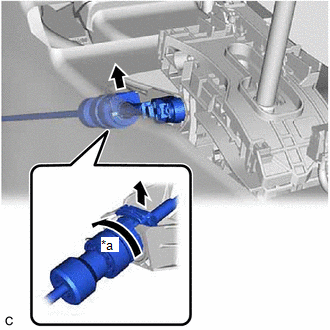

Whether the transmission control cable assembly is type A or type B can be determined by the shape of the end.

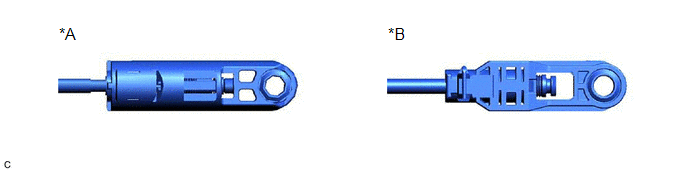

*A

Type A

*B

Type B

(a) for Type A:

(1) Disconnect the transmission control cable assembly from the transmission floor shift assembly.

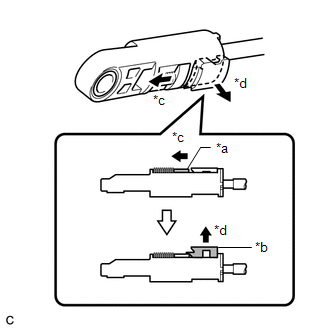

(2) Slide the slider of the transmission control cable assembly in the direction indicated by the arrow in the illustration and pull the lock piece outward.

*a

Slider

*b

Lock Piece

*c

Slide

*d

Pull

(3) Connect the transmission control cable assembly to the transmission floor shift assembly.

NOTICE:

  • Check that the lock piece is pulled out.
  • Push the end of the transmission control cable assembly all the way to the base of the transmission floor shift assembly pin.

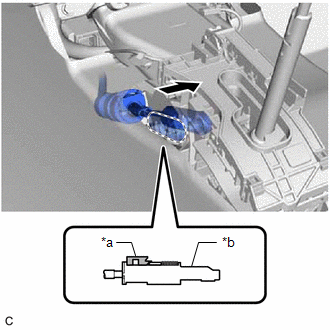

  • Connect the transmission control cable assembly so that the lock piece faces the driver side.

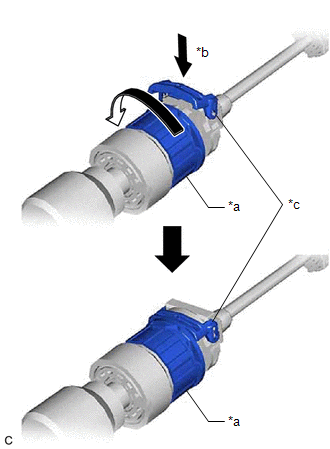

*a

Lock Piece

*b

Adjuster Case

(4) Push the lock piece into the adjuster case.

NOTICE:

  • Check that the park/neutral position switch assembly and shift lever are in N.
  • Securely push in the lock piece until the slider lock is engaged.

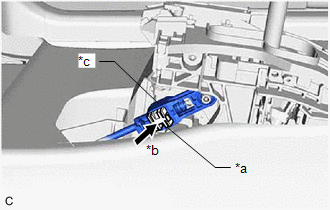

*a

Lock Piece

*b

Push in

*c

Adjuster Case

(5) After adjusting the shift lever position, check the position and operation of the shift lever. If there is a problem, adjust the shift lever position again.

(b) for Type B:

(1) Disconnect the transmission control cable assembly from the transmission floor shift assembly.

(2) Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

*a

Counterclockwise

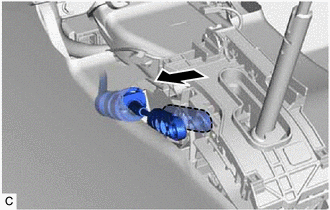

(3) Slide the adjuster case cover in the direction shown by the arrow.

*a

Adjuster Case Cover

*b

Slide

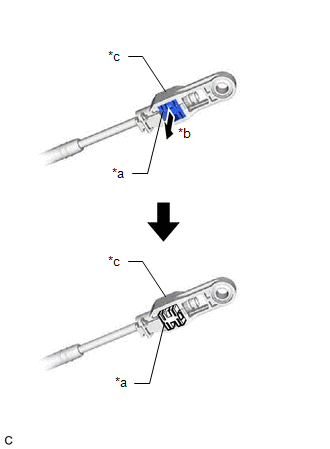

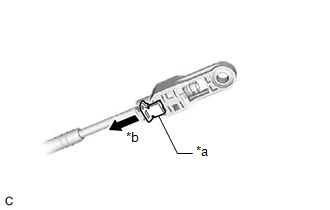

(4) Using a precision screwdriver, pull out the lock piece of the adjuster case.

*a

Lock Piece

*b

Pull Out

*c

Adjuster Case

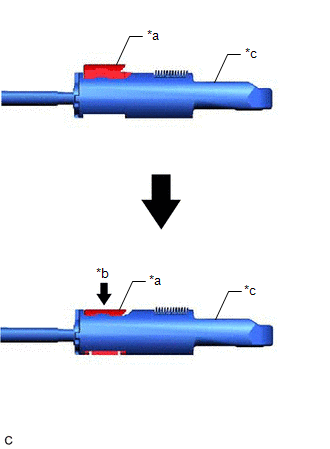

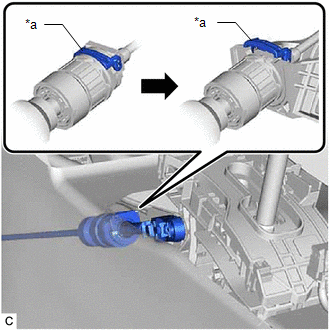

(5) Turn the lock nut of the transmission control cable assembly counterclockwise. While holding the lock nut, push in the stopper.

*a

Lock Nut

*b

Push in

*c

Stopper

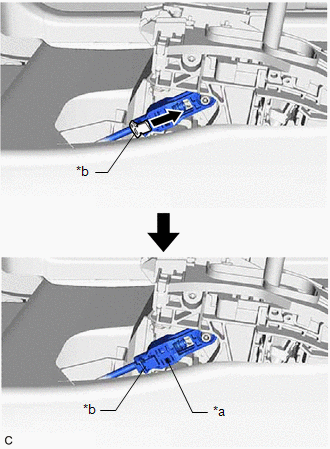

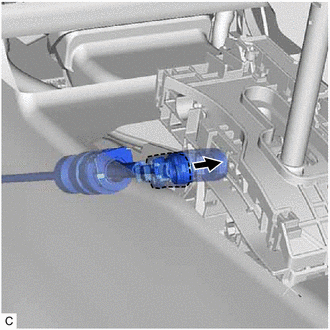

(6) Connect the transmission control cable assembly to the transmission floor shift assembly.

NOTICE:

After installation, check that the outer part of the stopper is as shown in the illustration.

*a

Stopper

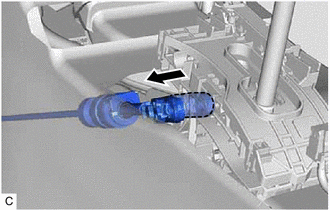

(7) Connect the transmission control cable assembly to the transmission floor shift assembly.

NOTICE:

  • Before connecting the transmission control cable assembly, check that the shift lever is in N.
  • Securely connect the end of the transmission control cable assembly to the transmission floor shift assembly.

(8) Push in the lock piece of the adjuster case to lock it.

*a

Lock Piece

*b

Push in

*c

Adjuster Case

(9) Move the adjuster case cover in the direction shown by the arrow.

NOTICE:

If the adjuster case cover is not moved far enough so that the adjuster case cover engages the lock piece, the transmission control cable assembly will not be able to lock, and reliable shift operation will not be possible.

*a

Lock Piece

*b

Adjuster Case Cover

4. INSTALL CONSOLE BOX ASSEMBLY

Click here
