Lexus ES: Components

COMPONENTS

ILLUSTRATION

*1

BATTERY CLAMP SUB-ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*1

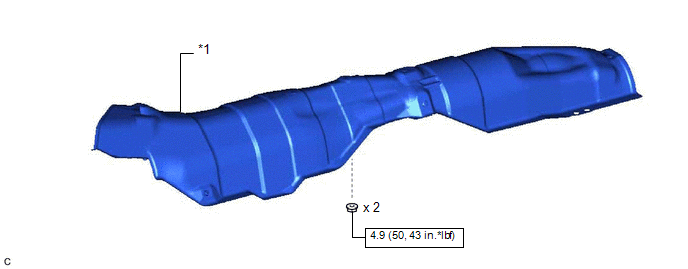

FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*1

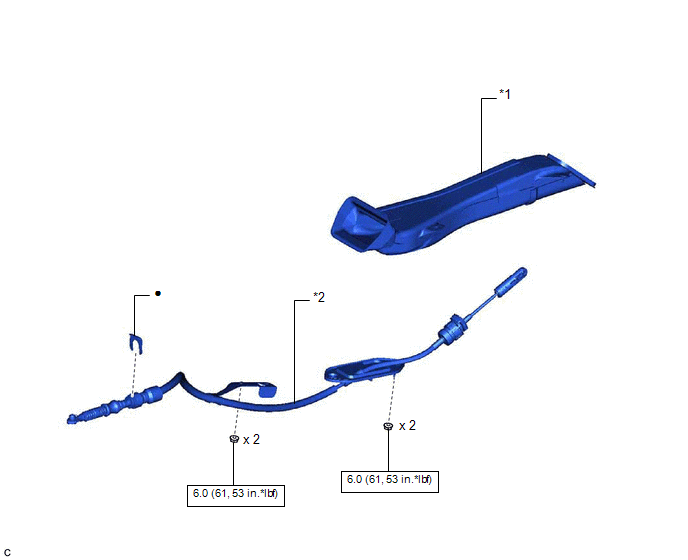

NO. 1 CONSOLE BOX DUCT

*2

TRANSMISSION CONTROL CABLE ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part
