Components
COMPONENTS

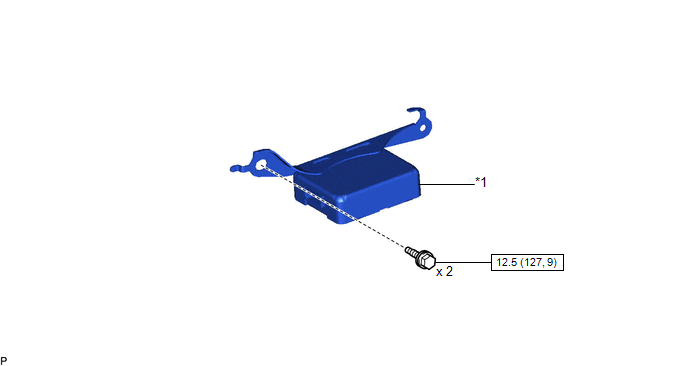

ILLUSTRATION
| *1 | VEHICLE APPROACHING SPEAKER CONTROLLER | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Removal
REMOVAL
PROCEDURE
1. REMOVE RADIO RECEIVER ASSEMBLY WITH SWITCH
Click here .gif)
2. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

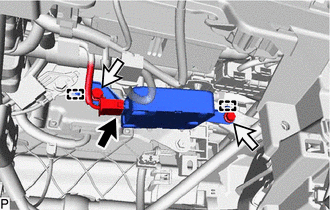

| (a) Remove the 2 bolts. |
|
(b) Disengage the 2 guides.
(c) Disconnect the connector to remove the vehicle approaching speaker controller.
Installation
INSTALLATION
PROCEDURE
1. INSTALL VEHICLE APPROACHING SPEAKER CONTROLLER

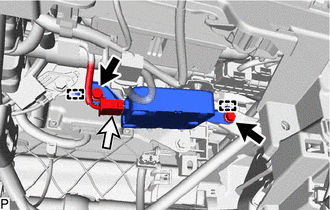

| (a) Connect the connector. |
|
(b) Engage the 2 guides.
(c) Install the vehicle approaching speaker controller with the 2 bolts.
Torque:
12.5 N·m {127 kgf·cm, 9 ft·lbf}
2. INSTALL RADIO RECEIVER ASSEMBLY WITH SWITCH
Click here .gif)
