Lexus ES: Transfer Case Front Oil Seal (for Lh Side)

Lexus ES (XZ10) Service Manual / Drivetrain / Gf1a (transfer / 4wd / Awd) / Transfer Case Front Oil Seal (for Lh Side)

Components

COMPONENTS

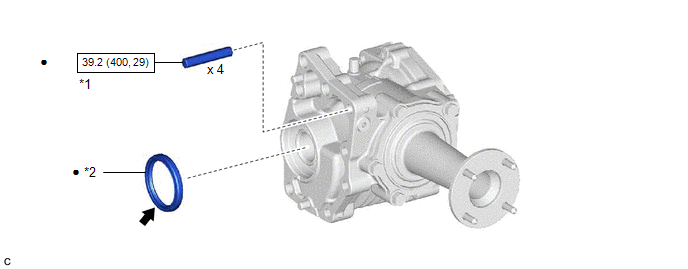

ILLUSTRATION

*1

TRANSFER AND TRANSAXLE SETTING STUD BOLT

*2

TRANSFER CASE OIL SEAL

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

MP grease

Precoated part
