Lexus ES: Tire And Wheel

Components

COMPONENTS

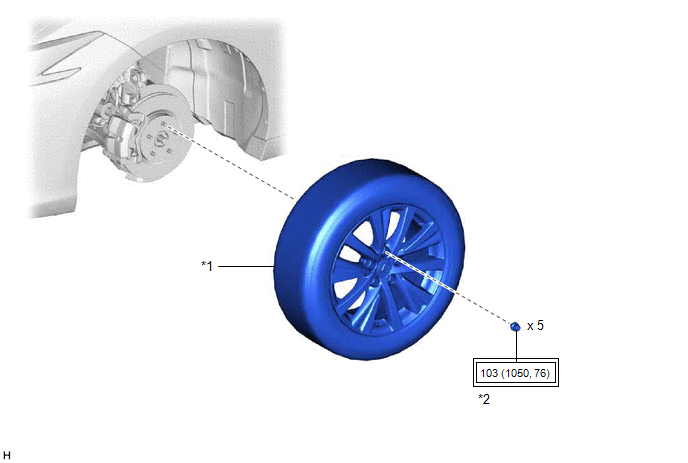

ILLUSTRATION

*1

WHEEL ASSEMBLY

*2

AXLE HUB NUT

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-
