TERMINALS OF ECU

HINT:

Check from the rear of the connector while it is connected to the components.

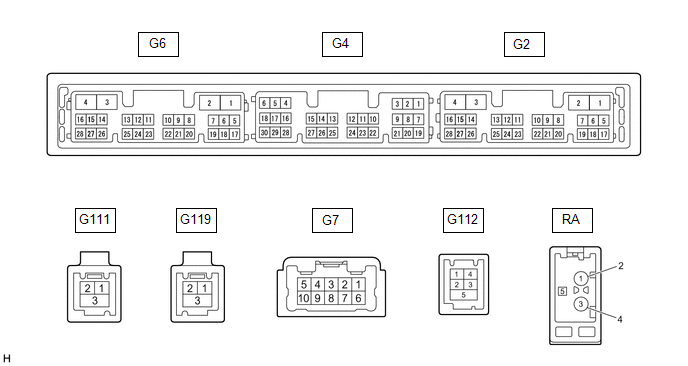

RADIO RECEIVER ASSEMBLY

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G7-1 (FR+) - G6-1 (GND1)

W - W-B

Sound signal (Right)

Audio system playing

A waveform synchronized with sound signals is output

G7-2 (FL+) - G6-1 (GND1)

B - W-B

Sound signal (Left)

Audio system playing

A waveform synchronized with sound signals is output

G7-3 (RL+) - G6-1 (GND1)

B - W-B

Voice signal

Voice guidance sounding

A waveform synchronized with voice signals is output

G7-6 (FR-) - G6-1 (GND1)

R - W-B

Sound signal (Right)

Audio system playing

A waveform synchronized with sound signals is output

G7-7 (FL-) - G6-1 (GND1)

G - W-B

Sound signal (Left)

Audio system playing

A waveform synchronized with sound signals is output

G7-8 (RL-) - G6-1 (GND1)

W - W-B

Voice signal

Audio system playing

A waveform synchronized with sound signals is output

G6-1 (GND1) - Body ground

W-B - Body ground

Ground

Always

Below 1 Ω

G6-2 (GND2) - Body ground

LA-W - Body ground

Ground

Always

Below 1 Ω

G6-3 (+B) - G6-1 (GND1)

LA-B - W-B

Power source (+B)

Power switch off

11 to 14 V

G6-4 (+B1) - G6-1 (GND1)

R - W-B

Power source (+B)

Power switch off

11 to 14 V

G6-5 (TX1+)

B

AVC-LAN communication signal

-

-

G6-6 (TX1-)

W

AVC-LAN communication signal

-

-

G6-10 (AGND) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

G6-11 (VAL+) - G6-13 (VA-)

B - R

Sound signal (Left)

External device playing (When stereo jack used)

A waveform synchronized with sound signals is output

G6-12 (VAR+) - G6-13 (VA-)

W - R

Sound signal (Right)

External device playing (When stereo jack used)

A waveform synchronized with sound signals is output

G6-13 (VA-) - G6-1 (GND1)

R - W-B

Ground

Always

Below 1 V

G6-14 (ADPG) - G6-1 (GND1)

L - W-B

External device connection detection signal

External device connected

Below 1 V

External device not connected

1.1 to 1.9 V

G6-15 (ACC1) - G6-1 (GND1)

GR - W-B

Power source (ACC)

Power switch off

Below 1 V

Power switch on (ACC)

11 to 14 V

G6-16 (ACC) - G6-1 (GND1)

R - W-B

Power source (ACC)

Power switch on (ACC)

11 to 14 V

Power switch off

Below 1 V

G6-17 (TX2+)

B

AVC-LAN communication signal

-

-

G6-18 (TX2-)

W

AVC-LAN communication signal

-

-

G6-21 (SW1) - G6-24 (SWG)

R - BR

Steering pad switch signal

No switch pushed

2.97 to 3.56 V

Seek+ switch pushed

0.27 to 0.35 V

Seek- switch pushed

0.86 to 1.03 V

Volume+ switch pushed

1.51 to 1.79 V

Volume- switch pushed

2.22 to 2.66 V

G6-22 (SW2) - G6-24 (SWG)

G - BR

Steering pad switch signal

No switch pushed

2.97 to 3.56 V

MODE switch pushed

0.27 to 0.35 V

On/off hook switch pushed

1.51 to 1.79 V

Voice switch pushed

2.22 to 2.66 V

G6-24 (SWG) - Body ground

BR - Body ground

Steering pad switch ground

Always

Below 1 Ω

G6-25 (MUT1) - G6-1 (GND1)

G - W-B

Mute signal

Audio system playing

2.0 V or higher

Audio system changing modes

Below 1 V

G6-27 (SPD) - G6-1 (GND1)

BE - W-B

Vehicle speed signal

See "Check Vehicle Signal" in Operation Check

Click here

-

G4-1 (VMTF) - G6-1 (GND1)

G - W-B

Visual mute signal

Power switch on (ACC) Screen display changing

3.5 V or higher → Below 1 V → 3.5 V or higher

G4-5 (CNH1)

L

Local bus communication signal

-

-

G4-6 (CNL1)

W

Local bus communication signal

-

-

G4-13 (CANH)

B

CAN communication signal

-

-

G4-14 (CANL)

W

CAN communication signal

-

-

G4-15 (ILL+) - G6-1 (GND1)

G - W-B

Illumination signal

Light control switch off

Below 1 V

Power switch off

Light control switch in tail or head position

11 to 14 V

G4-16 (ILL-) - G6-1 (GND1)

B - W-B

Illumination signal

Light control switch off

Below 1 V

Light control switch in tail or head position

Pulse generation

G4-19 (IG) - G6-1 (GND1)

SB - W-B

Power source (IG)

Power switch off

Below 1 V

Power switch on (IG)

11 to 14 V

G4-21 (MIN+) - G6-1 (GND1)

P - W-B*1

W - W-B*2

Microphone voice signal

See "Check Microphone" in Operation Check

Click here

-

G4-22 (MIN-) - G6-1 (GND1)

L - W-B*1

R - W-B*2

Microphone voice signal

See "Check Microphone" in Operation Check

Click here

-

G4-23 (MACC) - G6-1 (GND1)*2

B - W-B

Microphone power supply

Power switch off

Below 1 V

Power switch on (ACC)

4 to 6 V

G4-24 (SGND) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

G4-25 (SNS2) - G6-1 (GND1)

W - W-B

Microphone connection detection signal

Always

Below 1 V

G112-1 (USV1)

-

Power source

-

-

G112-2 (US1-)

-

Data signal

-

-

G112-3 (US1+)

-

Data signal

-

-

G112-4 (UGD1)

-

Ground

-

-

G112-5 (USG1)

-

Shield ground

-

-

G119-1 (USB+)*1

-

Data signal

-

-

G119-2 (USB-)*1

-

Data signal

-

-

G119-3 (USBS)*1

-

Ground

-

-

G111-1 (GVIF-)

-

Video signal (Digital)

-

-

G111-2 (GVIF+)

-

Video signal (Digital)

-

-

G111-3 (GND)

Shielded

Shield ground

-

-

G2-10 (USBV) - G2-11 (USBG)*1

B - G

DCM (telematics transceiver) power supply

Power switch off

Below 1 V

Power switch on (ACC)

4.75 to 5.25 V

G2-11 (USBG) - Body ground*1

G

Ground

Always

Below 1 Ω

G2-12 (SGND) - Body ground*1

Shielded - Body ground

Shield ground

Always

Below 1 Ω

RA-5 (ANT+) - G6-1 (GND1)

- - W-B

Power source of antenna

Power switch on (ACC)

Radio switch on and FM or AM selected

11 to 14 V

  • *1: w/ Manual (SOS) Switch
  • *2: w/o Manual (SOS) Switch

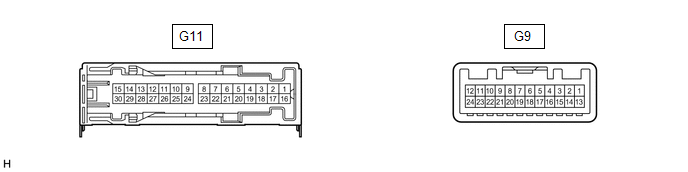

STEREO COMPONENT AMPLIFIER ASSEMBLY

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G11-1 (+B) - G11-3 (GND)*1

L - W-B

Power source (+B)

Power switch off

11 to 14 V

G11-2 (TMUT) - Body ground*2

BE - Body ground

Mute signal

Power switch on (ACC)

Audio system playing

2.0 V or higher

Emergency call mode

Below 1 V

G11-3 (GND) - Body ground

W-B - Body ground

Ground

Always

Below 1 Ω

G11-4 (WFL+) - G11-3 (GND)

LG - W-B

Sound signal (Front Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-5 (WFR+) - G11-3 (GND)

R - W-B

Sound signal (Front Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-6 (WF1+) - G11-3 (GND)

BE - W-B

Sound signal (Woofer)

Audio system playing

A waveform synchronized with sound signals is output

G11-7 (CTR+) - G11-3 (GND)

G - W-B

Sound signal (Front Center)

Audio system playing

A waveform synchronized with sound signals is output

G11-8 (RL+) - G11-3 (GND)

B - W-B

Sound signal (Rear Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-9 (RR+) - G11-3 (GND)

P - W-B

Sound signal (Rear Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-10 (TWL+) - G11-3 (GND)*1

L - W-B

Sound signal (Front Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-11 (TWR+) - G11-3 (GND)*1

L - W-B

Sound signal (Front Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-12 (FL+) - G11-3 (GND)

GR - W-B

Sound signal (Front Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-13 (FR+) - G11-3 (GND)

B - W-B*2

P - W-B*3

Sound signal (Front Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-16 (+B2) - G11-3 (GND)

B - W-B

Power source (+B)

Power switch off

11 to 14 V

G11-17 (SPD) - G11-3 (GND)

GR - W-B

Vehicle speed signal

Power switch on (IG)

Wheel being rotated

Pulse generation

G11-18 (GND2) - Body ground

W-B - Body ground

Ground

Always

Below 1 Ω

G11-19 (WFL-) - G11-3 (GND)

P - W-B

Sound signal (Front Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-20 (WFR-) - G11-3 (GND)

SB - W-B

Sound signal (Front Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-21 (WF1-) - G11-3 (GND)

L - W-B

Sound signal (Woofer)

Audio system playing

A waveform synchronized with sound signals is output

G11-22 (CTR-) - G11-3 (GND)

W - W-B

Sound signal (Front Center)

Audio system playing

A waveform synchronized with sound signals is output

G11-23 (RL-) - G11-3 (GND)

Y - W-B

Sound signal (Rear Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-24 (RR-) - G11-3 (GND)

W - W-B

Sound signal (Rear Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-25 (TWL-) - G11-3 (GND)*1

W - W-B

Sound signal (Front Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-26 (TWR-) - G11-3 (GND)*1

R - W-B

Sound signal (Front Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-27 (FL-) - G11-3 (GND)

W - W-B

Sound signal (Front Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-28 (FR-) - G11-3 (GND)

W - W-B*2

V - W-B*3

Sound signal (Front Right)

Audio system playing

A waveform synchronized with sound signals is output

G9-1 (MUTE) - G11-3 (GND)

G - W-B

Mute signal

Power switch on (ACC)

Audio system playing

2.0 V or higher

Audio system changing modes

Below 1 V

G9-2 (L-) - G11-3 (GND)

G - W-B

Sound signal (Left)

Audio system playing

A waveform synchronized with sound signals is output

G9-3 (L+) - G11-3 (GND)

B - W-B

Sound signal (Left)

Audio system playing

A waveform synchronized with sound signals is output

G9-4 (R-) - G11-3 (GND)

R - W-B

Sound signal (Right)

Audio system playing

A waveform synchronized with sound signals is output

G9-5 (R+) - G11-3 (GND)

W - W-B

Sound signal (Right)

Audio system playing

A waveform synchronized with sound signals is output

G9-6 (SLD) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

G9-7 (TX-)

W

AVC-LAN communication signal

-

-

G9-8 (TX+)

B

AVC-LAN communication signal

-

-

G9-12 (ACC) - G11-3 (GND)

W - W-B

Power source (ACC)

Power switch off

Below 1 V

Power switch on (ACC)

11 to 14 V

G9-14 (II1-) - G11-3 (GND)

W - W-B

Voice signal

Voice guidance sounding

A waveform synchronized with voice signals is output

G9-15 (II1+) - G11-3 (GND)

B - W-B

Voice signal

Voice guidance sounding

A waveform synchronized with voice signals is output

G9-18 (SLD1) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

  • *1: for 17 Speakers
  • *2: w/ Manual (SOS) Switch
  • *3: w/o Manual (SOS) Switch

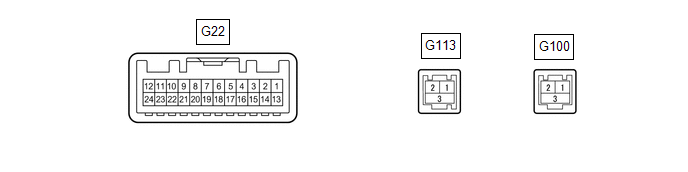

MULTI-DISPLAY ASSEMBLY

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G22-2 (ILL) - G22-13 (GND1)

LA-R - LA

Illumination signal

Light control switch off

Below 1 V

Power switch off

Light control switch in tail or head position

11 to 14 V

G22-6 (TX1+)

B

AVC-LAN communication signal

-

-

G22-7 (TX+)

B

AVC-LAN communication signal

-

-

G22-8 (V+) - G22-13 (GND1)*1

B - LA

Video signal

Power switch on (IG)

Shift lever in R

Camera lens not covered, displaying image

Pulse generation

(Refer to waveform 1)

Power switch on (IG)

Shift lever in R

Camera lens covered, blacking out screen

Pulse generation

(Refer to waveform 2)

G22-9 (V-) - G22-13 (GND1)*1

W - LA

Ground

Always

Below 1 V

G22-10 (CA+) - G22-21(CGND)*1

R - G

Rear television camera assembly power supply

Power switch on (ACC)

5.5 to 7.05 V

G22-11 (VMTI) - G22-13 (GND1)

G - LA

Visual mute signal

When image on display switches

3.5 V or higher

→ Below 1 V

→ 3.5 V or higher

G22-12 (B) - G22-13 (GND1)

R - LA

Power source (+B)

Power switch off

11 to 14 V

G22-13 (GND1) - Body ground

LA - Body ground

Ground

Always

Below 1 Ω

G22-18 (TX1-)

W

AVC-LAN communication signal

-

-

G22-19 (TX-)

W

AVC-LAN communication signal

-

-

G22-20 (CSLD) - Body ground*1

Shielded - Body ground

Shield ground

Always

Below 1 Ω

G22-21 (CGND) - Body ground*1

G - Body ground

Camera ground

Always

Below 1 Ω

G22-24 (ACC) - G22-13 (GND1)

GR - LA

Power source (ACC)

Power switch off

Below 1 V

Power switch on (ACC)

11 to 14 V

G113-1 (GVIF+)

-

Video signal (Digital)

-

-

G113-2 (GVIF-)

-

Video signal (Digital)

-

-

G113-3 (GND)

Shielded

Shield ground

-

-

G100-1 (GV+)*2

-

Video signal (Digital)

-

-

G100-2 (GV-)*2

-

Video signal (Digital)

-

-

G100-3 (GND)*2

Shielded

Shield ground

-

-

  • *1: w/ Parking Assist Monitor System
  • *2: w/ Panoramic View Monitor System

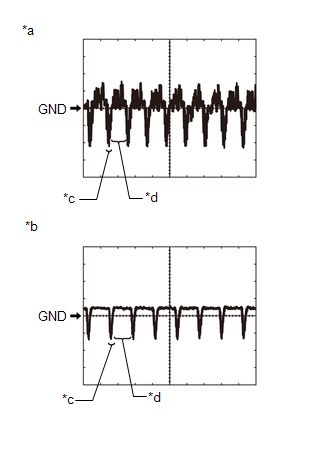

(a) Reference (Oscilloscope waveform):

(w/ Parking Assist Monitor System)

(1) Waveform 1 (camera lens not covered, displaying an image)

Item

Content

Measurement terminal

G22-8 (V+) - G22-13 (GND1)

Measurement setting

200 mV/DIV., 50 μs/DIV.

Condition

Power switch on (IG), shift lever in R

HINT:

  • The video waveform changes according to the image sent by the rear television camera assembly.
  • The video waveform is constantly output when the power switch is on (ACC).

*a

Waveform 1 (camera lens is not covered, displaying an image)

*b

Waveform 2 (camera lens is covered, blacking out the screen)

*c

Synchronization Signal

*d

Video Waveform

(2) Waveform 2 (camera lens covered, blacking out the screen)

Item

Content

Measurement terminal

G22-8 (V+) - G22-13 (GND1)

Measurement setting

200 mV/DIV., 50 μs/DIV.

Condition

Power switch on (IG), shift lever in R

HINT:

  • The video waveform changes according to the image sent by the rear television camera assembly.
  • The video waveform is constantly output when the power switch is on (ACC).

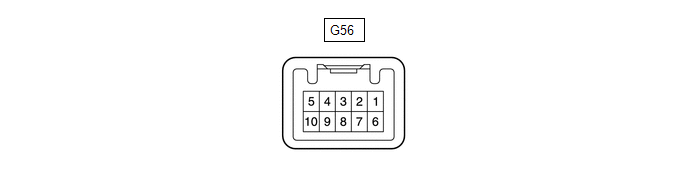

REMOTE TOUCH (REMOTE OPERATION CONTROLLER ASSEMBLY)

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G56-1 (+B) - G56-10 (GND)

R - LA

Power source (+B)

Power switch off

11 to 14 V

G56-2 (ILL+) - G56-10 (GND)

SB - LA

Illumination signal

Light control switch off

Below 1 V

Power switch off

Light control switch in tail or head position

11 to 14 V

G56-5 (ILL-) - G56-10 (GND)

GR - LA

Illumination signal

Light control switch off

Below 1 V

Light control switch in tail or head position

Pulse generation

G56-6 (ACC) - G56-10 (GND)

P - LA

Power source (ACC)

Power switch off

Below 1 V

Power switch on (ACC)

11 to 14 V

G56-8 (MO-)

W

Local bus communication signal

-

-

G56-9 (MO+)

B

Local bus communication signal

-

-

G56-10 (GND) - Body ground

LA - Body ground

Ground

Always

Below 1 Ω

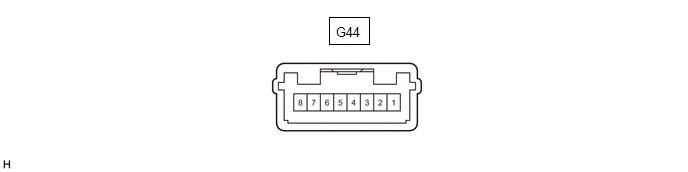

CLOCK ASSEMBLY

Terminal No.

(Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G44-1 (B) - G44-7 (E)

LA-L - W-B

Power source (+B)

Power switch off

11 to 14 V

G44-2 (ACC) - G44-7 (E)

R - W-B

Power source (ACC)

Power switch off

Below 1 V

Power switch on (ACC)

11 to 14 V

G44-5 (TX+1)

P

Local bus communication signal

-

-

G44-6 (TX-1)

W

Local bus communication signal

-

-

G44-7 (E) - Body ground

W-B - Body ground

Ground

Always

Below 1 V

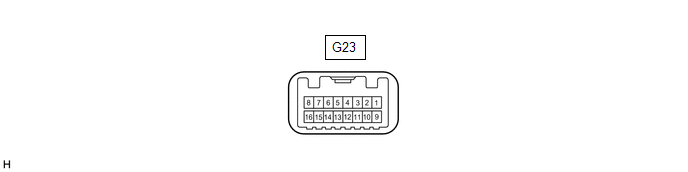

AIR CONDITIONING CONTROL ASSEMBLY

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G23-1 (TX1+)

B

AVC-LAN communication signal

-

-

G23-2 (TX1-)

W

AVC-LAN communication signal

-

-

G23-4 (E) - Body ground

W-B - Body ground

Ground

Always

Below 1 V

G23-7 (ACC) - G23-4 (E)

P - W-B

Power source (ACC)

Power switch off

Below 1 V

Power switch on (ACC)

11 to 14 V

G23-8 (IG+) - G23-4 (E)

R - W-B

Power source (IG)

Power switch on (IG)

11 to 14 V

Power switch off

Below 1 V

G23-16 (+B) - G23-4 (E)

GR - W-B

Power source (+B)

Power switch off

11 to 14 V

DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch)

Click here

COMBINATION METER ASSEMBLY

Click here

PARKING ASSIST ECU (w/ Panoramic View Monitor System)

Click here

REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)

Click here

READ NEXT:

 Sending Malfunction (Navigation to APGS) (U0073,U0100,U0129,U0140,U0155,U0164,U0198,U023B,U0265,U0293,U1110)

DESCRIPTION These DTCs are stored when a malfunction occurs in the CAN communication circuit. DTC No. Detection Item DTC Detection Condition Trouble Area U0073 Sending Malfunction (Navi

 USB Audio System Recognition/Play Error

DESCRIPTION When a USB device or "iPod" is connected to the USB jack of the No. 1 stereo jack adapter assembly, it must have playable files. The device must also communicate with and be recognized by

 Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter

DESCRIPTION The stereo component amplifier assembly receives a vehicle speed signal from the combination meter assembly to control the ASL function. HINT: A voltage of 12 V or 5 V is output from ea

SEE MORE:

 Television Camera (for Front)

ComponentsCOMPONENTS ILLUSTRATION *1 COOL AIR INTAKE DUCT SEAL *2 FRONT TELEVISION CAMERA ASSEMBLY InstallationINSTALLATION PROCEDURE 1. INSTALL FRONT TELEVISION CAMERA ASSEMBLY (a) Engage the 2 guides. (b) Install the front television camera assembly with the 2 screws. (c) Connect th

 Installation

INSTALLATION CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. PROCEDURE 1. INSTALL REAR SUSPENSION ARM BRACKET (a) Temporarily install the rear suspension arm bracket to the rear trailing arm assembly with the bo

© 2016-2023 Copyright www.lexguide.net
